Batteridrivet pressverktyg för presshuvud och pressbackar

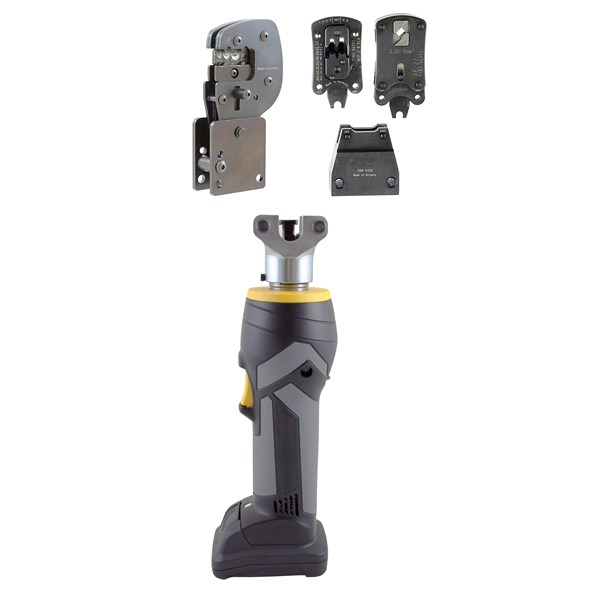

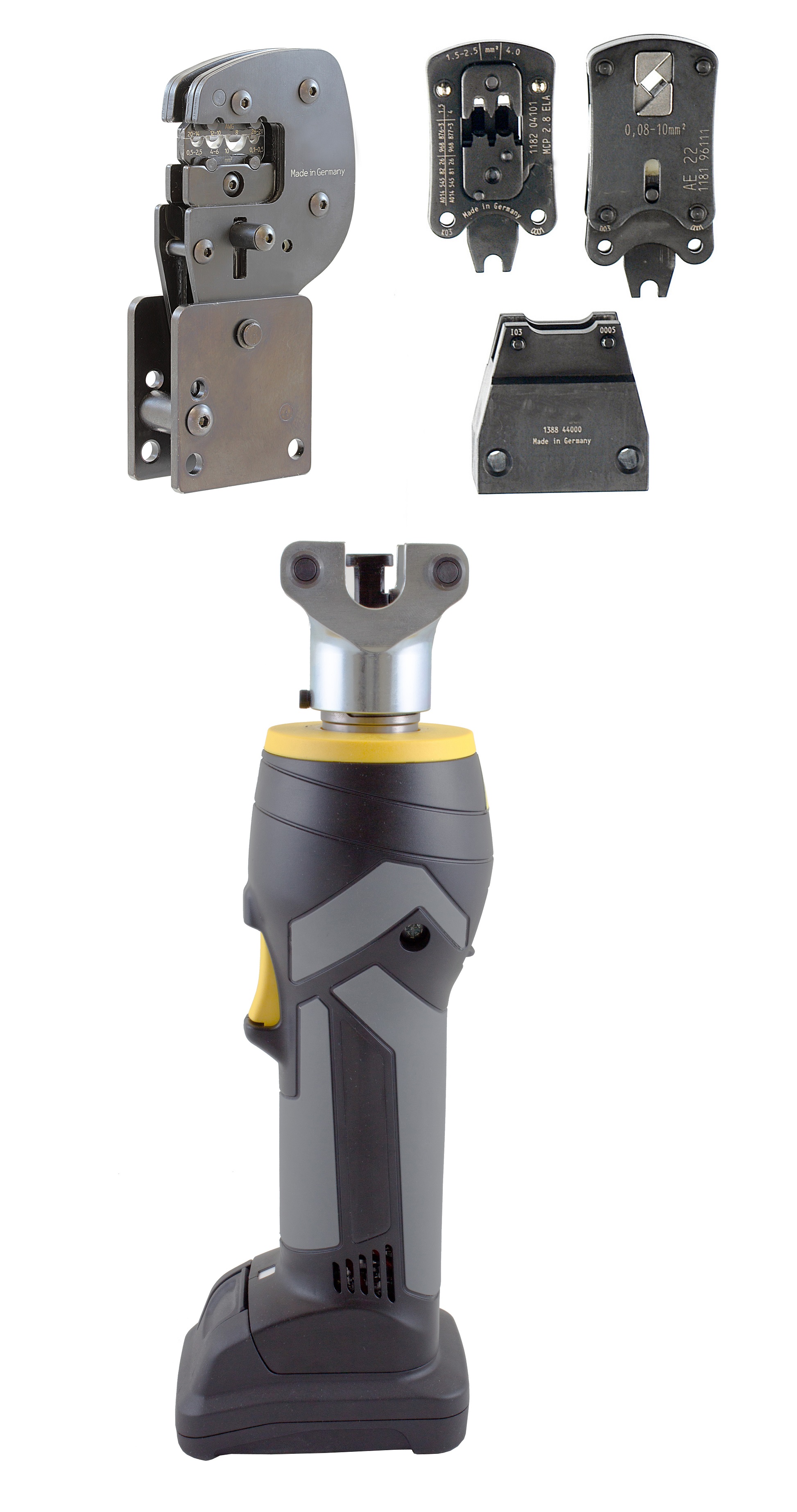

CS 150 är ett batteridrivet pressverktyg med ett 90° vridbart huvud. Verktyget levereras med batteri och batteriladdare i en stryktålig plastväska.

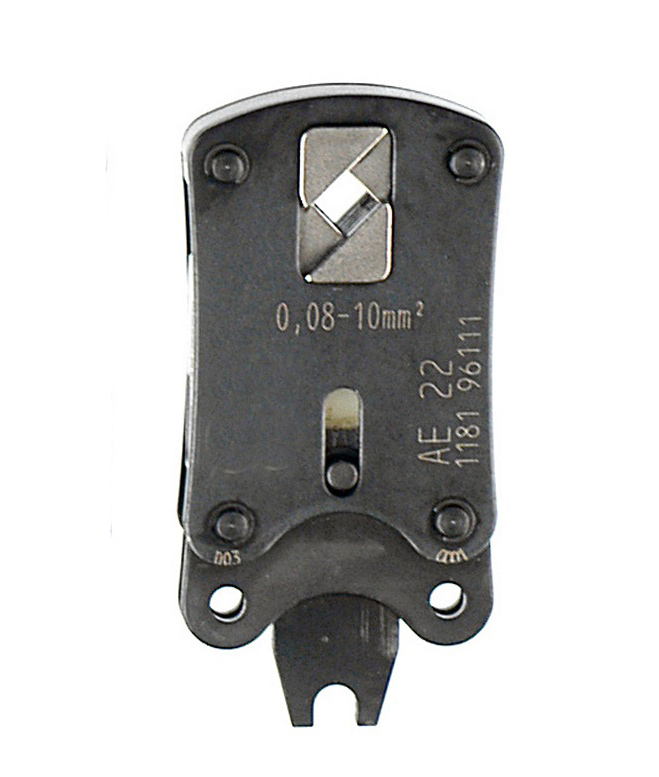

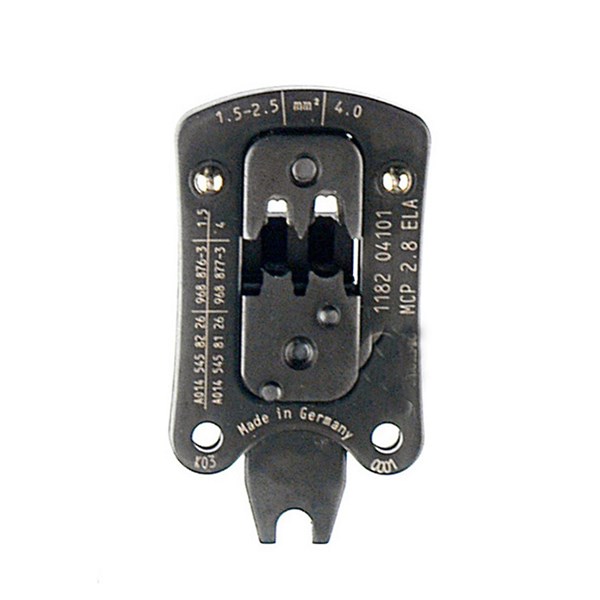

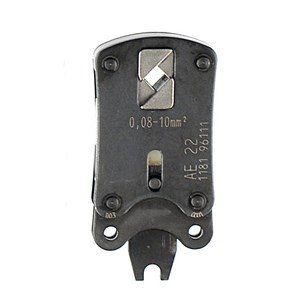

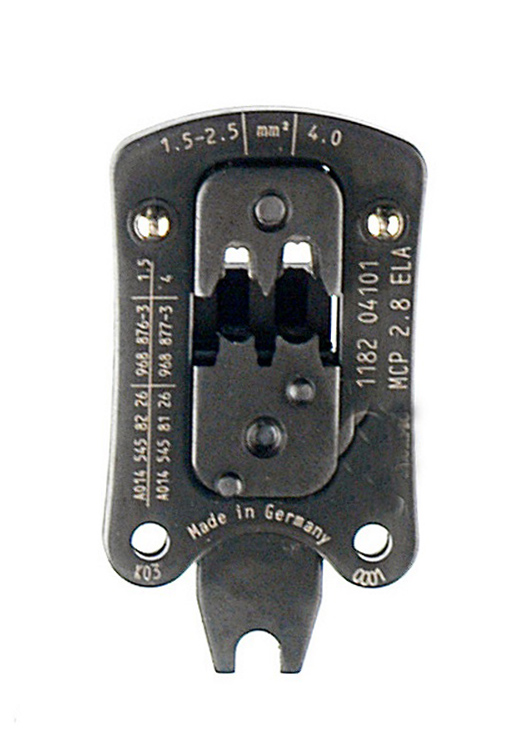

Grundverktyget skall kompleteras med någon av nedan tillbehör. CSE 30 presshuvud som sedan kan bestyckas med en CS30 pressback. CS30 backar finns till ex. i följande verktygsserier: NRB, NSA, NKB & NWB. CS 200 Adapter som sedan kan hålla en CSV-back eller 1142-back.
Batteri: Vikt: 1.3 kg
Presstid: ca 2 sekunder
Presskraft: 1.5 ton (13 kN)
Kapacitet: ca 150 pressningar per laddning
Laddtid: 40 min
Arbetstemperatur: -20° C till +40° C
Technical properties
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Suitable for:
- Various applications
- Construction/operation:
- Accumulator-hydraulic
- For component:
- End sleeves, Turned contacts, Deutsch, Shrink terminals, Insulated terminals, Non-insulated terminals, roller compaction, Coaxial, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås, D-Sub, Plastdon
- Compression shape:
- Oval pressing, Universal (exchangeable inserts)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CS 150_Manual
Dimensions
- Total: 3
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| BATTERIDRIVET PRESSVERKTYG, BATTERI, LADDARE, I VÄSKA | 0.5-50 mm² | 1 . | pcs | 320 mm |
No
|
|
|
| ADAPTER TILL CS 150, C-FORM UTAN INSATS | 1 . | pcs |
Yes
|
|
|
||
| ADAPTER TILL CS 150, . | 1 . | pcs |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| BATTERIDRIVET PRESSVERKTYG, BATTERI, LADDARE, I VÄSKA |
No
|
|
|
| ADAPTER TILL CS 150, C-FORM UTAN INSATS |
Yes
|
|
|
| ADAPTER TILL CS 150, . |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BATTERIDRIVET PRESSVERKTYG, BATTERI, LADDARE, I VÄSKA | No | Yes | 0 . | No | 3 s | Various applications | Accumulator-hydraulic | Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated terminals, Non-insulated terminals, roller compaction, Coaxial, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås, D-Sub, Plastdon | Oval pressing, Universal (exchangeable inserts) |
No
|
|
|
| ADAPTER TILL CS 150, C-FORM UTAN INSATS |
Yes
|
|
|
|||||||||
| ADAPTER TILL CS 150, . |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Warranty | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BATTERIDRIVET PRESSVERKTYG, BATTERI, LADDARE, I VÄSKA | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
1 years | Battery Tools | CS150 |
No
|
|
|
| ADAPTER TILL CS 150, C-FORM UTAN INSATS | EC011822 - Accessories/spare parts for pliers and clamps | 9.0 | Accessories - Machines | CSE30 |
Yes
|
|
|
||
| ADAPTER TILL CS 150, . | EC011822 - Accessories/spare parts for pliers and clamps | 9.0 | 1 years | Accessories - Machines | CS200 |
Yes
|
|
|
- Total: 3
