360 view
SH 500 1000
KABELSAX, STEGMATAD, 1000V, MAX D=52mm
SH 500 1000
- Availability:
-
Yes
- Total: 1
Related items
Kabelsaxar stegmatade

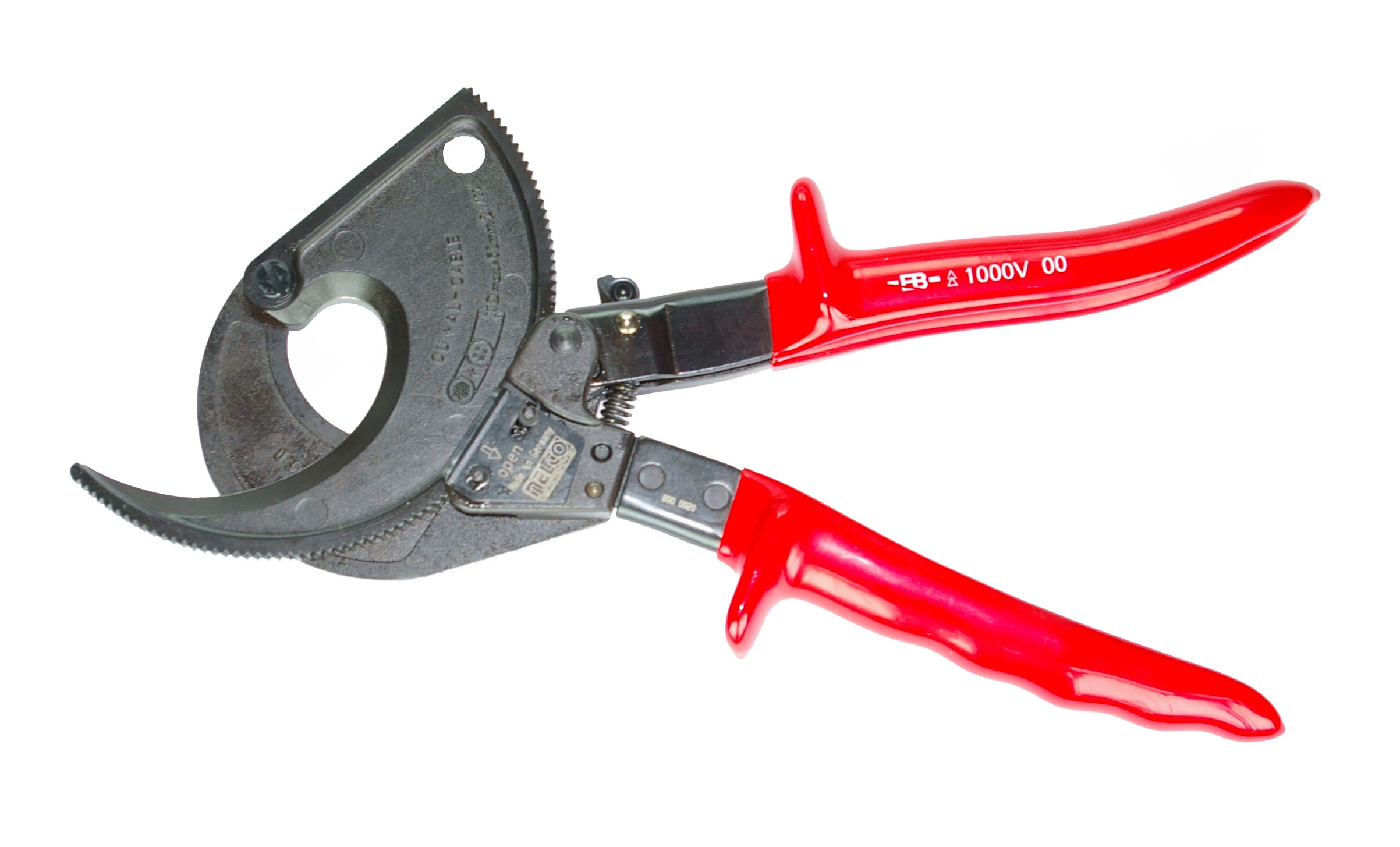

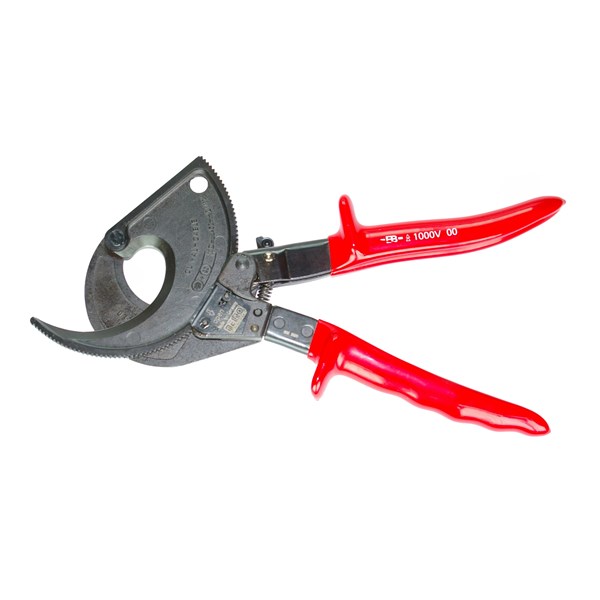

Cable cutter for copper and aluminum cable.Heavy-duty insulated handle for work up to 1000 V.
Cutting capacity multilayered / solid cable (diameter):SH 320: 32 mm / 20 mmSH 500: 52 mm / 35 mm
Length: SH 320: 265 mmSH 500: 290 mm
- Total: 1
E1621596
Product Properties
| Grip design | 1-component |
|---|---|
| With impact protection | No |
| Suitable for steel wire braiding | No |
| Replaceable cutting head | No |
| Cutting jaws exchangeable | No |
| With strip function | No |
| Insulated | Yes |
| Suitable for solid cores | Yes |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Construction/operation | Ratchet model mechanical |
| Isolation protection 1000 V | Yes |
| With spring | No |
Dimensions
| Max. cable cross section | 380 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Suitable for max. cable diameter | 52 mm |
| Total length | 290 mm |
Logistics
| Barcode | 733117641673 |
|---|---|
| Country of origin | DE |
| E-no | E1621596 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | SH 500 1000 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
| VDE tested | Yes |
|---|---|
| Isolation protection 1000 V | Yes |
Other info
| ETIM-Class | EC000142 - Cable shears |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Ratchet |
| Search Description | BLACKFRIDAY |
| Alternative SKU | SH5001000 |
Compliance
| RoHS | Not Applicable |
|---|
