2-handed (mechanical)
ME 80 / ME 150 / ME 250 / ME 500

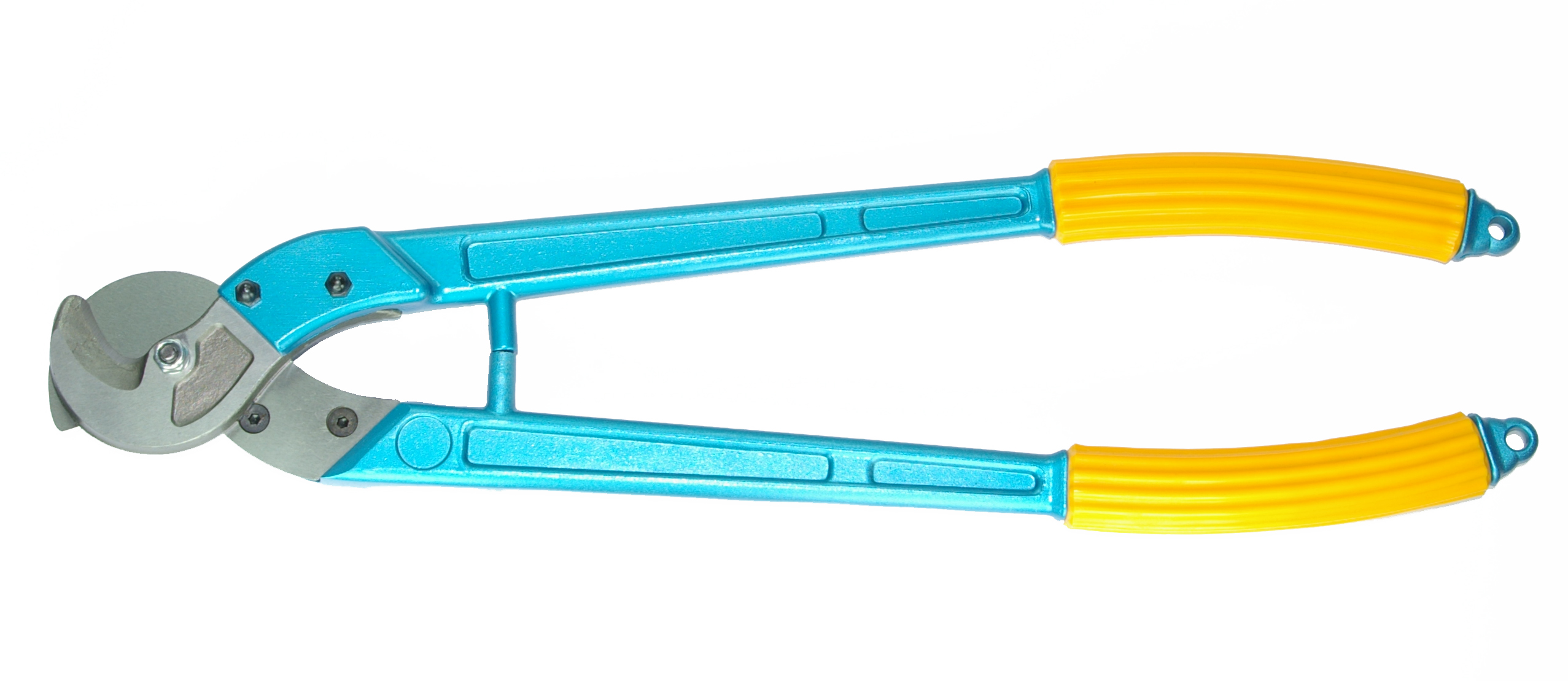

Cable cutter for copper cable that provides evencut without deforming the cable.The legs in blue metallic and yellow handles in vinyl.
Cutting capacity:ME 80: 80 mm²ME 150: 150 mm²ME 250: 250 mm²ME 500: 500 mm²
Length: 320 mm / 455 mm / 600 mm / 800 mm
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Mechanic two hands
- Isolation protection 1000 V:
- No
- With spring:
- No
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-80mm2, YELLOW HANDLE | 80 mm² | 1 . | pcs | 20 mm | 320 mm |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-250mm2, MAX D=? | 250 mm² | 1 . | pcs | 32 mm | 600 mm |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-500mm2, YELLOW HANDLE | 500 mm² | 1 . | pcs | 55 mm | 800 mm |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-80mm2, YELLOW HANDLE | No | No |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-250mm2, MAX D=? | No | No |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-500mm2, YELLOW HANDLE | No | No |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-80mm2, YELLOW HANDLE | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Mechanic two hands | No | No |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-250mm2, MAX D=? | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Mechanic two hands | No | No |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-500mm2, YELLOW HANDLE | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Mechanic two hands | No | No |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-80mm2, YELLOW HANDLE | EC000142 - Cable shears | 9.0 |
|
2-hand (mechanical) | ME80 |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-250mm2, MAX D=? | EC000142 - Cable shears | 9.0 |
|
2-hand (mechanical) | ME250 |
Yes
|
|
|
| CABLE CUTTER, 2-HANDEDN MECHANICAL 0.2-500mm2, YELLOW HANDLE | EC000142 - Cable shears | 9.0 |
|
2-hand (mechanical) | ME500 |
Yes
|
|
|
- Total: 3
