2-handed (Hydraulic) NHHT CC85

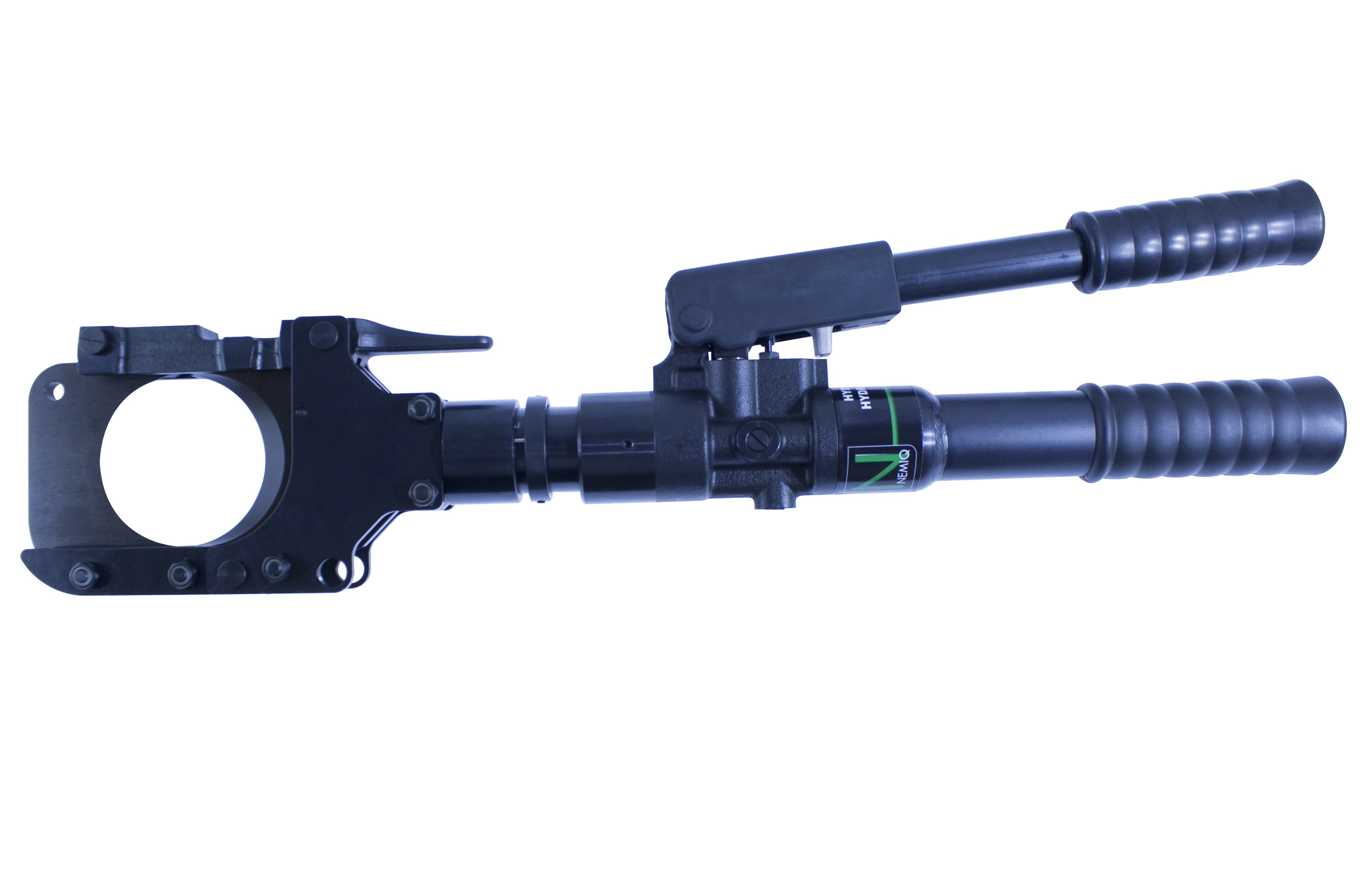

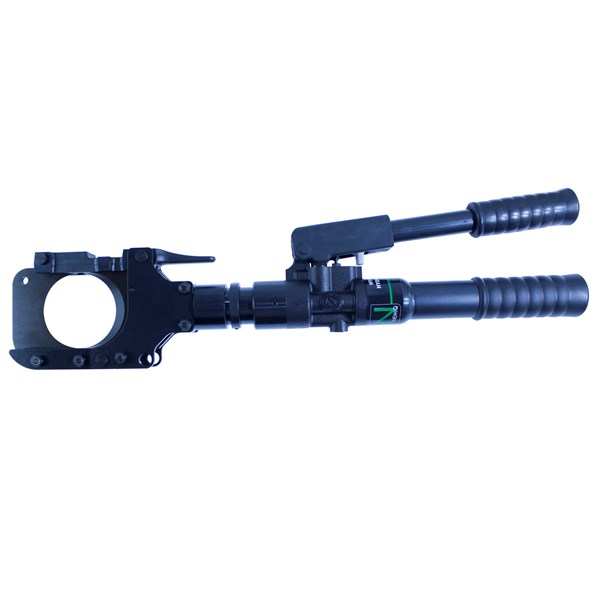

NHHT CC85 is an hand held hydraulic cable cutter for copper and aluminium cable.
The tool is equip with a automatic safety valve and a two step hydraulic system that helps and makes work more efficient for the operator.The head is rotatable 180º and releaseable.Delivered in an high quality case.
Cutting capacity (diameter): 85 mm
Length: 660 mm
Technical properties
- Grip design:
- 1-component
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hand hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- N/A
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
NHHT CC85_parts guide
Dimensions
- Total: 1
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDED, HYDRAULIC MAX D=85mm | 700 mm² | 1 . | pcs | 85 mm | 660 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDED, HYDRAULIC MAX D=85mm | No | No |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDED, HYDRAULIC MAX D=85mm | 1-component | No | No | Yes | Yes | No | Yes | Yes | Yes | Yes | Hand hydraulic | No | N/A |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, 2-HANDED, HYDRAULIC MAX D=85mm | EC000142 - Cable shears | 9.0 |
|
2-hand (hydraulic) | ENR2023V | NHHTCC85 |
Yes
|
|
|
