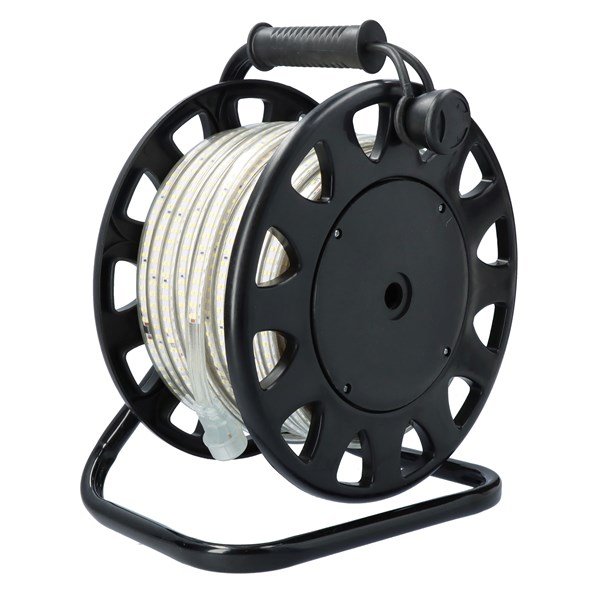

Work light LED strip on reel
LED strip work light in a robust design for outdoor/indoor use that withstands rough handling, wet conditions, and can be easily adjusted to suit all need. The LED strip comes with either a single or double row of diodes, double diodes provide increased power and increased brightness
Comes on a reel for easy roll-up and storage.
LED strip is dimmable and can be extended up to 100m.
To be used at construction sites , stairwells, elevator shafts, scaffolding, and corridors.
Note that it should not be connected while still in the box or rolled up.
Temperature range: -25º to +50º
CE and RoHS certification
Standard: EN 60595-1
LVD: 2014/35/EU
EMC: 2014/30/EU.
Technical properties
- Protection class according to IEC 61140:
- II
- Lamp type:
- LED not exchangeable
- Voltage type:
- AC
- Energy efficiency class of the built-in lamp:
- Other
- Max. system power:
- 100 W, 250 W, 80 W, 200 W
- Colour of light:
- White
- Colour temperature:
- 6000 K
- Colour rendering index CRI:
- 80-89
- Power factor:
- 0.9 .
- Number of poles:
- 2 .
- Luminaire efficacy:
- 120 lm/W, 110 lm/W
- Connection type:
- Other
- Self-adhesive:
- No
- Mounting method:
- Surface mounting
- With protective cover:
- Yes
- Degree of protection (IP):
- IP65
- Model:
- Hose
- Exchangeable control gear:
- Yes
- Colour of light adjustable:
- No
- Beam angle adjustable:
- No
- Luminous flux adjustable:
- No
- Number of nodes per meter:
- 240 ., 120 .
- Number of nodes per foot:
- 73 ., 37 .
- Lamp power per meter:
- 10 W, 8 W
- Lamp power per foot:
- 3.048 W, 2.4384 W
- Luminous flux per meter:
- 1200 lm, 880 lm
- Lamp voltage:
- 220-240 V
- Beam angle:
- 120 °
- Suitable for dimmer:
- Yes
- With end piece:
- Yes
- With connection set:
- Yes
Show more
Item List
- Total: 4
- Total: 4
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 4
| Product Description | Width | Conductor cross section | MOQ | Height/depth | Unit | Length | Beam angle | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| LED STRIP WORKLIGHT 10m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | 15 mm | 1.5 mm² | 1 . | 7 mm | pcs | 10000 mm | 120 ° |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | 15 mm | 1.5 mm² | 1 . | 7 mm | pcs | 25000 mm | 120 ° |
Yes
|
|
|
| LED STRIP WORKLIGHT 10m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | 15 mm | 1.5 mm² | 1 . | 7 mm | pcs | 10000 mm | 120 ° |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | 15 mm | 1.5 mm² | 1 . | 7 mm | pcs | 25000 mm | 120 ° |
Yes
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
| Product Description | Protection class according to IEC 61140 | Voltage type | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|---|
| LED STRIP WORKLIGHT 10m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | II | AC | IP65 |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | II | AC | IP65 |
Yes
|
|
|
| LED STRIP WORKLIGHT 10m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | II | AC | IP65 |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | II | AC | IP65 |
Yes
|
|
|
- Total: 4
Technical Properties
- Total: 4
| Product Description | Protection class according to IEC 61140 | Lamp type | Voltage type | Energy efficiency class of the built-in lamp | Max. system power | Colour of light | Colour temperature | Colour rendering index CRI | Power factor | Number of poles | Luminaire efficacy | Connection type | Self-adhesive | Mounting method | With protective cover | Degree of protection (IP) | Model | Exchangeable control gear | Colour of light adjustable | Beam angle adjustable | Luminous flux adjustable | Number of nodes per meter | Number of nodes per foot | Lamp power per meter | Lamp power per foot | Luminous flux per meter | Lamp voltage | Beam angle | Suitable for dimmer | With end piece | With connection set | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LED STRIP WORKLIGHT 10m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | II | LED not exchangeable | AC | Other | 100 W | White | 6000 K | 80-89 | 0.9 . | 2 . | 120 lm/W | Other | No | Surface mounting | Yes | IP65 | Hose | Yes | No | No | No | 240 . | 73 . | 10 W | 3.048 W | 1200 lm | 220-240 V | 120 ° | Yes | Yes | Yes |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | II | LED not exchangeable | AC | Other | 250 W | White | 6000 K | 80-89 | 0.9 . | 2 . | 120 lm/W | Other | No | Surface mounting | Yes | IP65 | Hose | Yes | No | No | No | 240 . | 73 . | 10 W | 3.048 W | 1200 lm | 220-240 V | 120 ° | Yes | Yes | Yes |
Yes
|
|
|
| LED STRIP WORKLIGHT 10m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | II | LED not exchangeable | AC | Other | 80 W | White | 6000 K | 80-89 | 0.9 . | 2 . | 110 lm/W | Other | No | Surface mounting | Yes | IP65 | Hose | Yes | No | No | No | 120 . | 37 . | 8 W | 2.4384 W | 880 lm | 220-240 V | 120 ° | Yes | Yes | Yes |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | II | LED not exchangeable | AC | Other | 200 W | White | 6000 K | 80-89 | 0.9 . | 2 . | 110 lm/W | Other | No | Surface mounting | Yes | IP65 | Hose | Yes | No | No | No | 120 . | 37 . | 8 W | 2.4384 W | 880 lm | 220-240 V | 120 ° | Yes | Yes | Yes |
Yes
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| LED STRIP WORKLIGHT 10m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | EC002706 - Light ribbon-/hose/-strip | 9.0 |
|
Work lights | SKH2023TOBIAS1, ENR2023H | NWLD6000K09WSF-10-R |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, DOUBLE LED, REEL, 240V, 6000K, IP54, 10W/m | EC002706 - Light ribbon-/hose/-strip | 9.0 |
|
Work lights | SKH2023TOBIAS1, ENR2023H | NWLD6000K09WSF-25-R |
Yes
|
|
|
| LED STRIP WORKLIGHT 10m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | EC002706 - Light ribbon-/hose/-strip | 9.0 |
|
Work lights | SKH2023TOBIAS1, ENR2023H | NWLS6000K09WSF-10-R |
Yes
|
|
|
| LED STRIP WORKLIGHT 25m, SINGLE LED, REEL, 240V, 6000K, IP54, 8W/m | EC002706 - Light ribbon-/hose/-strip | 9.0 |
|
Work lights | SKH2023TOBIAS1, ENR2023H | NWLS6000K09WSF-25-R |
Yes
|
|
|
- Total: 4
