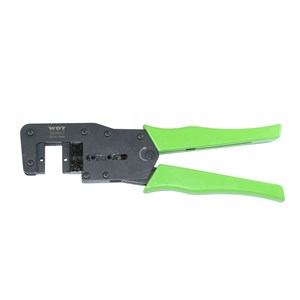

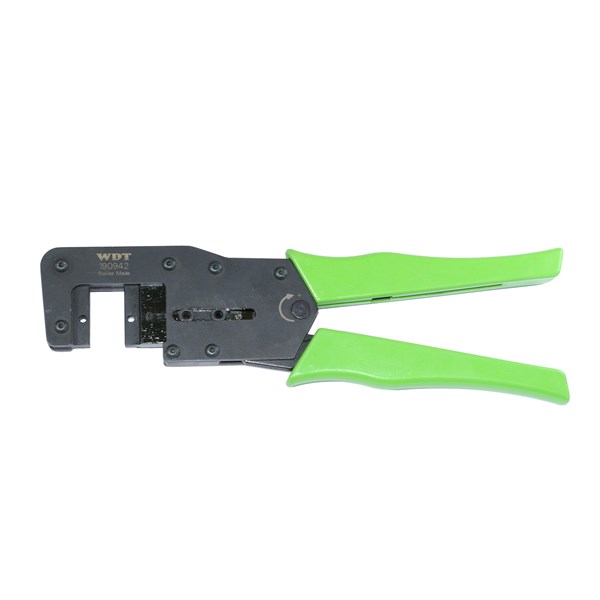

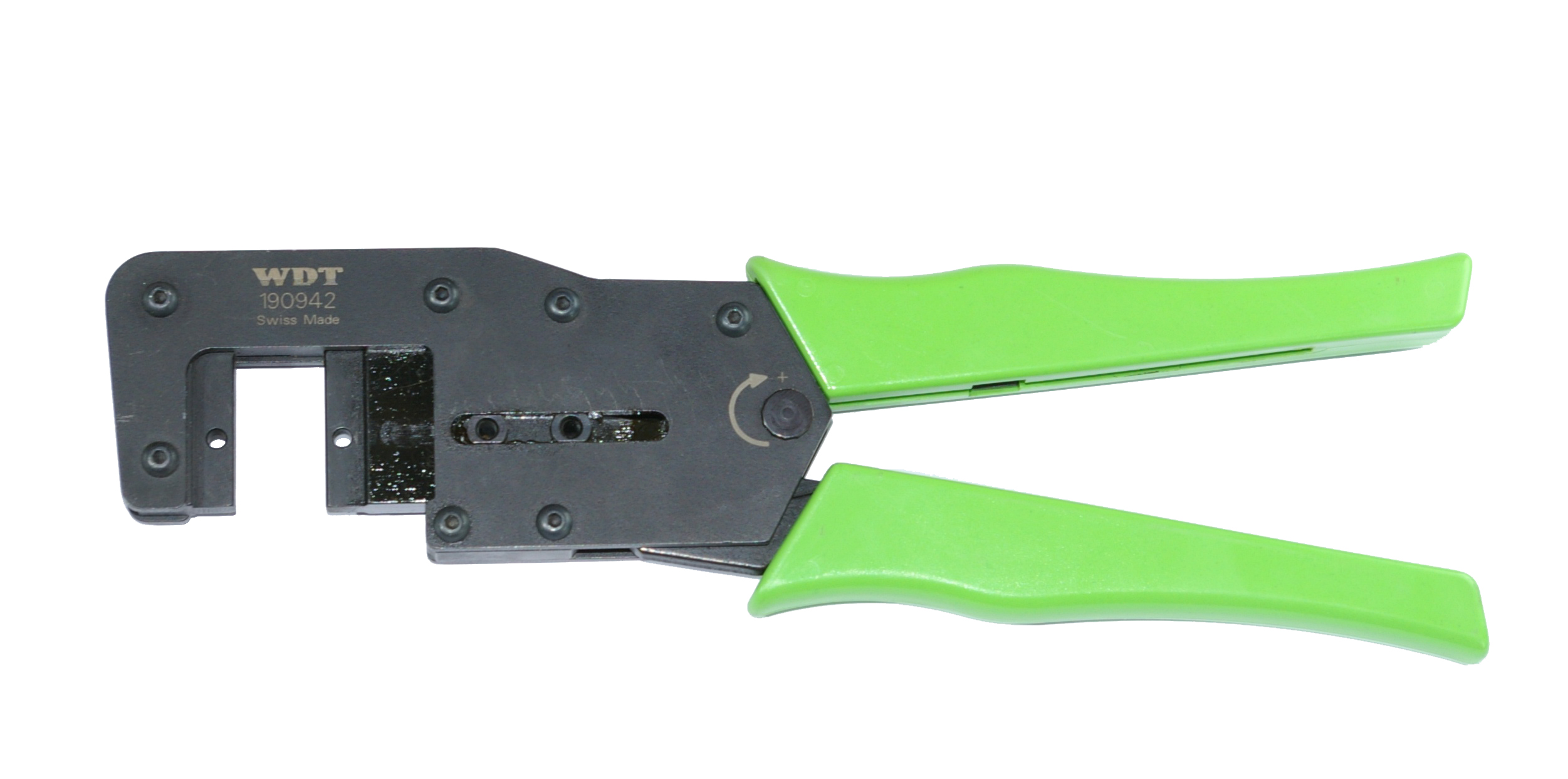

Crimp tool - WDT-Crimp dies
Grundverktyg från WDT för lösa backar.
Backarna/käftarna går helt parallellt och kraften är lika stor längst in som längst ut.
En ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
OBS! Pressbackar ingår ej.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Various applications
- Construction/operation:
- Mechanical
- For component:
- End sleeves, Turned contacts, Deutsch, Shrink terminals, Insulated terminals, Non-insulated Cu tube and sheet terminals
- Compression shape:
- Oval pressing, Trapezoid compression, Hexagon, Arbour clamping, Roll compression (shrinking)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RAM, FÖR WDT-BACKAR, PARALLELLKRIMP | 0.25-50 mm² | 1 . | pcs | 275 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG RAM, FÖR WDT-BACKAR, PARALLELLKRIMP |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RAM, FÖR WDT-BACKAR, PARALLELLKRIMP | Yes | Yes | 0 . | Yes | 2 s | Various applications | Mechanical | Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated terminals, Non-insulated Cu tube and sheet terminals | Trapezoid compression, Hexagon, Arbour clamping, Oval pressing, Roll compression (shrinking) |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RAM, FÖR WDT-BACKAR, PARALLELLKRIMP | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | 190942 |
Yes
|
|
|
- Total: 1
