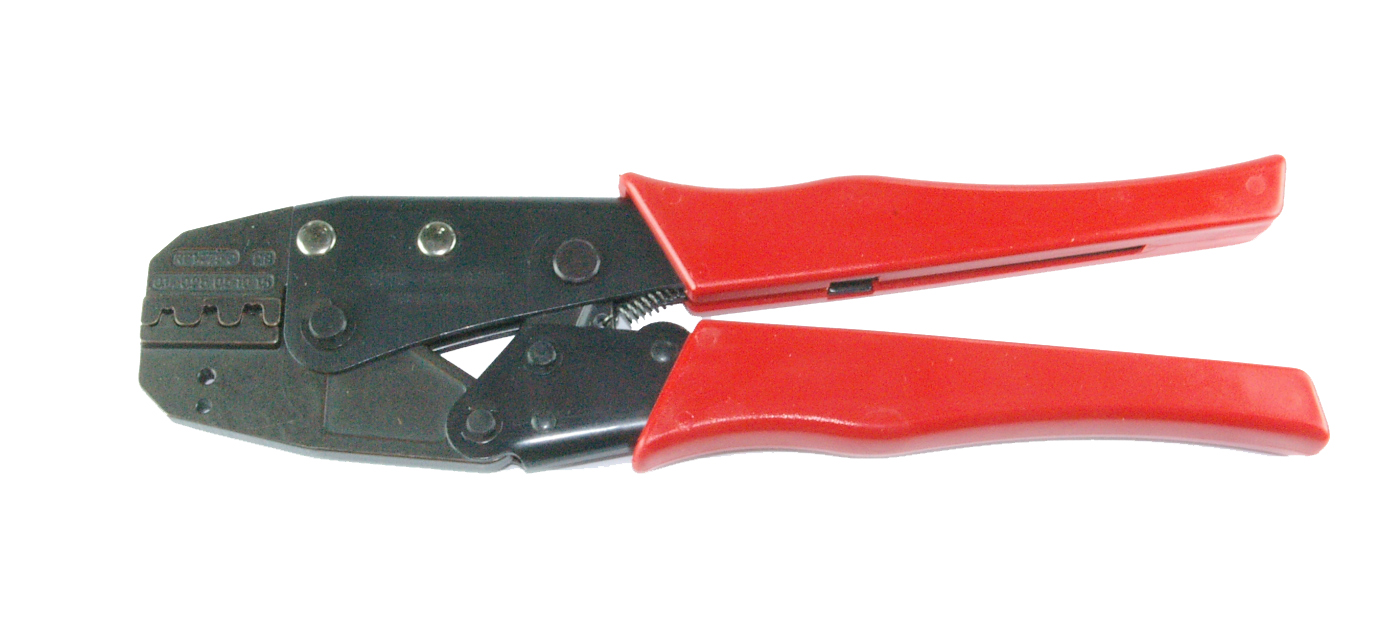

Crimp tool - RP/RQ
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated terminals, roller compaction, Non-insulated Cu tube and sheet terminals
- Compression shape:
- Roll compression (shrinking), Arbour clamping
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Cross section | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RULLPRESS, 0.14-0.75mm2 | 0.14-0.75 mm² | 1 . | pcs | 250 mm |
Yes
|
|
|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | 0.5-10 mm² | 1 . | pcs | 250 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| PRESSVERKTYG RULLPRESS, 0.14-0.75mm2 |
Yes
|
|
|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RULLPRESS, 0.14-0.75mm2 | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated terminals, roller compaction | Roll compression (shrinking) |
Yes
|
|
|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated Cu tube and sheet terminals | Arbour clamping |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| PRESSVERKTYG RULLPRESS, 0.14-0.75mm2 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | RP1475C |
Yes
|
|
|
|
| PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10mm², & OISOLERADE KABELSKOR 0.5-10mm². | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG RÖRKABELSKOR(KR/KS/KRT/KST) 0.5-10MM² | RQ0510C |
Yes
|
|
|
- Total: 2
