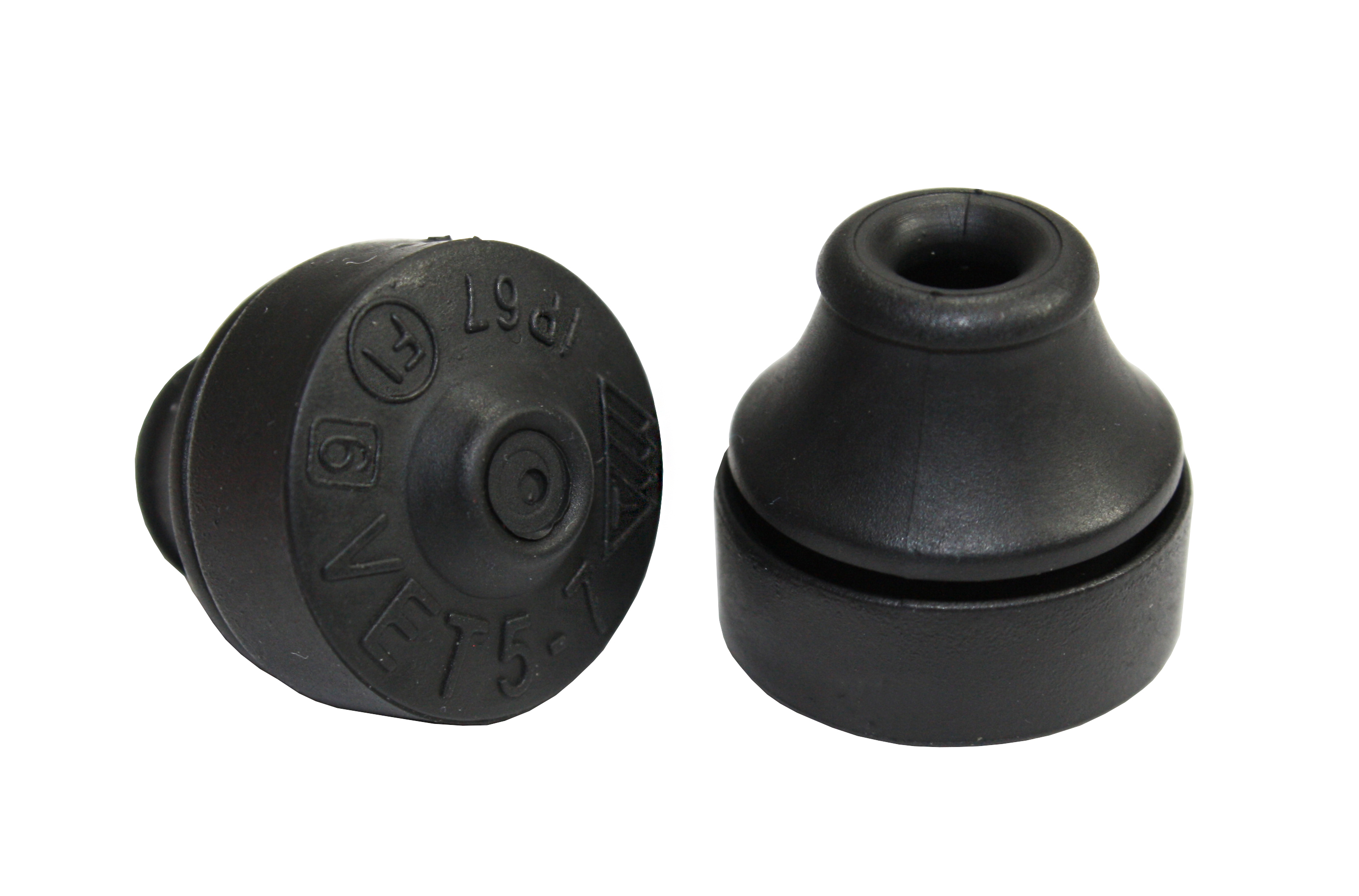

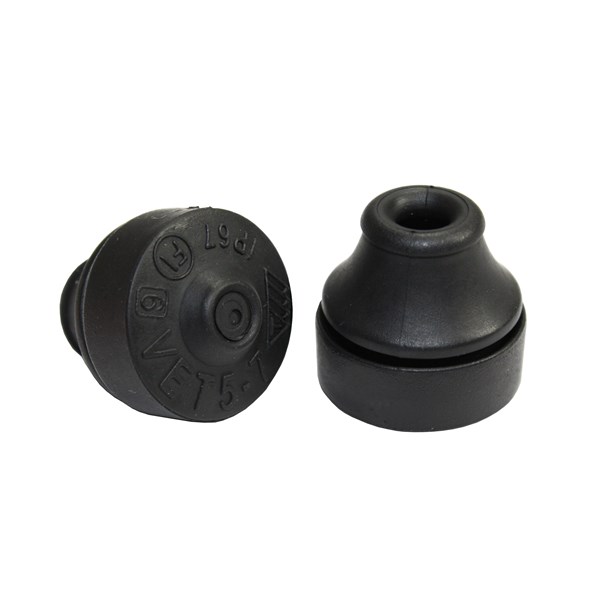

T-VET, Black
Grommets which both seals and locks. Locking by inserting the cable through the sleeve and then pull back the cable a few millimeters, where the rubber rolls back and locks the cable.
The thickness of the hole where the seal must be affixed can be 1.0-4.0 mm.
Protection: IP 67 within the specifies cable diameter(for both materials).
Material: Thermoplastic Elastomer (TPE).
Self-extinguishing.
Weather-resistant.
Temperature range: -40° C to +100° C
UL94 V-0.
Technical properties
- Gastight:
- No
- Degree of protection (IP):
- IP67
- Watertight:
- Yes
- Fire resistant:
- No
- Angle model:
- No
- With strain relief:
- No
- Model:
- Closed
- Material quality:
- Thermoplastic
- Shrink technique:
- No
- Insert for cable gland:
- No
- Cable entry:
- Round
- Colour:
- Black
- Surface protection:
- Untreated
- Material:
- Rubber
- Halogen free:
- Yes
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| T-VET-GROMMETS, TPE SEBS BLACK, PG9, 5-7mm, IP67 UL94 V-0 | 1000 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|
| T-VET-GROMMETS, TPE SEBS BLACK, PG9, 5-7mm, IP67 UL94 V-0 | IP67 |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Gastight | Degree of protection (IP) | Watertight | Fire resistant | Angle model | With strain relief | Model | Material quality | Shrink technique | Insert for cable gland | Cable entry | Colour | Surface protection | Material | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T-VET-GROMMETS, TPE SEBS BLACK, PG9, 5-7mm, IP67 UL94 V-0 | No | IP67 | Yes | No | No | No | Closed | Thermoplastic | No | No | Round | Black | Untreated | Rubber | Yes |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| T-VET-GROMMETS, TPE SEBS BLACK, PG9, 5-7mm, IP67 UL94 V-0 | EC000879 - Cable entry sleeve | 8.0 |
|
VET-grommets | 100187B, 100187 | T-VET5-7SVTPE |
Yes
|
|
|
- Total: 1
