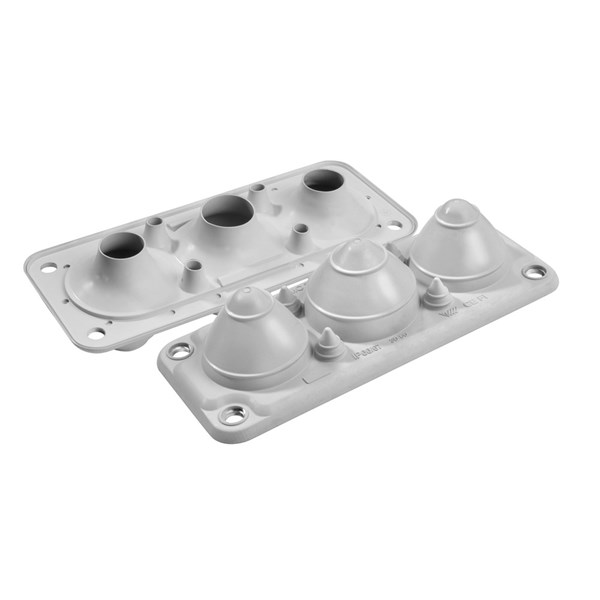

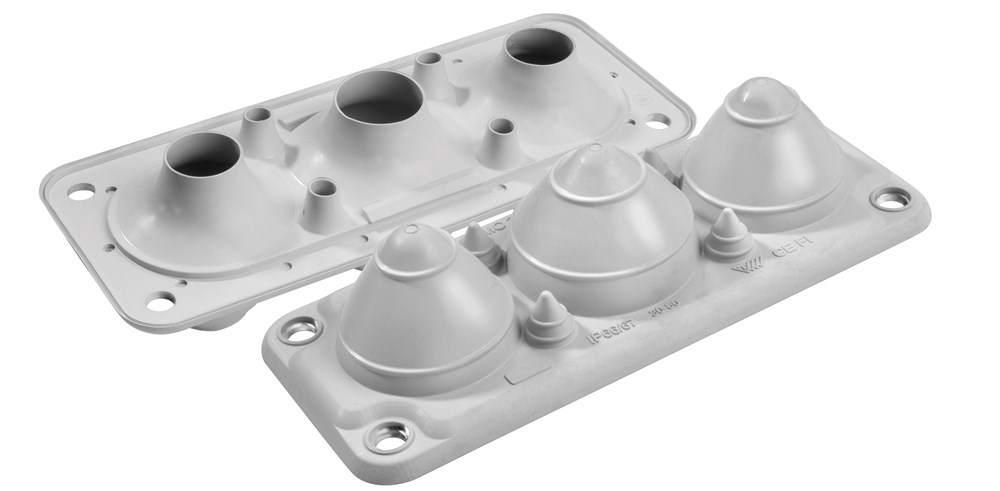

Multigate - MC 3-7
MC 3/7 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 3/7 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 3/7 Multigate is suitable for both outdoor and indoor use.
MC 3/7 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m.
MC 3/7 Multigate can be used instead of MC 3 Multigate. The configuration has the same openings than MC 3.
MC 3/7 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 3/7 Multigate will lead through and seal cables as follows:
24 - 54 mm 2 pcs
30 - 60 mm 1 pc
10 - 14 mm 4 pcs
Total of 7 cables
Technical properties
- Model:
- Other
- Type:
- Straight
- Thread type:
- Metric
- Pre-stamping:
- No
- Number of connector holes:
- 7 .
- Surface protection:
- Untreated
- Material:
- Rubber
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Trelleborg_Multigate
Dimensions
- Total: 4
| Product Description | Depth | Suitable for nominal thread metric/PG | Width | Height | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | 53 mm | 0 N/A | 222 mm | 76 mm | 60 . | pcs |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | 53 mm | 0 N/A | 222 mm | 76 mm | 480 . | pcs |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | 53 mm | 0 N/A | 222 mm | 76 mm | 60 . | pcs |
No
|
|
|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | 53 mm | 0 N/A | 222 mm | 76 mm | 60 . | pcs |
No
|
|
|
- Total: 4
Similar Options
Approvals
- Total: 4
- Total: 4
Technical Properties
- Total: 4
| Product Description | Model | Type | Thread type | Pre-stamping | Number of connector holes | Surface protection | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | Other | Straight | Metric | No | 7 . | Untreated | Rubber |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | Other | Straight | Metric | No | 7 . | Untreated | Rubber |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | Other | Straight | Metric | No | 7 . | Untreated | Rubber |
No
|
|
|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | Other | Straight | Metric | No | 7 . | Untreated | Rubber |
No
|
|
|
- Total: 4
Other information
- Total: 4
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | MEMBRANFLÄNS, FL21, IP66/67,7 UTTAG, MC 3/7 | 103580 |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 103576, MC 3/7, MEMBRANFLÄNS | 103576 |
No
|
|
|
| MULTIGATE, FL21, IP66/67, 7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 103577, MC 3/7, MEMBRANFLÄNS | 103577 |
No
|
|
|
| MULTIGATE, FL21, IP66/67,7 CABLES, MC 3/7 2x24-54mm, 1x30-60mm, 4x10-14mm | EC000211 - Gland plate for small distribution boards/switchgear cabinets | 9.0 |
|
Cable gland plates | 105041, MC 3/7, MEMBRANFLÄNS | 105041 |
No
|
|
|
- Total: 4
