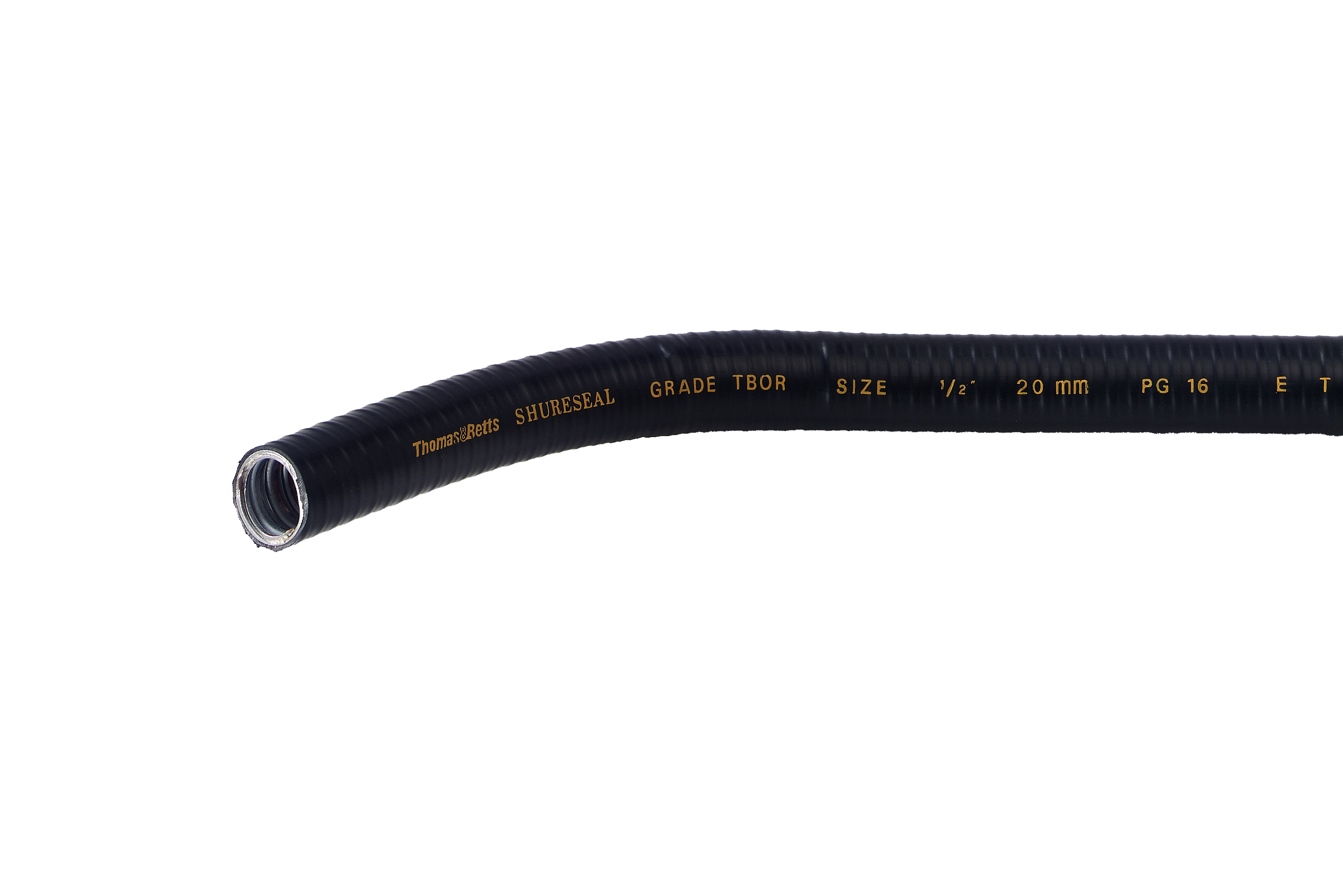

TBOR
TBOR används i miljöer där slangen utsätts för olja och fett. Slangens resistans mot dessa vätskor gör att den behåller sin flexibilitet och rörlighet även i dessa miljöer. Användning av annan typ än TBOR i oljiga miljöer kan göra slangen hård och yttermanteln kan spricka.
Konstruktion: Galvaniserad stålspiral med bomullspackning. Yttermantel av PVC.
Temperatur: Stationär -25° C till +105° C
Flexande -5° C till +105° C
Skyddsklass: IP 67 (med korrekt anslutna T&B kopplingar)
Provspänning: 2000 V
Isolationsresistans: 100 MOhm
Färg: Svart
Technical properties
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC), oil resistant
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -25-105 °C
- Material:
- Steel
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Nominal diameter | Nominal size in inch | Weight | MOQ | Unit | Inner diameter | Outer diameter | Bending radius, static | Bending radius, dynamic | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | 25 mm | 3/4 inch | 0.6 kg/m | 50 . | m | 21 mm | 26.4 mm | 90 mm | 90 mm |
Yes
|
|
|
| CONDUIT, BLACK 1" | 32 mm | 1 inch | 0.8 kg/m | 30 . | m | 26.5 mm | 33.1 mm | 110 mm |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved according to BWB | Approved according to VDE-EMV/emc | Approved according to FI | Degree of protection (IP) | Approved according to CSA | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | No | No | No | IP67 | No | No |
Yes
|
|
|
| CONDUIT, BLACK 1" | No | No | No | IP67 | No | No |
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Compressive strength | Bending strength | Tensile strength | Sheathing material 1st coating | Sheathing material 2nd coating (exterior) | Sealing | Suitable for EX-applications | Degree of protection (IP) | Colour | Surface protection | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC), oil resistant | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -25-105 °C | Steel |
Yes
|
|
|
| CONDUIT, BLACK 1" | 1250 N | Flexible | 1000 N | Polyvinyl chloride (PVC), oil resistant | Not sheathed | Special fibre sealing | No | IP67 | Black | Galvanised | -25-105 °C | Steel |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT WITH PVC -COVER, BLACK 3/4", ID=21.0mm, YD=26.4mm | EC001179 - Protective metallic hose | 9.0 |
|
Metal conduit | ANACONDA | TBOR0750-50 |
Yes
|
|
|
| CONDUIT, BLACK 1" | EC001179 - Protective metallic hose | 9.0 | Metal conduit | ANACONDA | TBOR1000-30 |
Yes
|
|
|
- Total: 2
