Skruvsocklar för buntband
TC 101 / TC 103-serien
Skruvsockel med hög flexibilitet.
Bandbredd: Upp till 4.8 mm (TC 101), 7.6 mm (TC 103)
Material: Polyamid 6.6
Temperaturområde: -40º C till +85º C
Brännbarhetsklass: UL 94 V-2
Färg: Naturell
Övrigt: Halogenfri, silikonfri
Fabrikat: Thomas & Betts
Technical properties
- Type of fastening:
- Screw/rivet
- Colour:
- Natural colour
- Material:
- Plastic
Show more
Accessories
Related products
Spare Parts
Product video
Documents

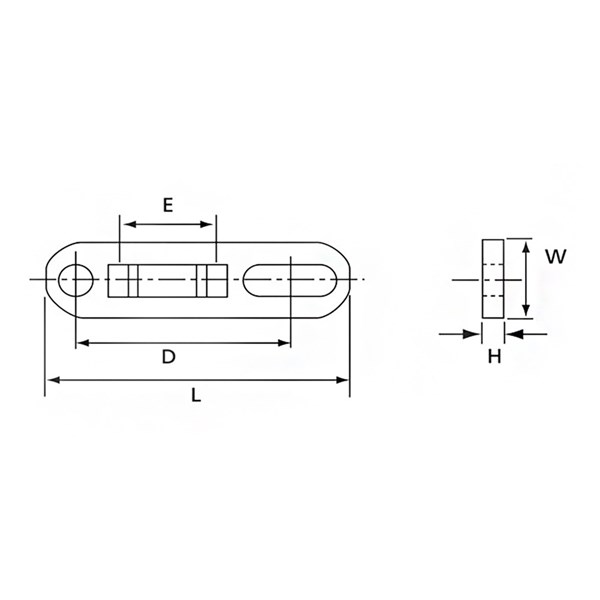

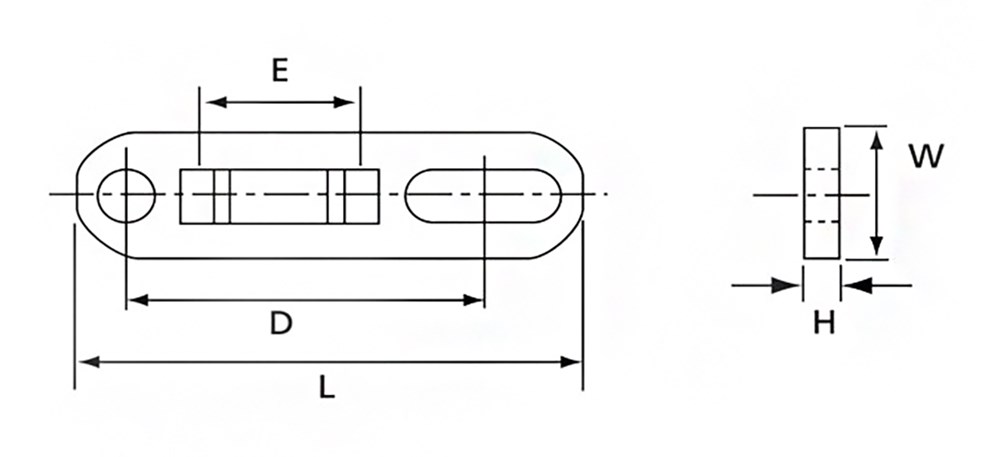

Dimensions
- Total: 2
| Product Description | D | E | Width | Height | Suitable for cable tie width to | Diameter mounting hole | MOQ | Unit | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, NATUR, . | 35.6 mm | 9.5 mm | 12.7 mm | 3.2 mm | 4.8 mm | 5.2 mm | 1000 . | pcs | 50 mm |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, . | 59.6 mm | 18.6 mm | 15.8 mm | 5.1 mm | 7.6 mm | 6.9 mm | 500 . | pcs | 79 mm |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Availability | ||
|---|---|---|---|
| BUNTBANDSFÄSTE, NATUR, . |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, . |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Type of fastening | Colour | Material | Availability | ||
|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, NATUR, . | Screw/rivet | Natural colour | Plastic |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, . | Screw/rivet | Natural colour | Plastic |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BUNTBANDSFÄSTE, NATUR, . | EC000449 - Mounting base and -element for cable ties | 7.0 |
|
Mounting base, screw mounted | TC101, 7TAG009880R0000 | TC101 |
Yes
|
|
|
| BUNTBANDSFÄSTE, NATUR, . | EC000449 - Mounting base and -element for cable ties | 7.0 |
|
Mounting base, screw mounted | TC103, 7TAG009880R0002 | TC103 |
No
|
|
|
