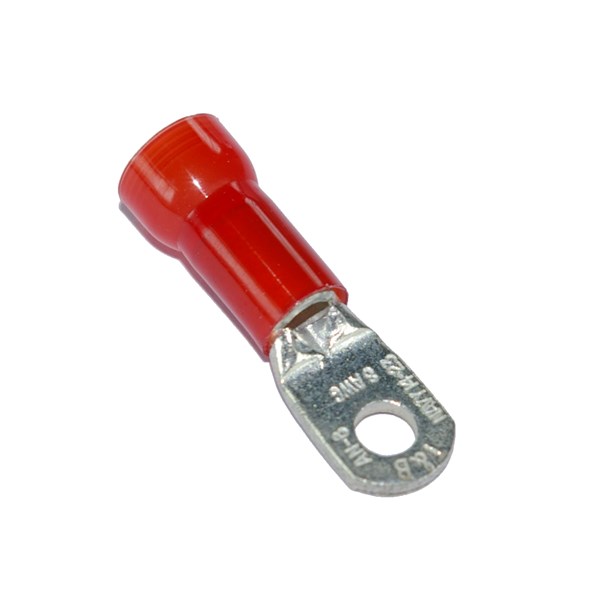

Ring terminals T&B-series
Brazed seam
Easy Entry
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A, 62 A, 88 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- Sleeve form:
- Short
- Suitable for solid cores:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No, Yes
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 5
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, 10, AWG 8, | 25 . | pcs | 8.4 mm² |
No
|
|
|
|
| INSULATED RING TERMINAL BLUE, 5/16", AWG 18-14, | 100 . | pcs | 8 . | 0.82-2.08 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 18-14, UL/CSA | 100 . | pcs | 10 . | 0.82-2.08 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, #12, AWG 18-14 | 100 . | pcs | 12 . | 0.82-2.08 mm² |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 6 | 20 . | pcs | 5 . | 13.3 mm² |
No
|
|
|
- Total: 5
Similar Options
Approvals
- Total: 5
| Product Description | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, 10, AWG 8, |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, 5/16", AWG 18-14, |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 18-14, UL/CSA |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, #12, AWG 18-14 |
|
|
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 6 |
|
|
No
|
|
|
- Total: 5
Technical Properties
- Total: 5
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, 10, AWG 8, | Yes | Yes | No | 62 A | Ring shape | No | Partially isolated | Red | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
| INSULATED RING TERMINAL BLUE, 5/16", AWG 18-14, | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 18-14, UL/CSA | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
| INSULATED RING TERMINAL BLUE, #12, AWG 18-14 | Yes | Yes | No | 27 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | -40-105 °C | Copper | 600V | No |
No
|
|
|
||
| INSULATED RING TERMINAL BLUE, M10, AWG 6 | Yes | Yes | No | 88 A | Ring shape | No | Partially isolated | Blue | Short | No | Yes | Yes | No | No | Yes | No | Tinned | Polyamide (PA) | According to UL94V0 | -40-105 °C | Copper | 600V | Yes |
No
|
|
|
- Total: 5
Other information
- Total: 5
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED RING TERMINAL RED, 10, AWG 8, | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | RD8-10, 7TAI029820R0047 | RD8-10 |
No
|
|
|
| INSULATED RING TERMINAL BLUE, 5/16", AWG 18-14, | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | RB14-516, 7TAI029820R0025 | RB14-516 |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 18-14, UL/CSA | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | RB14-38, 7TAI029820R0022 | RB14-38 |
No
|
|
|
| INSULATED RING TERMINAL BLUE, #12, AWG 18-14 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - PVC | ISOLERAD RINGKABELSKO | RB14-12 |
No
|
|
|
| INSULATED RING TERMINAL BLUE, M10, AWG 6 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Ring terminals - Polyamide | ISOLERAD RINGKABELSKO | RE6-10 |
No
|
|
|
- Total: 5
