204210 S

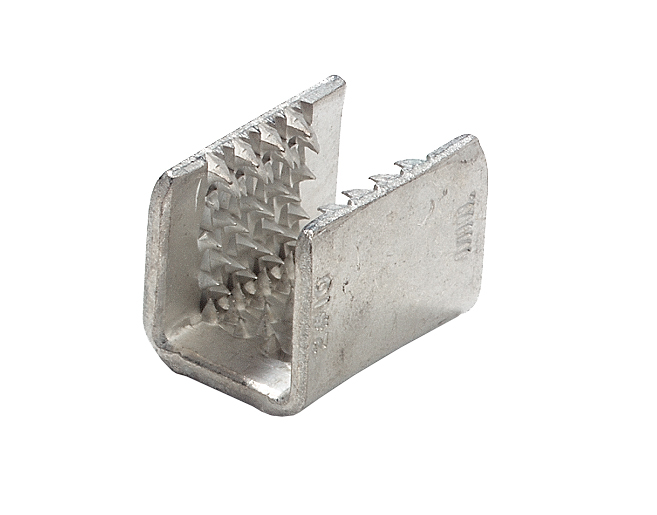

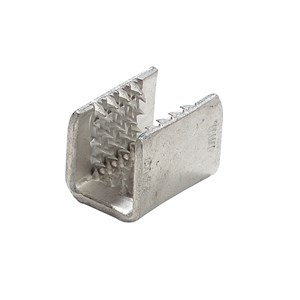

UNINSULATED BUTT SPLICE, DRAGON TEETH ROUND: 2.05-6.54mm2, RECTANGULAR: 2.50-4.10mm2
204210 S
- Availability:
-
Yes
Product Properties
| Model | Standard version |
|---|---|
| Number of branches | 0 N/A |
| Insulation | None |
| Colour insulation | N/A |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | No |
| Suitable for fine strand conductors | No |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | Yes |
| Suitable for round conductors | No |
| Suitable for flat conductors | Yes |
| For pull protected connections | No |
| Voltage level | Up to 35 kV |
| Type of connection | Other |
| Oil stop/centre bar | No |
| Surface protection | Tinned |
| Operating temperature | 110 °C |
| Material | Copper |
| Packaging | Loose piece |
Dimensions
| A | 17.5 mm |
|---|---|
| D | 13.5 mm |
| E | 6.3 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 2.05-6.54 mm² |
Logistics
| Barcode | 541436307708 |
|---|---|
| Country of origin | US |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | 204210 S |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001059 - Crimp splices for copper conductor |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Uninsulated Butt splices - Magnet wire splice |
| Search Description | 204210S, 7TAI029010R0002 |
| Alternative SKU | 204210S |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (Latest. 27 June 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
