LS, släta med låskula, med beläggning

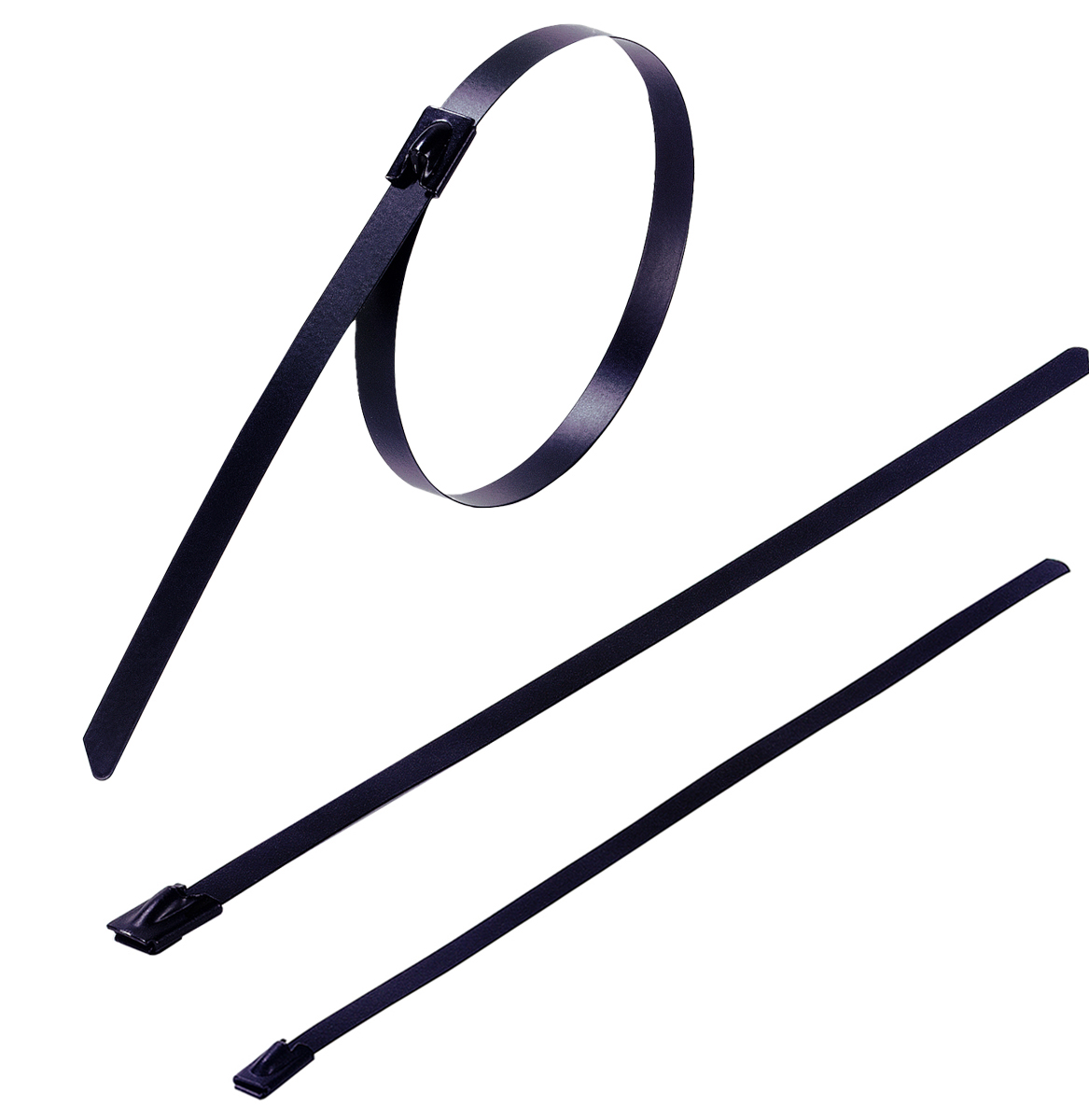

Self-locking stainless steel cable ties for use in or outside. The strong locking mechanism includes a steel balland it is easy to enter the back end that is dawning. This gives a simple, fast and safe installation.
The cable tie is also available with a halogen-free polyester coating which provides several advantages:
• The tie is easier to use, softer.
• Less risk of damage to the cable.
• Better insulation between dissimilar metals.
Technical properties
- Detectable:
- No
- Min. tensile strength:
- 440 N, 1110 N
- Model:
- Without toothing
- Material quality:
- Stainless steel 316 (V4A)
- Operating temperature:
- -80-150 °C
- Mounting temperature:
- -80-150 °C
- Band closure:
- Ball latch
- UV-stable acc. ASTM D6779:
- No
- Transparent:
- No
- Fluorescent:
- No
- Solvable fastener:
- No
- Text strip:
- None
- Type of fastening:
- None
- Colour:
- Black
- Surface protection:
- Plastic-coated
- Material:
- Metal
- Halogen free:
- Yes
- Packaging:
- Loose piece
- Max. tensile force:
- 440 N, 1110 N
Show more
Item List
- Total: 22
- Total: 22
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 22
| Product Description | Bundle diameter | MOQ | Unit | Length belt/tape/tie | Tie thickness | Band width | Max. bundle diameter | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 1000x4.6mm SS316, COATED | 20-300 mm | 100 . | pcs | 1000 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 100x4.6mm SS316, COATED | 20-25 mm | 100 . | pcs | 100 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED | 20-365 mm | 100 . | pcs | 1200 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 125x4.6mm SS316, COATED | 20-25 mm | 100 . | pcs | 125 mm | 0.36 mm | 4.6 mm | 440 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x4.6mm SS316, COATED | 20-425 mm | 100 . | pcs | 1400 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 150x4.6mm SS316, COATED | 20-35 mm | 100 . | pcs | 150 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | 20-50 mm | 100 . | pcs | 200 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | 20-100 mm | 100 . | pcs | 360 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | 20-150 mm | 100 . | pcs | 520 mm | 0.36 mm | 4.6 mm | 440 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | 20-200 mm | 100 . | pcs | 680 mm | 0.36 mm | 4.6 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 840x4.6mm SS316, COATED | 100 . | pcs | 840 mm | 0.36 mm | 4.6 mm | 250 mm | 440 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 100x7.9mm SS316, COATED | 20 mm | 100 . | pcs | 100 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED | 20-300 mm | 100 . | pcs | 1000 mm | 0.36 mm | 7.9 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED | 20-365 mm | 100 . | pcs | 1200 mm | 0.36 mm | 7.9 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 125x7.9mm SS316, COATED | 100 . | pcs | 125 mm | 0.36 mm | 7.9 mm | 22 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x7.9mm SS316, COATED | 20-425 mm | 100 . | pcs | 1400 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 150x7.9mm SS316, COATED | 20-35 mm | 100 . | pcs | 150 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | 20-50 mm | 100 . | pcs | 200 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | 20-100 mm | 100 . | pcs | 360 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | 20-150 mm | 100 . | pcs | 520 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
|
| STAINLESS STEEL CABLE TIE, 680x7.9mm SS316, COATED | 20-200 mm | 100 . | pcs | 680 mm | 0.36 mm | 7.9 mm | 1110 N |
No
|
|
|
|
| STAINLESS STEEL CABLE TIE, 840x7.9mm SS316, COATED | 20-250 mm | 100 . | pcs | 840 mm | 0.36 mm | 7.9 mm | 1110 N |
Yes
|
|
|
- Total: 22
Similar Options
Approvals
- Total: 22
- Total: 22
Technical Properties
- Total: 22
| Product Description | Detectable | Min. tensile strength | Model | Material quality | Operating temperature | Mounting temperature | Band closure | UV-stable acc. ASTM D6779 | Transparent | Fluorescent | Solvable fastener | Text strip | Type of fastening | Colour | Surface protection | Material | Halogen free | Packaging | Max. tensile force | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 1000x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 100x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 125x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 840x4.6mm SS316, COATED | No | 440 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 440 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 100x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 125x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 840x7.9mm SS316, COATED | No | 1110 N | Without toothing | Stainless steel 316 (V4A) | -80-150 °C | -80-150 °C | Ball latch | No | No | No | No | None | None | Black | Plastic-coated | Metal | Yes | Loose piece | 1110 N |
Yes
|
|
|
- Total: 22
Other information
- Total: 22
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| STAINLESS STEEL CABLE TIE, 1000x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-1000BC, 7TCG009420R0085 | LS4.6-1000C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 100x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-100BC, 7TCG009410R0012 | LS4.6-100C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-1200BC, 7TCG009420R0088 | LS4.6-1200C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 125x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-125BC, 7TCG009420R0089 | LS4.6-125C |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-1400BC, 7TCG009420R0092 | LS4.6-1400C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-150BC, 7TCG009410R0034 | LS4.6-150C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-200BC, 7TCG009420R0094 | LS4.6-200C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-360BC, 7TCG009420R0098 | LS4.6-360C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-520BC, 7TCG009420R0101 | LS4.6-520C |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 680x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-680BC, 7TCG009410R0022 | LS4.6-680C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 840x4.6mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-4.6-840BC, 7TCG009420R0104 | LS4.6-840C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 100x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-100BC, 7TCG009420R0109 | LS7.9-100C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1000x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-1000BC, 7TCG009420R0106 | LS7.9-1010C |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 1200x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-1200BC, 7TCG009420R0112 | LS7.9-1200C |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 125x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-125BC, 7TCG009420R0115 | LS7.9-125C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 1400x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-1400BC, 7TCG009420R0118 | LS7.9-1400C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 150x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-150BC, 7TCG009410R0024 | LS7.9-150C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 200x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-200BC, 7TCG009420R0122 | LS7.9-200C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 360x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-360BC, 7TCG009410R0030 | LS7.9-360C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 520x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-520BC, 7TCG009420R0124 | LS7.9-520C |
Yes
|
|
|
| STAINLESS STEEL CABLE TIE, 680x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-680BC, 7TCG009420R0126 | LS7.9-680C |
No
|
|
|
| STAINLESS STEEL CABLE TIE, 840x7.9mm SS316, COATED | EC000046 - Cable tie | 9.0 |
|
Cable ties, steel | YLS-7.9-840BC, 7TCG009420R0128 | LS7.9-840C |
Yes
|
|
|
