RB14-10F

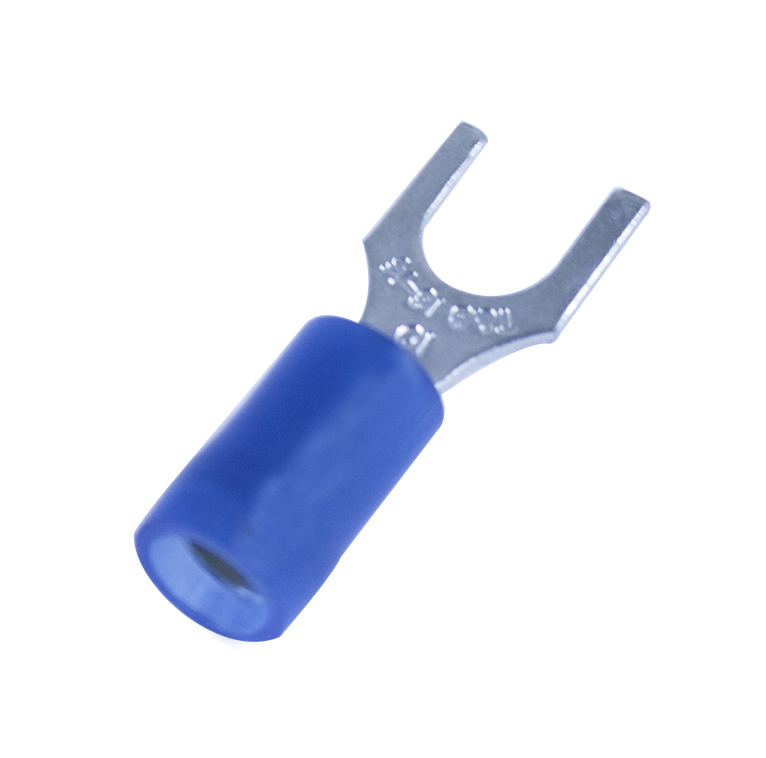

INSULATED SPADE TERMINAL BLUE, M5, AWG 18-14, UL/CSA
RB14-10F
- Availability:
-
No
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Max. current (Imax) | 27 A |
| Flange shape | Fork shape |
| According to DIN | No |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Operating temperature | -40-105 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | Yes |
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
| Bolt dimension (metric) | 5 . |
| Nominal cross section | 0.82-2.08 mm² |
Logistics
| Barcode | 541436315829 |
|---|---|
| Country of origin | US |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Stock code | RB14-10F |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| With approval according to UL | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Spade terminals - Polyamide |
| Search Description | RB14-10F, 7TAI029810R0010 |
| Alternative SKU | RB14-10F |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
