RB14-250A

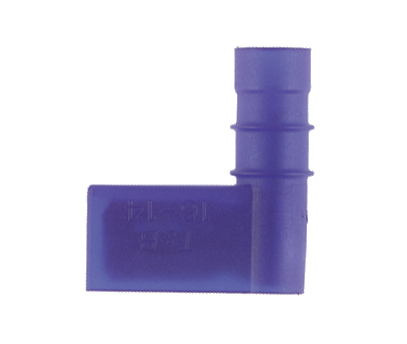

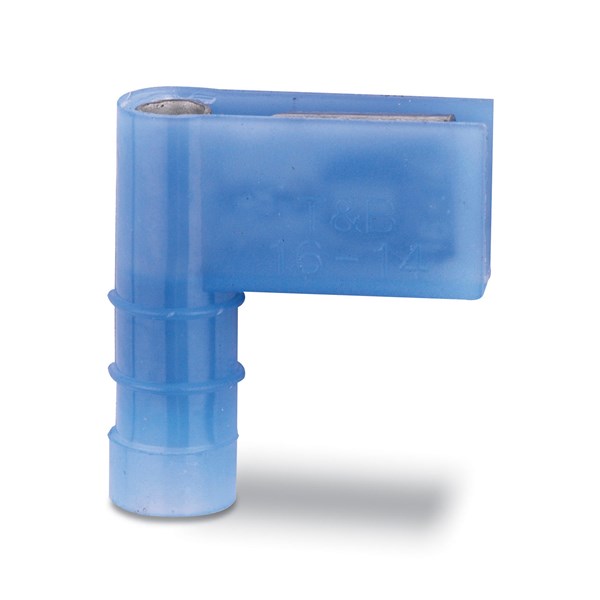

INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm
RB14-250A
- Availability:
-
No
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Reel/roll packaging | No |
| Model | Bushing |
| Max. current (Imax) | 15 A |
| Insulation | Partially isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyamide (PA) |
| Fire classification | According to UL94V0 |
| Operating temperature | -60-105 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | Yes |
Dimensions
| MOQ | 50 . |
|---|---|
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 541436315836 |
|---|---|
| Country of origin | US |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 50 . |
| Stock code | RB14-250A |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| With approval according to UL | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Flag Female Disconnectors - Polyamide |
| Search Description | RB14-250A, 7TAI029690R0011 |
| Alternative SKU | RB14-250A |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
