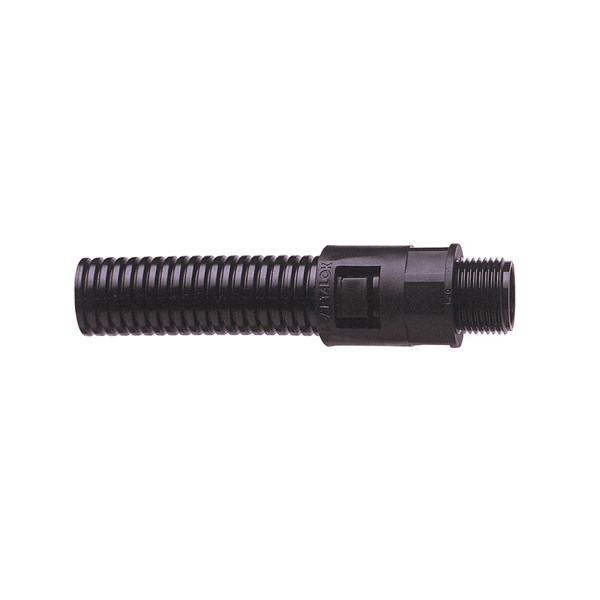

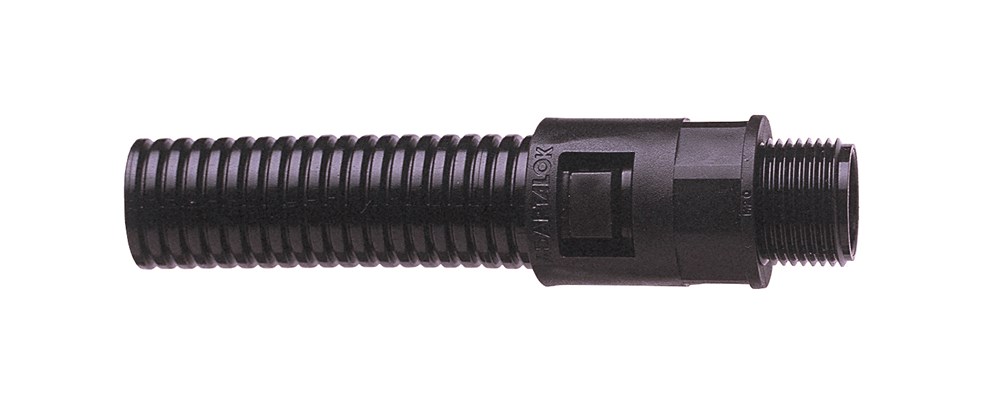

Förskruvning swivel, plast
Technical properties
- Revolving thread:
- Yes
- Thread material:
- Brass
- Degree of protection (IP):
- IP66
- Model:
- Straight
- Type of connection:
- Thread
- Transparent:
- No
- Thread type:
- Metric
- Construction type:
- External thread
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Other
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Thread size | Nominal diameter | Thread connection size | Total height | Lowest inner diameter hose | Max. outer diameter hose | MOQ | Unit | Total length | Thread length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING, SWIVEL, PLASTIC 28mm, M25, BLACK | 25 . | 23 mm | M25 x 1.5 | 34 mm | 19.1 mm | 34 mm | 10 . | pcs | 60.9 mm | 12.2 mm |
No
|
|
|
| CONDUIT FITTING, SWIVEL, PLASTIC 34mm, M32, BLACK | 32 . | 29 mm | M32 x 1.5 | 42 mm | 26.4 mm | 42 mm | 10 . | pcs | 66.8 mm | 17 mm |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Approved in combination with protective conduit CSA | Approved in combination with protective conduit UR | Approved in combination with protective conduit VD TÜV/GGVS | Approved in combination with protective conduit DIN EN 61386-23 | Approved in combination with protective conduit Lloyd's Register | Degree of protection (IP) | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING, SWIVEL, PLASTIC 28mm, M25, BLACK | No | No | No | Yes | Yes | IP66 |
No
|
|
|
| CONDUIT FITTING, SWIVEL, PLASTIC 34mm, M32, BLACK | No | No | No | Yes | Yes | IP66 |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Revolving thread | Thread material | Degree of protection (IP) | Model | Type of connection | Transparent | Thread type | Construction type | Colour | Operating temperature | Material | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING, SWIVEL, PLASTIC 28mm, M25, BLACK | Yes | Brass | IP66 | Straight | Thread | No | Metric | External thread | Black | -40-120 °C | Other |
No
|
|
|
| CONDUIT FITTING, SWIVEL, PLASTIC 34mm, M32, BLACK | Yes | Brass | IP66 | Straight | Thread | No | Metric | External thread | Black | -40-120 °C | Other |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CONDUIT FITTING, SWIVEL, PLASTIC 28mm, M25, BLACK | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | FÖRSKRUVNING SWIVEL, PLAST | AL28/M25/SA |
No
|
|
|
| CONDUIT FITTING, SWIVEL, PLASTIC 34mm, M32, BLACK | EC001176 - Screw connection for corrugated plastic hose | 9.0 |
|
Fittings for plastic conduit | FÖRSKRUVNING SWIVEL, | AL34/M32/SA |
No
|
|
|
- Total: 2
