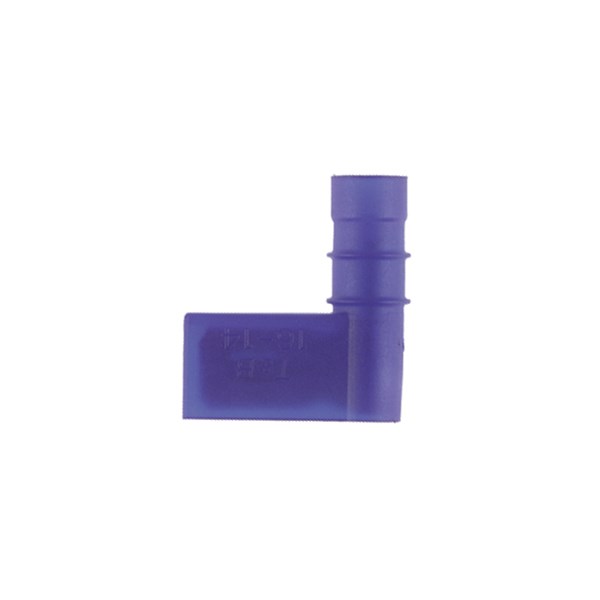

Flag terminals RB-series
Technical properties
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Model:
- Bushing
- Max. current (Imax):
- 15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -60-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Nominal cross section | AWG-range | Plug dimensions | Availability | ||
|---|---|---|---|---|---|---|---|---|
| INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | 50 . | pcs | 1.04-2.63 mm² | 16-14 . | Flat 6.3x0.8 mm |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | With approval according to UL | Inflammability class of insulation material according to with UL94 | Availability | ||
|---|---|---|---|---|---|
| INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm |
|
|
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Suitable for Class 2 conductor | Suitable for Class 5 conductor | Reel/roll packaging | Model | Max. current (Imax) | Insulation | Colour insulation | With cam clamp | With tap spreader | Material insulation | Fire classification | Operating temperature | Material | Voltage max | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | Yes | Yes | No | Bushing | 15 A | Partially isolated | Blue | No | No | Polyamide (PA) | According to UL94V0 | -60-105 °C | Brass | 300V | Yes |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| INSULATED FLAG TERMINAL BLUE, 6.3x0.8mm | EC000516 - Round or flat plug/receptacle | 9.0 |
|
Flag Female Disconnectors - Polyamide | RB14-250A, 7TAI029690R0011 | RB14-250A |
No
|
|
|
- Total: 1
