360 view
TY 28 MX-RW

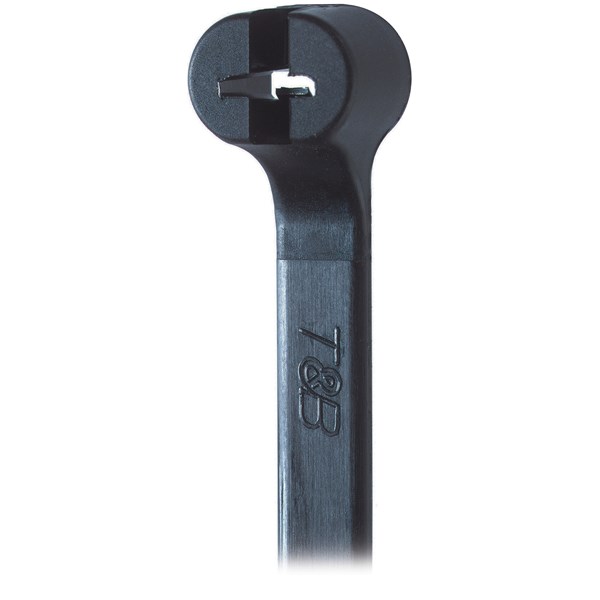

Cable Tie, TY-RAP 360x4.8mm, Black Steel Barb, RAILWAY
TY 28 MX-RW
- Availability:
-
Yes
- Total: 1
Related items
Ty-Rap, cable ties, metal barb - Railway
UV-resistant and flame retardant Ty-Rap® cable ties for the railway industry
Premium cable ties with steel locking barb to secure and manage cables
- The "Grip of Steel" Non-Magnetic Stainless Steel locking Barb
- marine grade type 316 - Rounded edges to prevent sharp edges from damaging cables
- Smooth, notchless body, making the cable ties stronger
- Ribbed and Stippled surface to prevent the tie from slipping under vibration conditions and external shock
- UV-resistant and flame retardant Ty-Rap® cable ties are certified to the latest standard for the train industry
- Tested according to the NFF 16-101 standard
- Tested according to the EN 45545-2
- Complete range of Ty-Rap® cable ties in different dimensions up to a tensile strength of 540N.
- Total: 1
Product Properties
| Detectable | No |
|---|---|
| Min. tensile strength | 220 N |
| Model | Without toothing |
| Material quality | Polyamide (PA) |
| Operating temperature | -40-85 °C |
| Band closure | Steel nose |
| UV-stable acc. ASTM D6779 | Yes |
| Transparent | No |
| Fluorescent | No |
| Solvable fastener | No |
| Text strip | None |
| Type of fastening | None |
| Colour | Black |
| Surface protection | Untreated |
| Material | Plastic |
| Halogen free | Yes |
| Max. tensile force | 220 N |
Dimensions
| MOQ | 1000 . |
|---|---|
| Unit | pcs |
| Length belt/tape/tie | 360 mm |
| Band width | 4.8 mm |
| Max. bundle diameter | 102 mm |
| Max. tensile force | 220 N |
Logistics
| Barcode | 541502218020 |
|---|---|
| Country of origin | HU |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1000 . |
| Stock code | TY 28 MX-RW |
| Taric code | 39269097 |
| Unit | pcs |
Approvals
| MIL approval | Yes |
|---|---|
| UL approval | Yes |
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000046 - Cable tie |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Cable ties with higher technical spec |
| Search Description | TY28MX-RW, 7TCG009210R0086 |
| Alternative SKU | TY28MX-RW |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
