TYF 35 M

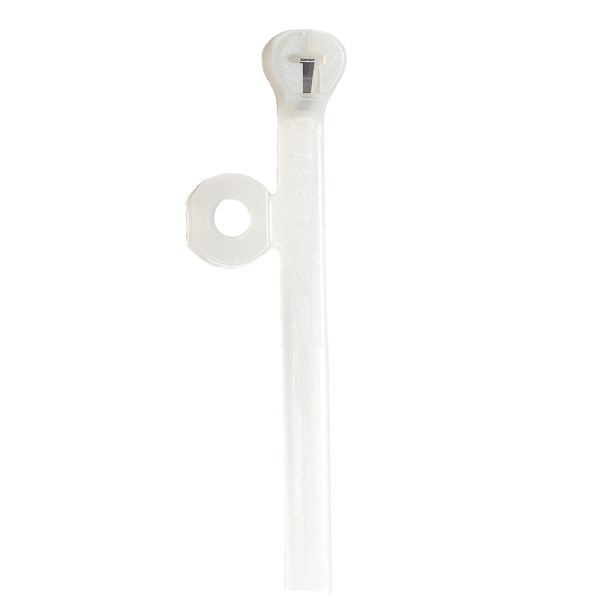

Cable Tie, TY-RAP, 186x4.7mm, Natural Steel Barb, Mountable Head
TYF 35 M
- Availability:
-
No
- Total: 1
Related items
Ty-Rap, plastic cable ties with mounting hole
Characteristics
Can be directly mounted on to a support with screws, bolts or rivets. Mounting and bundling in one maintenance-friendly assembly.
Typical application: cable harness manufacture and pre- and end- mounting of bundles andparts. Maintenance friendly mounting of cables, tubes and parts in all types and sizes of machines and installations - indoor and outdoor.
- Total: 1
E1517002
Product Properties
| Detectable | No |
|---|---|
| Min. tensile strength | 220 N |
| Model | Without toothing |
| Material quality | Polyamide (PA) |
| Operating temperature | -40-85 °C |
| Band closure | Steel nose |
| UV-stable acc. ASTM D6779 | No |
| Transparent | No |
| Fluorescent | No |
| Solvable fastener | No |
| Text strip | None |
| Type of fastening | Screw hole |
| Colour | Natural colour |
| Surface protection | Untreated |
| Material | Plastic |
| Halogen free | Yes |
| Max. tensile force | 220 N |
Dimensions
| Bundle diameter | 3.5-45 mm |
|---|---|
| MOQ | 1000 . |
| Diameter of mounting hole | 5.1 mm |
| Unit | pcs |
| Length belt/tape/tie | 186 mm |
| Band width | 4.7 mm |
| Max. tensile force | 220 N |
Logistics
| Barcode | 541436306730 |
|---|---|
| Country of origin | HU |
| E-no | E1517002 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1000 . |
| Stock code | TYF 35 M |
| Taric code | 39269097 |
| Unit | pcs |
Approvals
| UL approval | Yes |
|---|---|
| Inflammability class of insulation material according to with UL94 | V2 |
Other info
| ETIM-Class | EC000046 - Cable tie |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | Thomas & Betts |
| Product Group | Cable ties with fixing elements |
| Search Description | TYF35M, 7TCG009520R0076 |
| Alternative SKU | TYF35M |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| REACH Annex XIV | Compliance |
| REACH Annex XVII | Compliance |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
