Lödskarvar
D 436-serien
Lödskarvhylsor med crimp från Tyco, som är en kombination av krympning och lödning i ett moment.

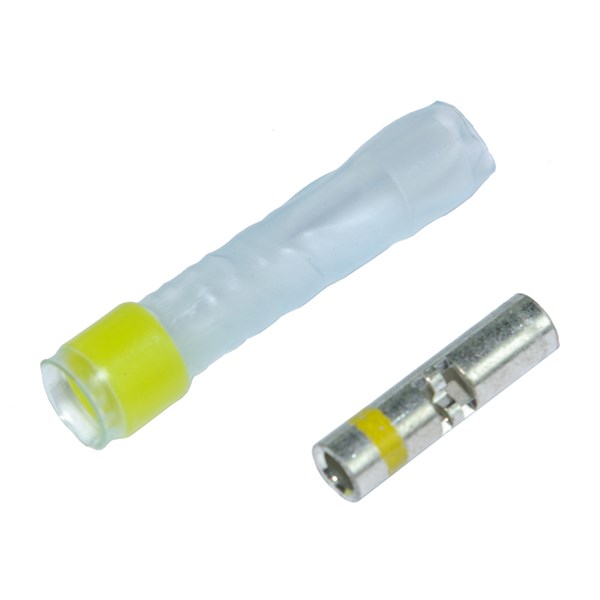

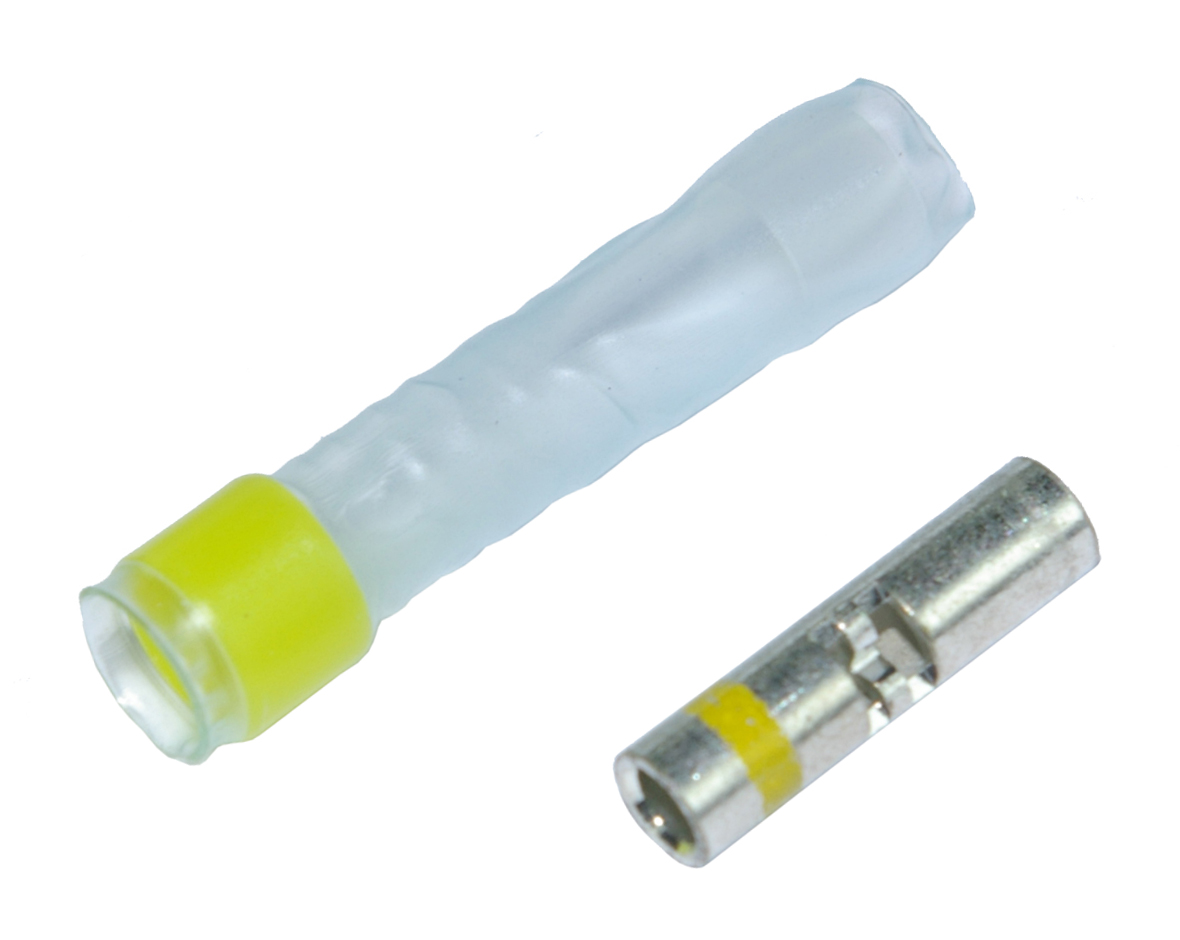

D 436-serien är uppbyggd av två separata delar. En förtent hylsa, som kardelerna pressas fast i, samt en lödskarv, som sedan smälts över hylsan. Godkänd enligt MIL-S-81824.
Temperatur: -55º C till +150º C
Max. kabelytterdiameter (mm):
D 436-36: 2.16
D 436-37: 2.79
D 436-38: 4.32
Godkänd enligt MIL-S-81824/1.
Technical properties
- Colour:
- Red, Blue, Yellow
- Operating temperature:
- -55-150 °C
- Connector type:
- Lödskarvhylsa med lim
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.16mm, 0.2-0.75mm2 | 100 . | pcs | 0.2-0.75 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=2.8mm, 0.4-1.34mm2 | 100 . | pcs | 0.4-1.34 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=4.3mm, 0.95-3.4mm2 | 100 . | pcs | 0.95-3.4 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.16mm, 0.2-0.75mm2 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=2.8mm, 0.4-1.34mm2 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=4.3mm, 0.95-3.4mm2 |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Colour | Operating temperature | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.16mm, 0.2-0.75mm2 | Red | -55-150 °C | Lödskarvhylsa med lim | Loose piece |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=2.8mm, 0.4-1.34mm2 | Blue | -55-150 °C | Lödskarvhylsa med lim | Loose piece |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=4.3mm, 0.95-3.4mm2 | Yellow | -55-150 °C | Lödskarvhylsa med lim | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.16mm, 0.2-0.75mm2 | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 650074-000 | D436-36 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=2.8mm, 0.4-1.34mm2 | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 650075-000 | D436-37 |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=4.3mm, 0.95-3.4mm2 | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 650076-000 | D436-38 |
Yes
|
|
|
- Total: 3
