Lödskarvar
CWT2-serien

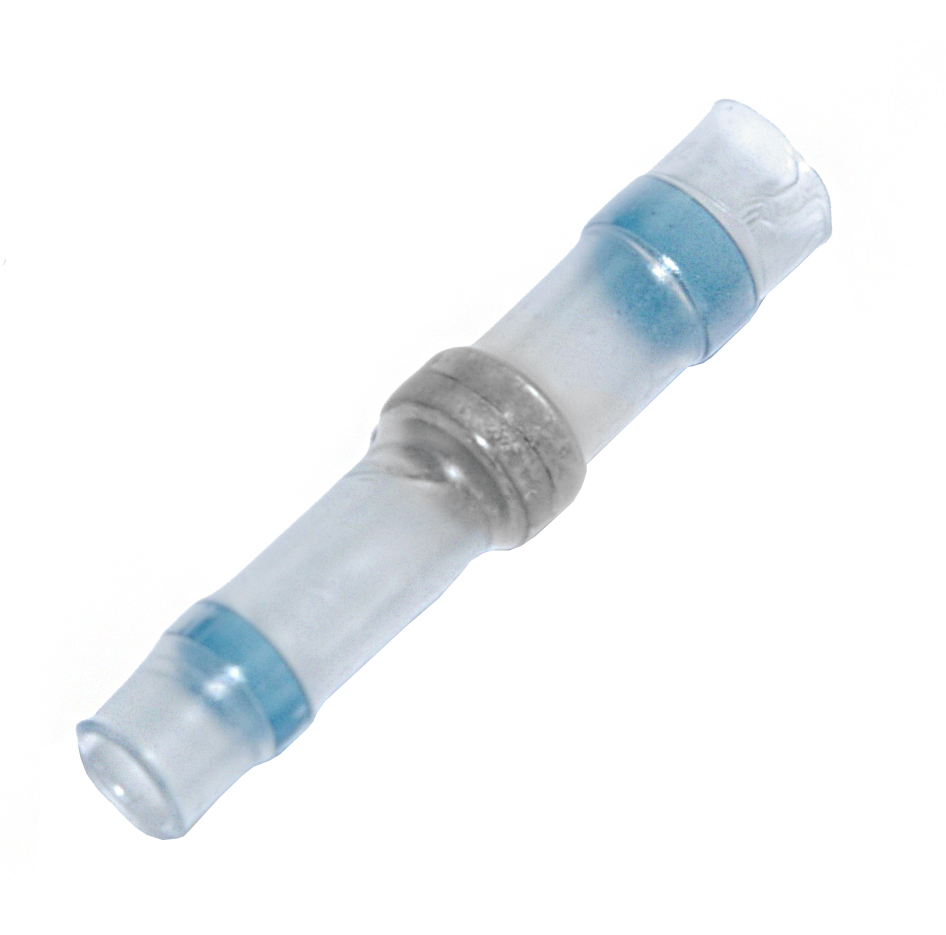

Lödskarvhylsor från Tyco, som är en kombination av krympning och lödning i ett moment. Med extra bred lödring.
På CWT 2-serien skapas en vattentät lödning över en skarv, mellan två eller flera skalade kablar.
Temperatur: -55° C till +125° C
Technical properties
- Colour:
- Blue, Red, Yellow
- Operating temperature:
- -55-125 °C
- Connector type:
- Lödskarvhylsa, dubbelring
- Packaging:
- Loose piece
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CWT2 Drawing
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 (AWG 18-12) | 50 . | pcs | 1.8-2.5 mm² |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 (AWG 22-18) | 50 . | pcs | 0.6-2 mm² |
No
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 (AWG 12-10) | 50 . | pcs | 2.4-4.5 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
- Total: 3
Technical Properties
- Total: 3
| Product Description | Colour | Operating temperature | Connector type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 (AWG 18-12) | Blue | -55-125 °C | Lödskarvhylsa, dubbelring | Loose piece |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 (AWG 22-18) | Red | -55-125 °C | Lödskarvhylsa, dubbelring | Loose piece |
No
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 (AWG 12-10) | Yellow | -55-125 °C | Lödskarvhylsa, dubbelring | Loose piece |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| SOLDERSLEEVE WIRE SPLICE BLUE, OD MAX=4.4mm, 1.8-2.5mm2 (AWG 18-12) | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 493995-000, B-008-14 | CWT2-B |
Yes
|
|
|
| SOLDERSLEEVE WIRE SPLICE RED, OD MAX=2.8mm, 0.6-2.0mm2 (AWG 22-18) | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 747081-000, B-008-13 | CWT2-R |
No
|
|
|
| SOLDERSLEEVE WIRE SPLICE YELLOW, OD MAX=5.8mm, 2.4-4.5mm2 (AWG 12-10) | EC000466 - Heat-shrink crimp connection | 7.0 |
|
Soldersleeve wire splices | 011829-000, B-008-15 | CWT2-Y |
Yes
|
|
|
- Total: 3
