Klämkabelskor

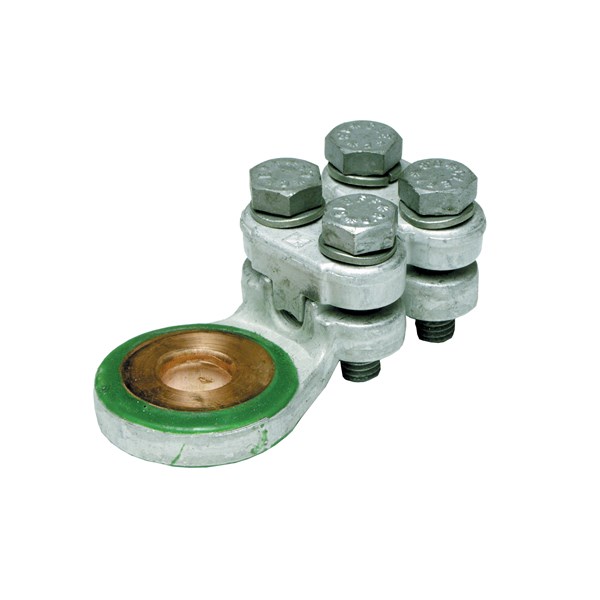

Bolted cable lugs of aluminiumcopper
The terminal is constructed in principle as Al-lug, but has a pressed copper bushing in the connecting plate. The joint between aluminium and copper-section is homogeneous and completely corrosion proof. The external transition is insulated with weather-resistant materials.
Material: Contact Upper, contact base: High-strength aluminium alloy
Bolts and washers: Hot-dip galvanized steel
Bushing: Copper
Tightening torque: 22 Nm
Technical properties
- Material conductor:
- Aluminium
- Max Temp:
- 150 °C
- Surface protection:
- Untreated
Show more
Item List
- Total: 3
- Total: 3
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 3
| Product Description | MOQ | Unit | Nominal cross section aluminium, RM | Nominal cross section aluminium, RE | Nominal cross section aluminium, SM | Bolt dimension (metric) | Nominal cross section aluminium, SE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| KLÄMKABELSKO BIMETAL, 16-35mm2, HÅL=13mm, 4xM8, 2235 A | 1 . | pcs | 16-35 mm² | 16-35 mm² | 16-35 mm² | 13 . | 16-35 mm² |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 35-70mm2, HÅL=17mm, 4xM8, 2270 A | 1 . | pcs | 35-70 mm² | 35-70 mm² | 35-70 mm² | 17 . | 35-70 mm² |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 95-150mm2, HÅL=17mm, 4xM8, 2295 A | 1 . | pcs | 95-150 mm² | 95-150 mm² | 95-150 mm² | 17 . | 95-150 mm² |
Yes
|
|
|
- Total: 3
Similar Options
Approvals
- Total: 3
| Product Description | Availability | ||
|---|---|---|---|
| KLÄMKABELSKO BIMETAL, 16-35mm2, HÅL=13mm, 4xM8, 2235 A |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 35-70mm2, HÅL=17mm, 4xM8, 2270 A |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 95-150mm2, HÅL=17mm, 4xM8, 2295 A |
Yes
|
|
|
- Total: 3
Technical Properties
- Total: 3
| Product Description | Material conductor | Max Temp | Surface protection | Availability | ||
|---|---|---|---|---|---|---|
| KLÄMKABELSKO BIMETAL, 16-35mm2, HÅL=13mm, 4xM8, 2235 A | Aluminium | 150 °C | Untreated |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 35-70mm2, HÅL=17mm, 4xM8, 2270 A | Aluminium | 150 °C | Untreated |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 95-150mm2, HÅL=17mm, 4xM8, 2295 A | Aluminium | 150 °C | Untreated |
Yes
|
|
|
- Total: 3
Other information
- Total: 3
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| KLÄMKABELSKO BIMETAL, 16-35mm2, HÅL=13mm, 4xM8, 2235 A | EC001154 - Screw cable lug | 9.0 |
|
Bolted Cable Lugs | 071768-000 HEL-2235A | E0651110 |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 35-70mm2, HÅL=17mm, 4xM8, 2270 A | EC001154 - Screw cable lug | 9.0 |
|
Bolted Cable Lugs | 634638-000 2270-A | E0651112 |
Yes
|
|
|
| KLÄMKABELSKO BIMETAL, 95-150mm2, HÅL=17mm, 4xM8, 2295 A | EC001154 - Screw cable lug | 9.0 |
|
Bolted Cable Lugs | 121012-000 2295-A | E0651114 |
Yes
|
|
|
- Total: 3
