Grenklämmor

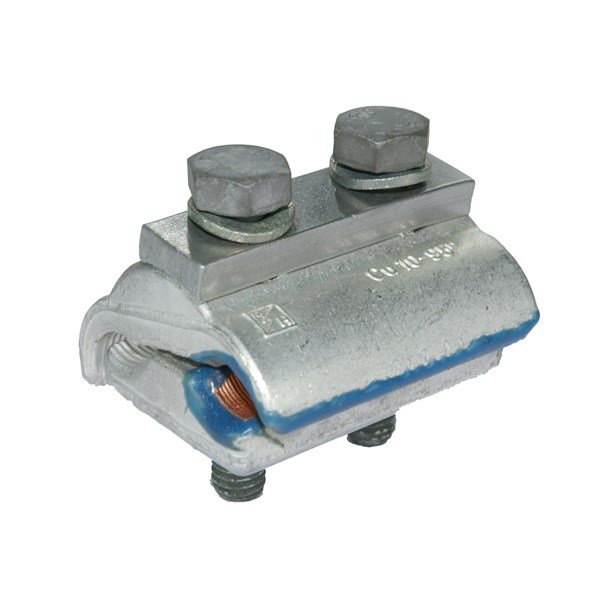

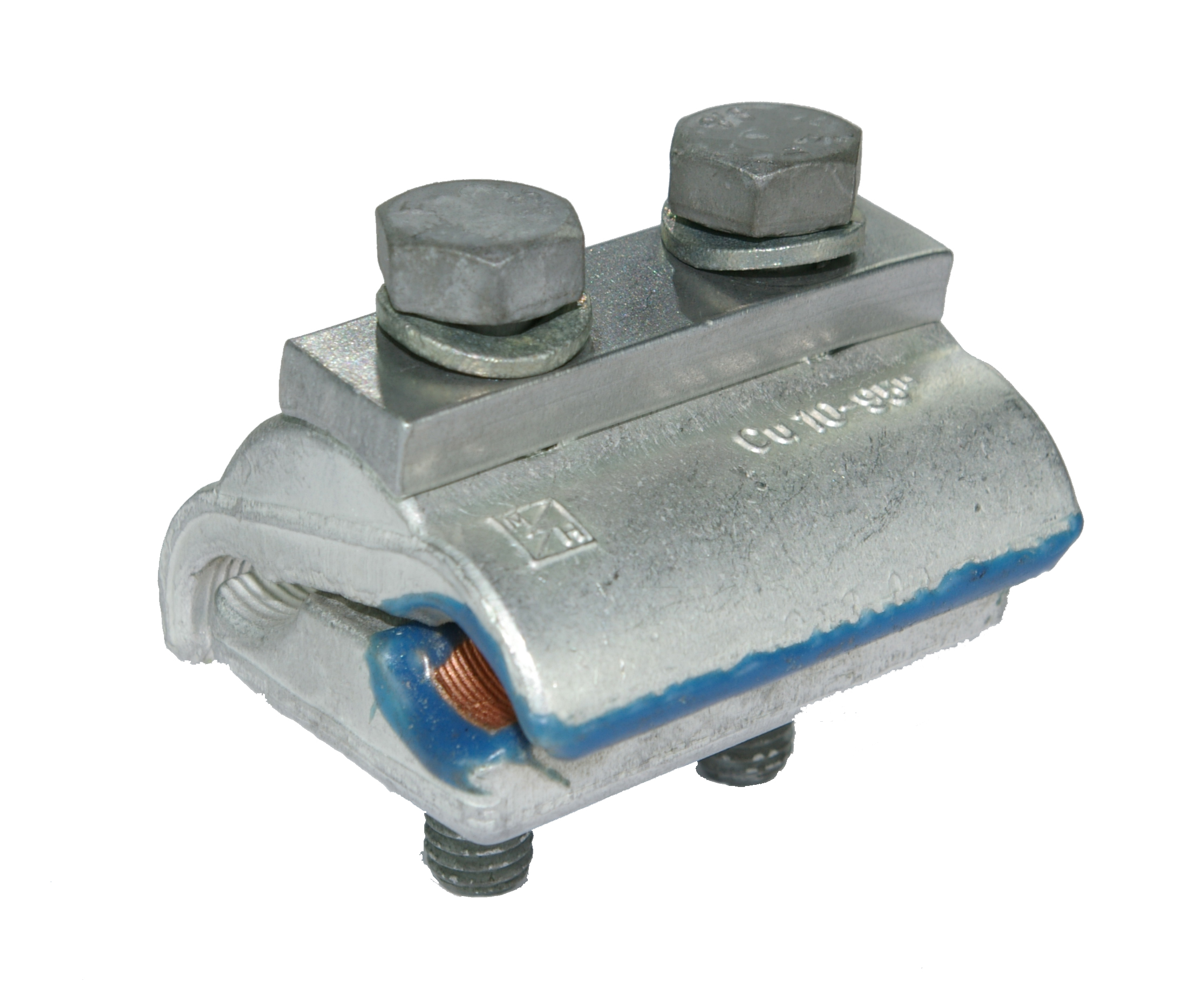

Grenklämma av aluminiumkoppar, typ Alcufix
Alcufix grenklämmor är avsedda för grenförbindningar mellan Al- och Cu-ledare. Klämman är tillverkad av en seghärdad aluminiumlegering homogent sammanfogad med en Cu-del av elektrolytkoppar. Cu-delen pressas fast enligt Cupalmetoden, som ger en helt tät förbindning vilken ej kan påverkas av fukt.
Material:
Klämöverdel, -underdel och tryckplatta: Seghärdad aluminiumlegering
Kopparmantel: Cupal
Fjäderplatta: Varmförzinkat fjäderstål
Bultar: Varmförzinkat stål
Åtdragningskraft: 22 Nm
Technical properties
- Material main conductor:
- Aluminium
- Material branch conductor:
- Copper
- Terminal insulated:
- No
- Clamping channel opening main conductor:
- Both sides open
- Clamping channel opening branch conductor:
- Both sides open
- Type of connection:
- Screwed connection
- Max Temp:
- 150 °C
- Surface protection:
- Bare
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Availability | ||
|---|---|---|---|---|---|
| GRENKLÄMMA, FeAL 16-70mm², Cu 6-50mm² | 1 . | pcs |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
| Product Description | Material main conductor | Material branch conductor | Terminal insulated | Clamping channel opening main conductor | Clamping channel opening branch conductor | Type of connection | Max Temp | Surface protection | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, FeAL 16-70mm², Cu 6-50mm² | Aluminium | Copper | No | Both sides open | Both sides open | Screwed connection | 150 °C | Bare |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| GRENKLÄMMA, FeAL 16-70mm², Cu 6-50mm² | EC001062 - Branch terminal | 7.0 |
|
Screw Connections & Clamps | 707352-000 | E0651040 |
Yes
|
|
|
- Total: 1
