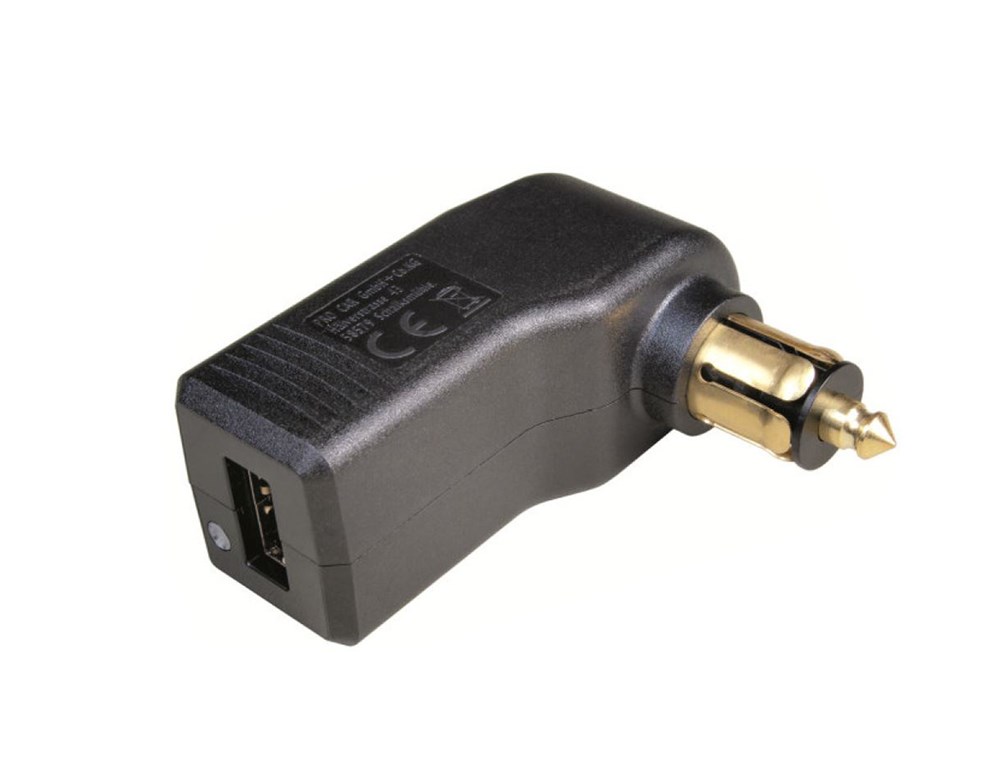

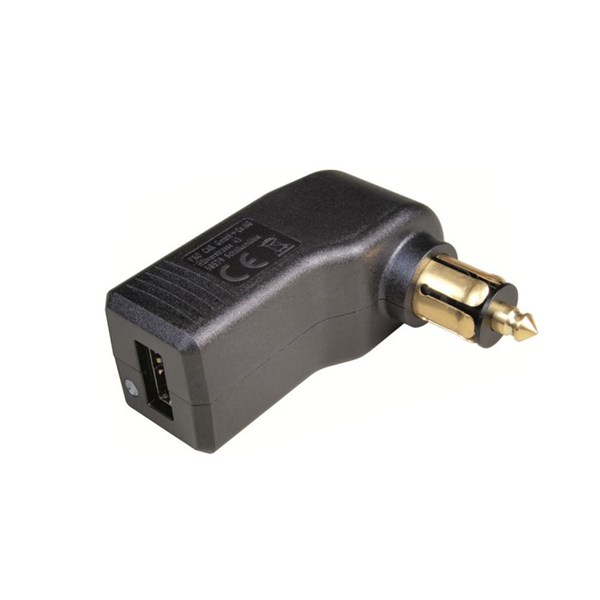

Angular USB Standard Plug DIN, 12-24V
12-24 V DC, output 5 V DC, max. 3 A (15 watts)
with integrated voltage converter. With blue control LED that shows voltage.
For charging and operating electronical devices that can be charged via 5 V USB.
Port: 1 x USB-A.
Input 8-34 V DC
Current consumption < 1 mA
E1-approval.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
Connecting via standard plug, fitting for standard sockets (inner-Ø 12 mm), following DIN EN ISO 4165.
Technical properties
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
Similar Options
Approvals
Technical Properties
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| PLUGS DIN, USB-A, 3A ANGLED | EC003890 - Adapter for car power socket | 9.0 |
|
Plugs & sockets USB/CIG/DIN | 175467304000 |
No
|
|
|
