360 view
LST08CV180IP65-5000

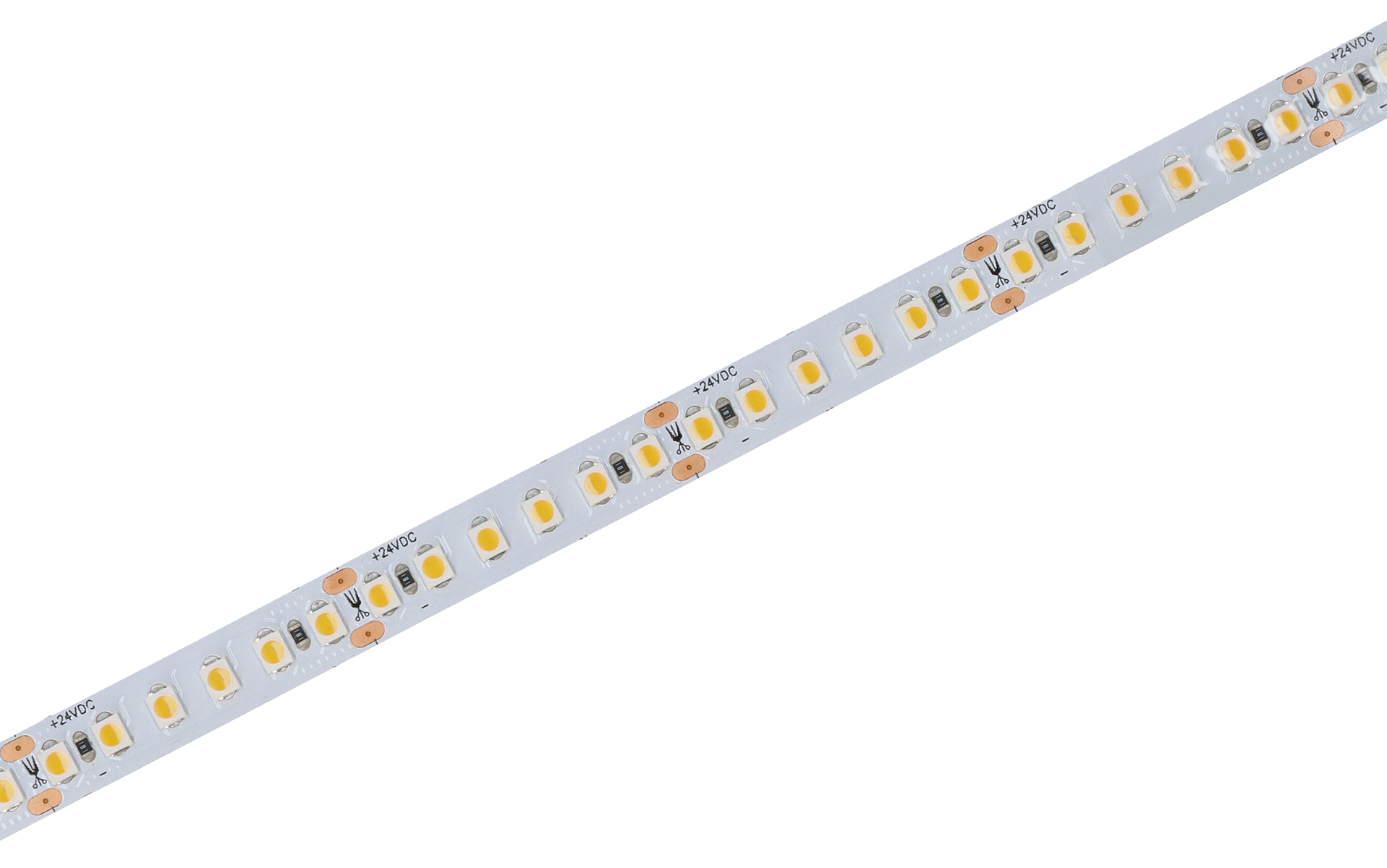

LED STRIP 8mm, L=5000mm+150mm CABLE IP65, 24VDC, CV, 2700K, 14,4W/m, 180 LED/m 11LM/m
LST08CV180IP65-5000
- Availability:
-
Yes
- Total: 1
Related items
LED Strip SMD 24DC IP65 1100LM
Enkel installation med dubbelhäftande 3M tejp på baksidan.
Teknisk data:
Effekt: 14,4 W/m
Längd: 5 m
Bredd: 8 mm
Klippintervall: 33mm
Ljustemperatur: 3000K
IP65
Lumen: 1100 LM/m, 76 LM/W
Spänning: 24V DC
LED/m: 180
Color Rendering Index(CRI): 90+
Energiklass: A++
CE, UL, RoHs
- Total: 1
Product Properties
Max. system power | 72 W |
---|---|
Colour temperature | 2700 K |
Number of poles | 2 . |
Lamp power per meter | 14.4 W |
Lamp power per foot | 4.39 W |
Luminous flux per meter | 76 lm |
Lamp voltage | 24 V |
Dimensions
Lowest bending radius | 50 mm |
---|---|
Length of particular segments | 33 mm |
Width | 8 mm |
MOQ | 1 . |
Unit | roll |
Length | 5000 mm |
Logistics
Barcode | 733117631680 |
---|---|
Country of origin | CN |
Item status | Stock item, normally in stock with reservation for in between sales. |
MOQ | 1 . |
Stock code | LST08CV180IP65-5000 |
Taric code | 85414010 |
Unit | roll |
Approvals
Other info
ETIM-Class | EC002706 - Light ribbon-/hose/-strip |
---|---|
ETIM-Release | 9.0 |
Trademark | NESIGN |
Product Group | LED strips |
Search Description | LED STRIP, LED LIST |
Alternative SKU | LST08CV180IP65-5000 |
Compliance
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Generate Datasheet:
