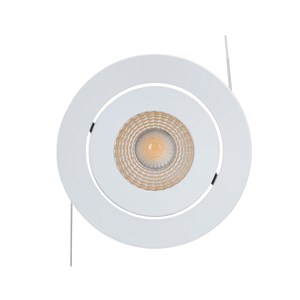

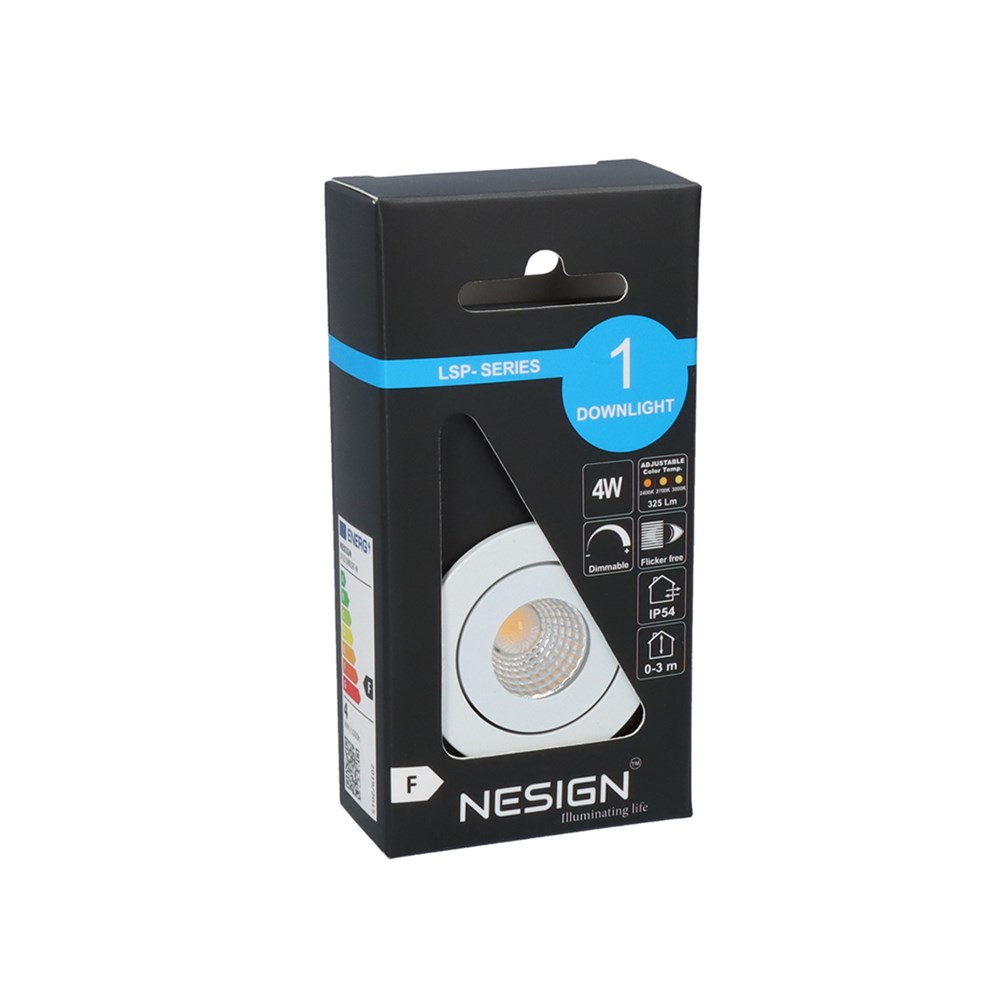

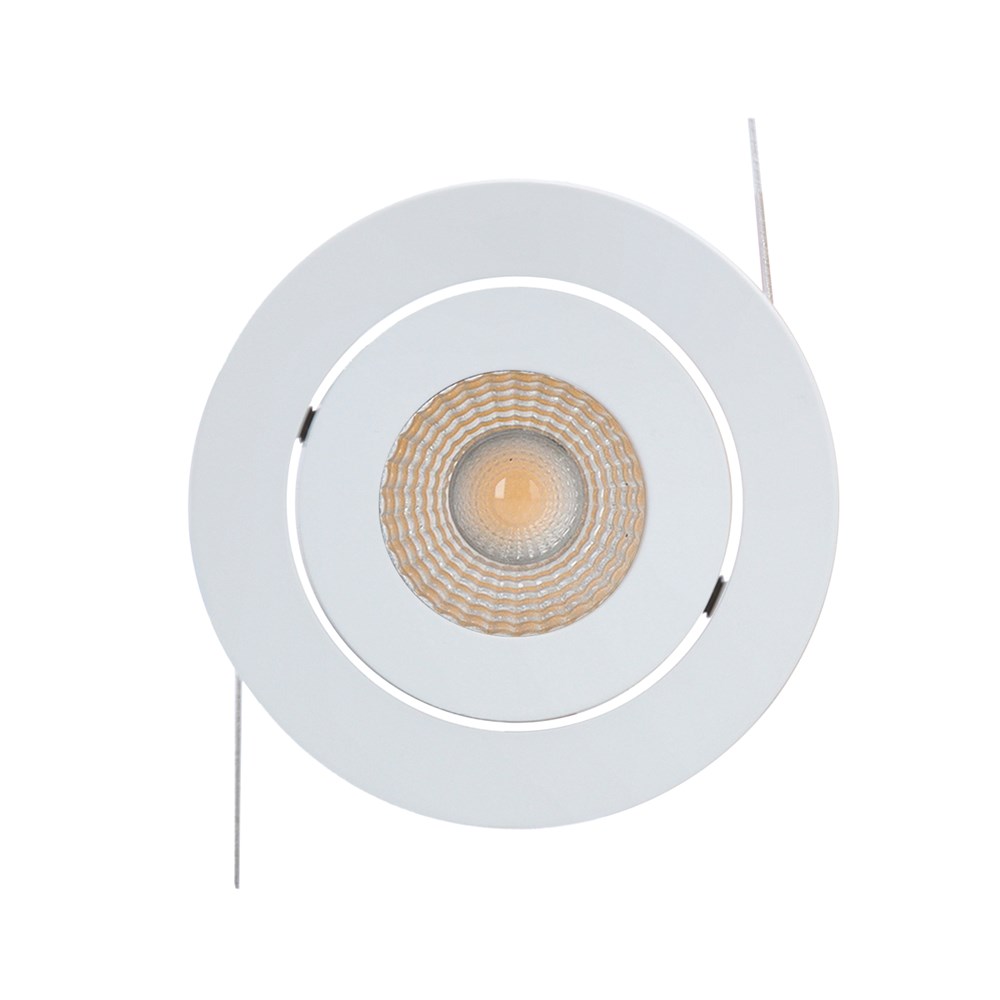

LSP-1 3CCTW48R-MW
LED DOWNLIGHT 48mm, 4W, RUND, VIT, 60gr, IP54 PRISM REFLECTOR, 3CCT, VINGAR
LSP-1 3CCTW48R-MW
- Availability:
-
No
- Total: 1
Related items
LSP Downlights 3CCT Runda
Vinklingsbara downlights med mycket hög kvalitetskänsla.
Fungerar för både inomhus och utomhus montage. Downlights med 3CCT (2400K, 2700K och 3000K) som enkelt väljs på kabeln.
Finns i diamter 60 mm, 80 mm & 90 mm.
60 mm ramar har fjädrar och kan monteras i undertak. Hålstorlek 52-54 mm

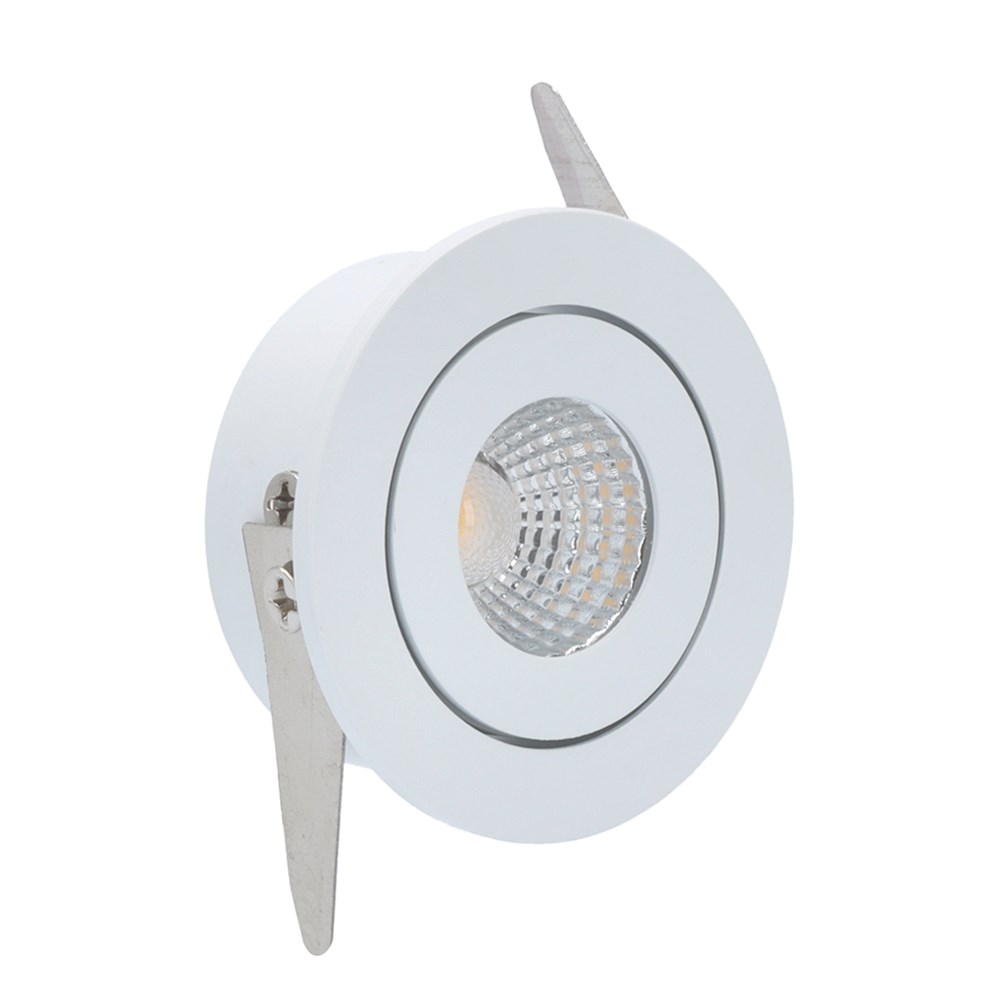

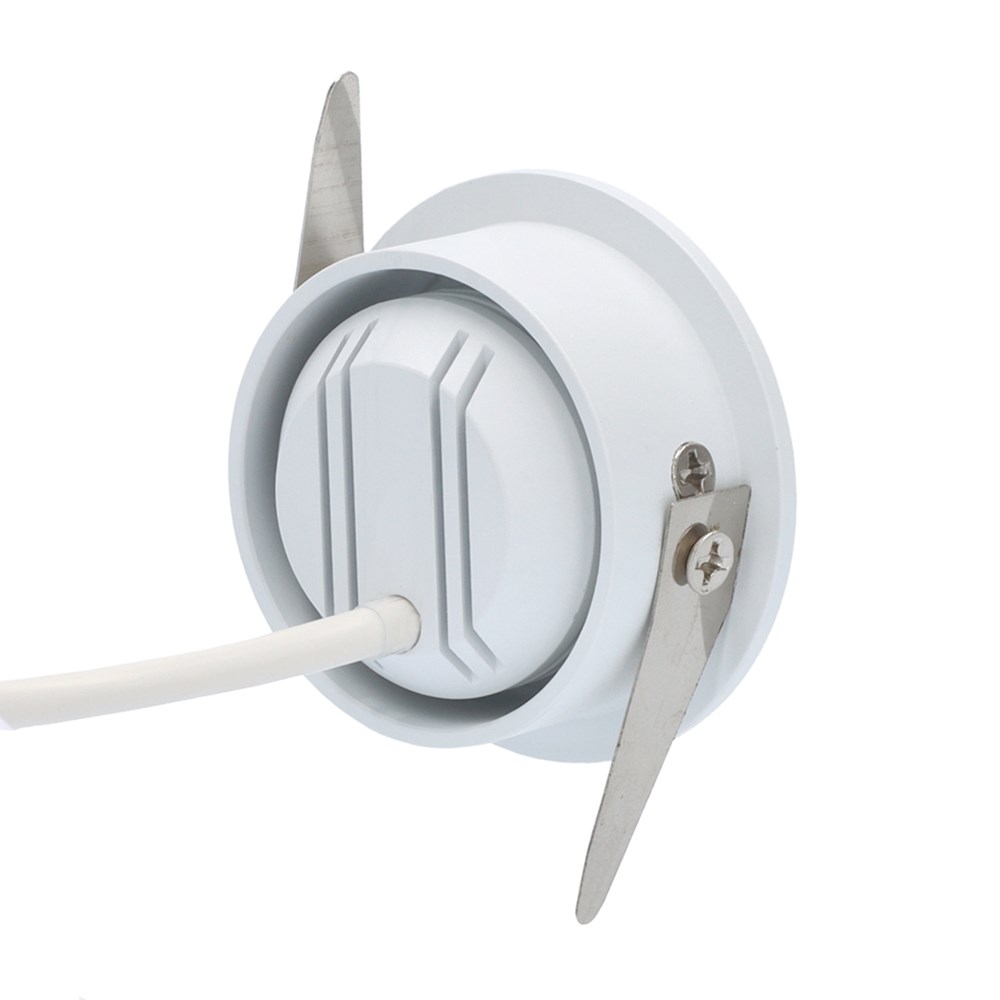

80 mm ramar har metallvingar och kan monteras i undertak samt i 70 mm dosor. Hålstorlek 52-62 mm 90 mm ramar har metallvingar och kan monteras i undertak samt i 80 mm dosor. Hålstorlek 52-72 mm
1-Pack. Kan kompletteras med drivdon, kablar och kopplingsplintar.
Teknisk data:
Effekt: 4 W
Ljusstyrka: Se nedan tabell
Dimmningsbara: Ja
Ljusvinkel: 60°
Ljustemperatur: Se nedan tabell
IP-klass: IP54
Temperaturområde: -20 till +50C
Livslängd: 70% efter 50.000 h
Spänning: 1-9 V
Ström: 350 mA
Antal LED;ar: 1st
LED: COB, CREE CXA1304-2 STEP
Color Rendering Index(CRI): 90
Optik: Reflektor med prisma framför LED
Glas: Klart
Energiklass: F
Kabel: 100mm AWG22 med brytare samt kontaktdon.
Downlight djup i dosa: Max 25 mm
Finns i vitt, svart eller aluminium utförande.
- Total: 1
Product Properties
| Dimmable | Yes |
|---|---|
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DSI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off (trailing edge) | No |
| Dimming phase cut-on (leading edge) | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Protection class according to IEC 61140 | III |
| Housing material | Aluminium |
| Suitable for surface mounting | No |
| Suitable for built-in mounting | Yes |
| Suitable for wall mounting | No |
| Suitable for suspended mounting | No |
| Suitable for ceiling mounting | Yes |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Suitable for low voltage cable system | No |
| Adjustability | Rotatable |
| With movement sensor | No |
| With light sensor | No |
| Lamp type | LED not exchangeable |
| With light source | Yes |
| Suitable for number of light sources | 1 . |
| Lamp holder | None |
| Housing colour | White |
| Material cover | None |
| Surface brushed | No |
| Voltage type | AC |
| Nominal voltage | 220-240 V |
| Type of control gear | LED operating device current-controlled |
| With control gear | No |
| Dimming depending on control gear | Yes |
| Reflector | High-gloss |
| Light distributor | Reflector |
| Light distribution | Symmetric |
| Beam angle | 41-80° - Wide beam |
| Light outlet | Direct |
| Energy efficiency class of the built-in lamp | F |
| Degree of protection (NEMA) | Other |
| Suitable for lamp power | 0 N/A |
| Max. system power | 4 W |
| Colour of light | White |
| Colour temperature | 2400-3000 K |
| Colour rendering index CRI | 80-89 |
| Luminous flux | 325 lm |
| Lamp efficacy | 82 lm/W |
| Luminous intensity | 364 cd |
| Number of poles | 2 . |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for workplace according to EN 12464-1 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Connection type | Crimping |
| Frame shape | Round |
| Degree of protection (IP) | IP54 |
| Surface protection | Powder coating |
| Rated luminous flux according to IEC 62722-2-1 | 325 lm |
Dimensions
| Width | 0 mm |
|---|---|
| Built-in width | 0 N/A |
| Built-in length | 0 N/A |
| Built-in diameter | 40 mm |
| Conductor cross section | 0.34 mm² |
| MOQ | 1 . |
| Connectable conductor cross section | 0.34 mm² |
| Height/depth | 3 mm |
| Unit | pck |
| Length | 0 N/A |
| Outer diameter | 48 mm |
Logistics
| Barcode | 733117641213 |
|---|---|
| Country of origin | TW |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | LSP-1 3CCTW48R-MW |
| Taric code | 85395100 |
| Unit | pck |
Approvals
| Rated luminous flux according to IEC 62722-2-1 | 325 lm |
|---|---|
| Protection class according to IEC 61140 | III |
| Voltage type | AC |
| Degree of protection (NEMA) | Other |
| Degree of protection (IP) | IP54 |
Other info
| ETIM-Class | EC001744 - Downlight/spot/floodlight |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NESIGN |
| Product Group | 415026 |
| Search Description | SPOT 3CCT SKH2023TOBIAS4 |
| Alternative SKU | LSP-13CCTW48R-MW |
