DIMMER 9-48V DC, LED- 96W WITH PUSH-BUTTON SWITCH POLAR WHITE GLOSSY, INTEGRO FLOW, NO CONTACT
171436712509 D
- Availability:
-
No
- Total: 1
Related items

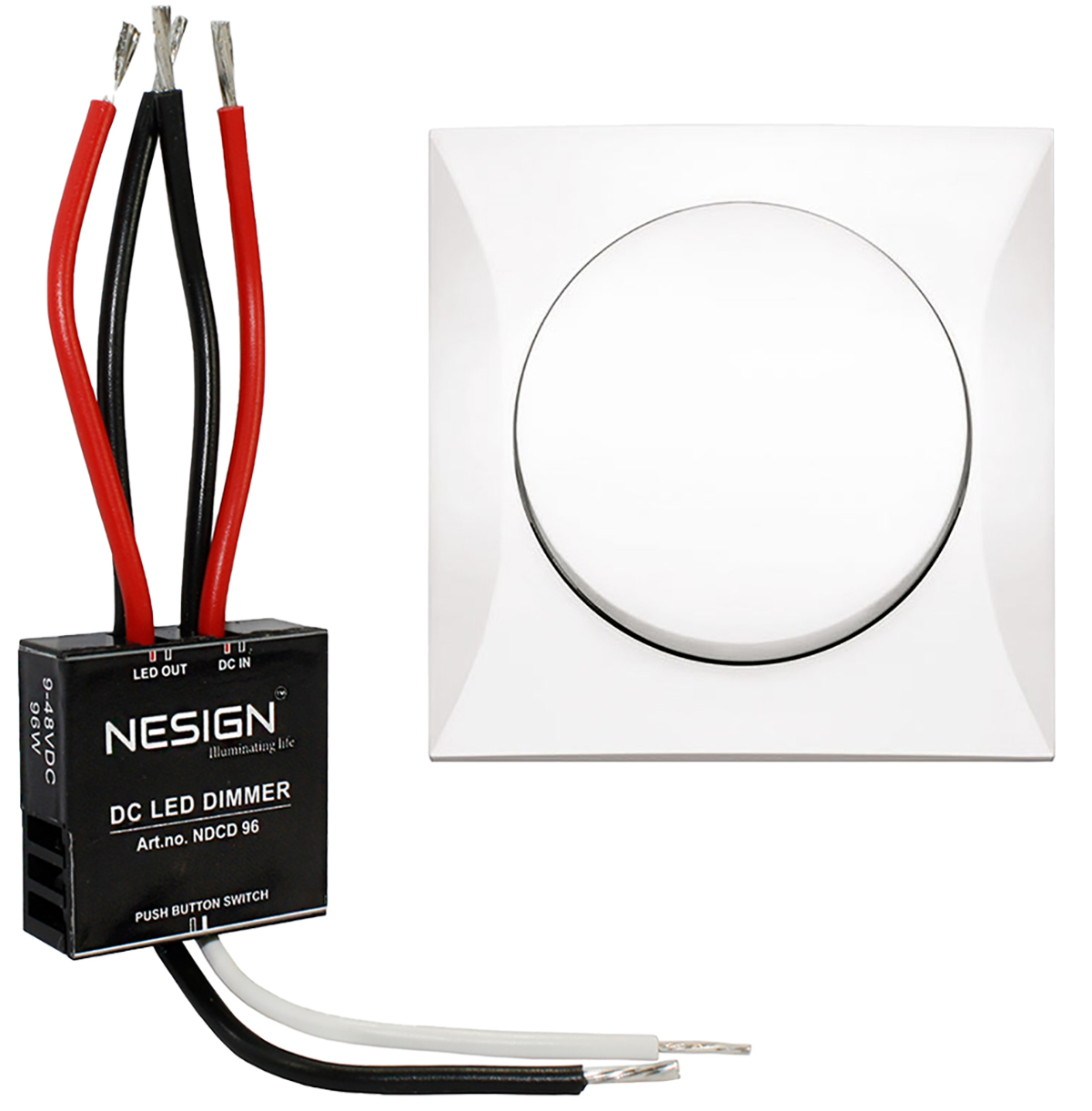

DC dimmer with Berker Integro rocker push-button
DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips.
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
- Total: 1
Product Properties
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | 733117637033 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | 171436712509 D |
| Taric code | 85389099 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000025 - Dimmer |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NESIGN |
| Product Group | Dimmers |
| Search Description | DIMMER 9-48V DC, 96W MED TRYCKKNAPPSBRYTARE |
| Alternative SKU | 171436712509D |
Compliance
| REACH | No SVHC (Latest. 07 Nov 2024) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
