AS SC-235 TL20
Assortment box of 175pcs, Releasable Splicing connectors
AS SC-235 TL20
- Availability:
-
Yes
- Total: 1
Related items

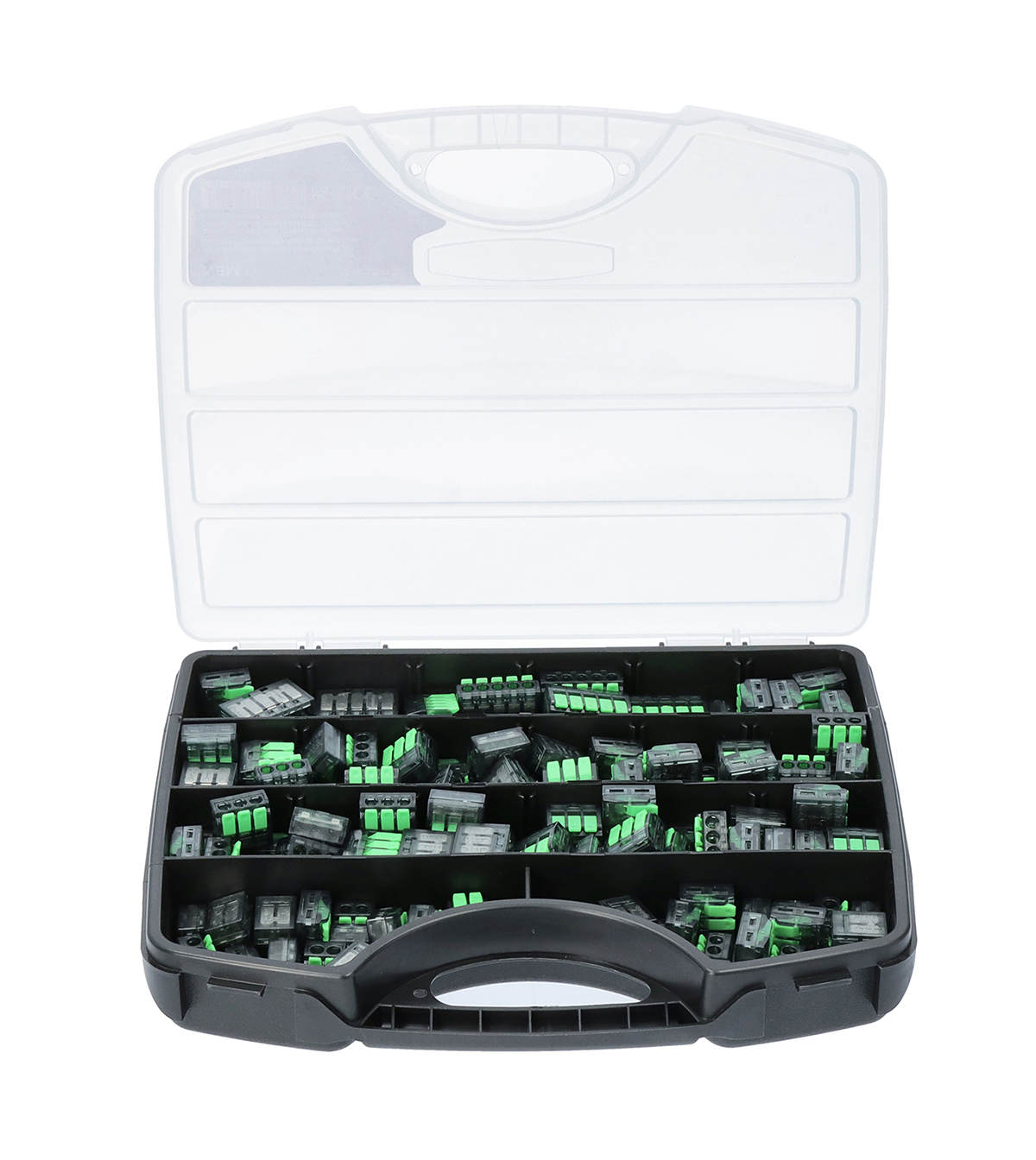

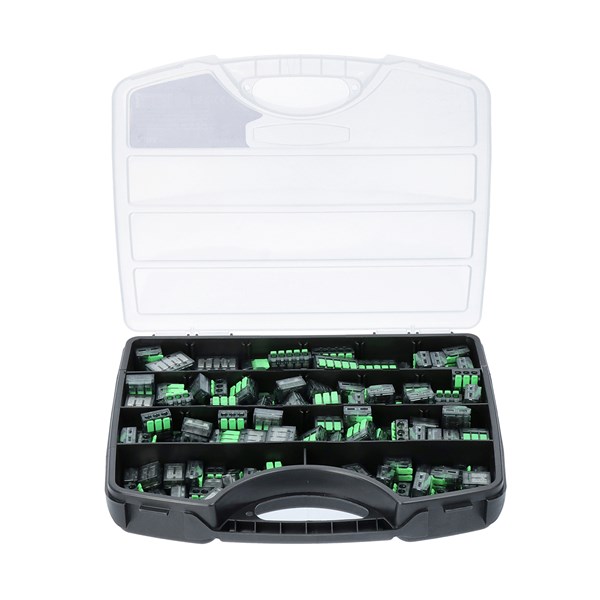

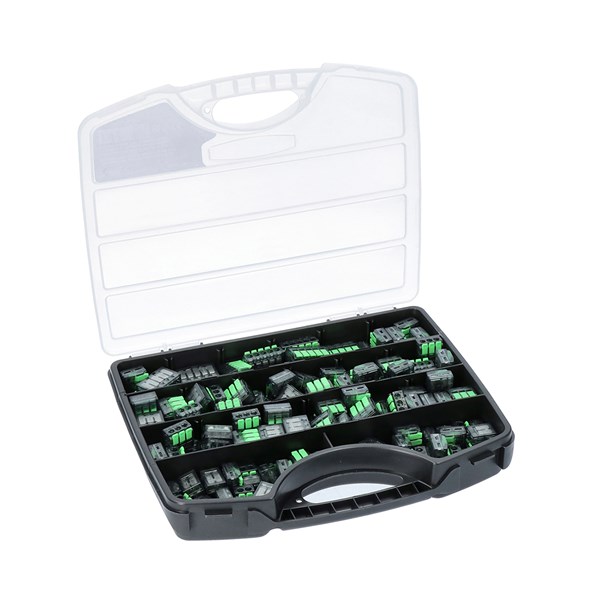

Assortment box with Splicing Connectors - 175 pieces

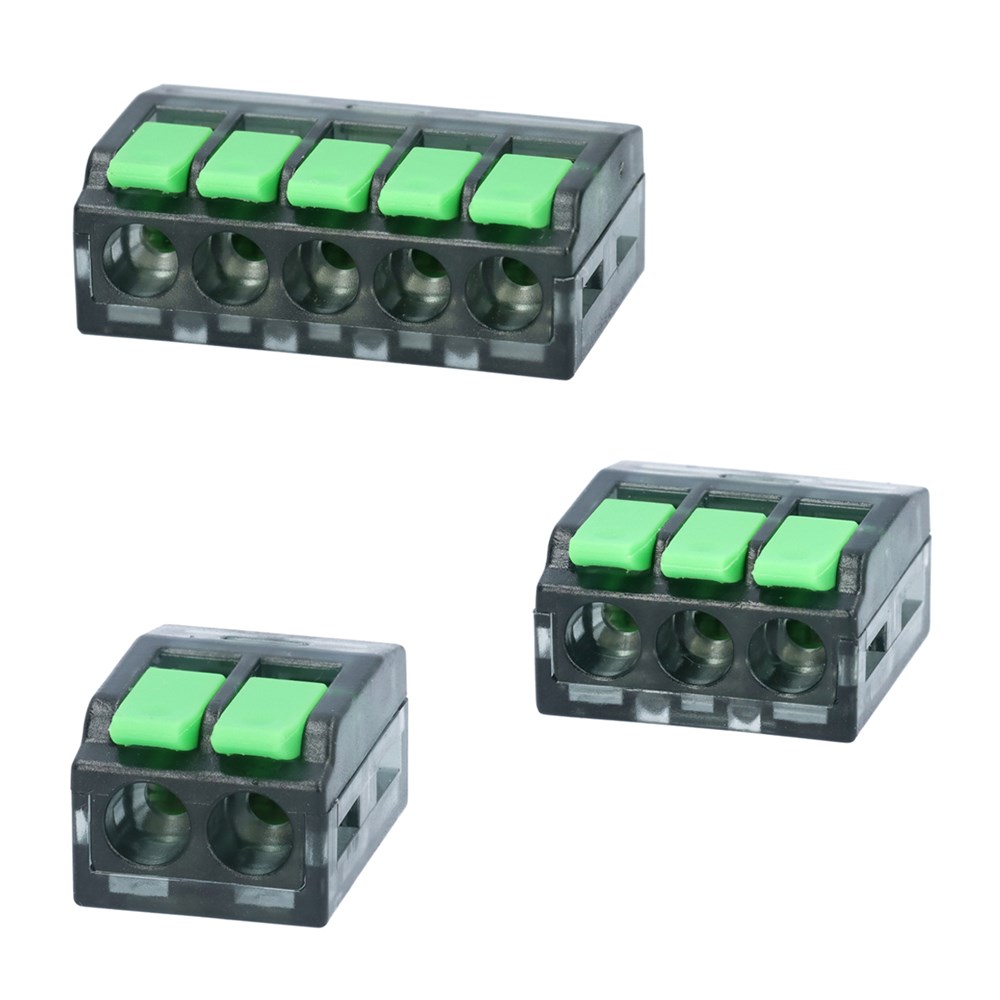

Splicing connectors for both solid and stranded cable.
Transparent cover for easy inspection of connector. No tool needed. Solid cables can be pushed in without opening the lever.
Stripping range: 11 mm

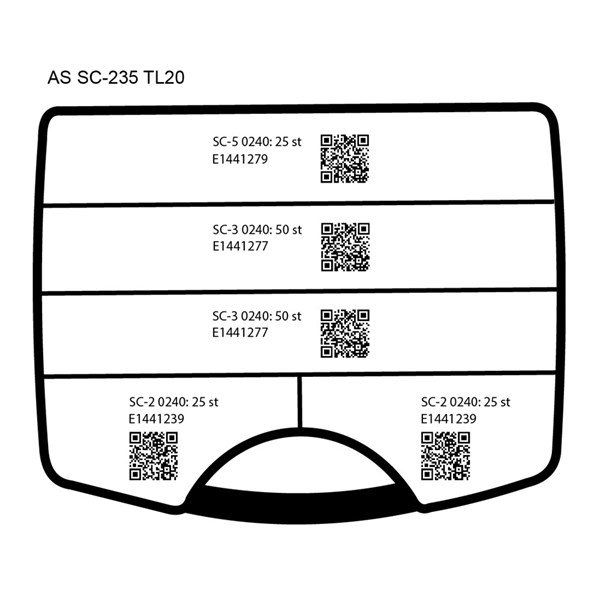

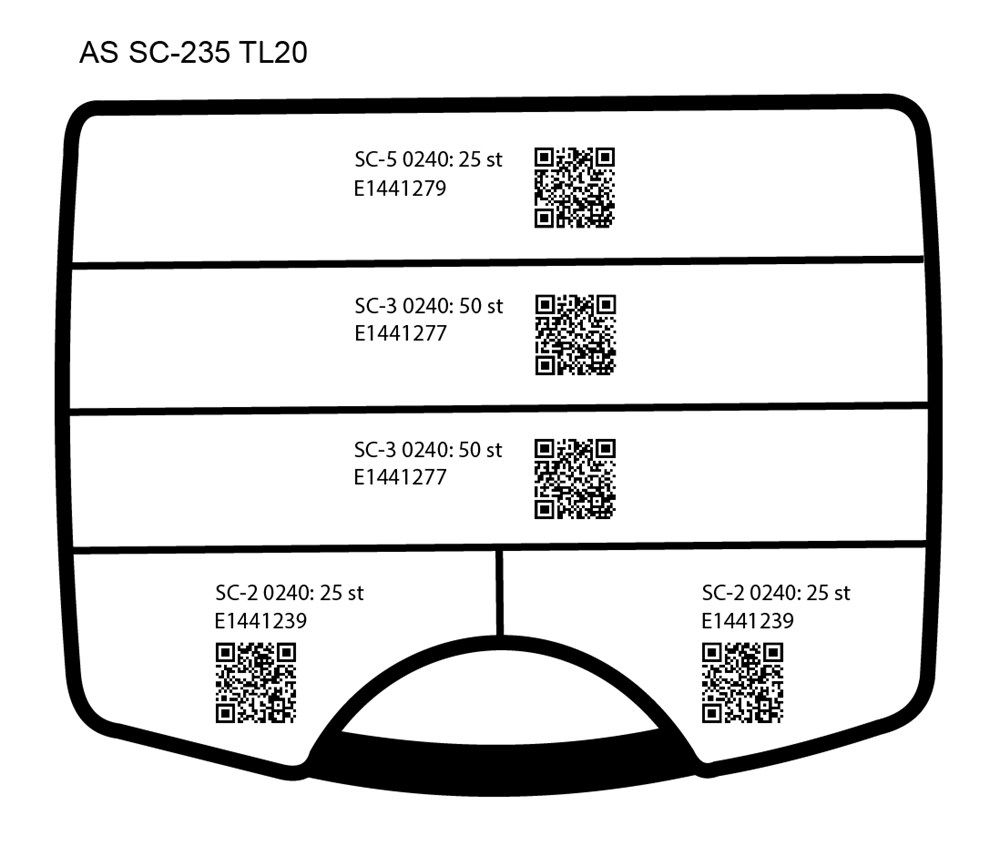

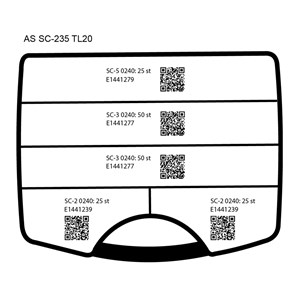

Delivered in box TL20 and contains:
SC-2 0240: 50 pcs
SC-3 0240: 100 pcs
SC-5 0240: 25 pcs
- Total: 1
E1441329
Product Properties
| Nominal voltage | 450 V |
|---|---|
| Nominal current | 32 A |
| Transparent | Yes |
| Number of clamp positions | 2-5 . |
| With operation lever | Yes |
| Suitable for solid core | Yes |
| Suitable for flexible core | Yes |
| Suitable for multi-wire core | Yes |
| Colour | Green |
Product video
Dimensions
| Cable diameter | 1-4 mm |
|---|---|
| Conductor cross section flexible (fine-strand) with cable end sleeve | 0.2-4 mm² |
| Conductor cross section solid (solid, stranded) | 0.2-4 mm² |
| MOQ | 1 . |
| Unit | pcs |
| Nominal cross section | 0.2-4 mm² |
| AWG-range | 28-12 . |
| Nominal voltage | 450 V |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117641337 |
|---|---|
| Country of origin | CN |
| E-no | E1441329 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | AS SC-235 TL20 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
Compliance
| REACH | No SVHC (Latest. 21 Jan 2025) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN (EU) | No CLASS |
| ECCN (US) | EAR99 |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000446 - Screwless terminal |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Splicing Connectors - Assortment Boxes |
| Search Description | SKV2024ERIK3 ENR2023H |
| Alternative SKU | ASSC-235TL20 |
| E-no | E1441329 |
