KRT 16-4 UI
CABLE LUG KRT - NO INSPECTION HOLE 16mm2, M4
KRT 16-4 UI
- Availability:
-
Yes
- Total: 1
Related items
KRT 10-400mm² without inspection hole
Meets the measure requirements according to DIN 46235. Copper tube lugs for stranded (class 5 and class 6) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4ยต Sn
Inscriptions on the lugs neck can for ie be: 12

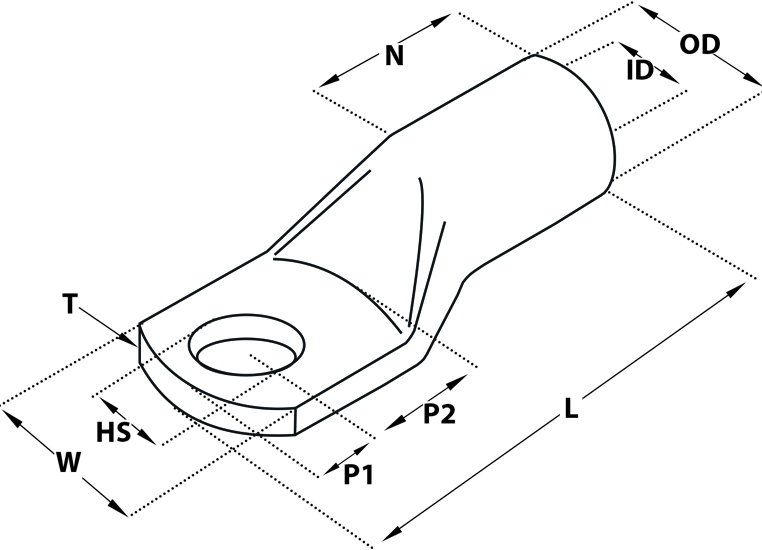

12 = Outside diameter of the neck (F).
When crimping with hexagon dies neck inscription and die markings must conform.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Suitable for Class 5 conductor | Yes |
| Max Temp | 150 °C |
| Surface protection | Tinned |
Dimensions
| MOQ | 100 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | 733117614178 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Stock code | KRT 16-4 UI |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs |
| Search Description | SKV2023ERIK |
| Alternative SKU | KRT16-4UI |
Compliance
| REACH | No SVHC (Latest. 07 Nov 2024) |
|---|---|
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
