KRD 630-00

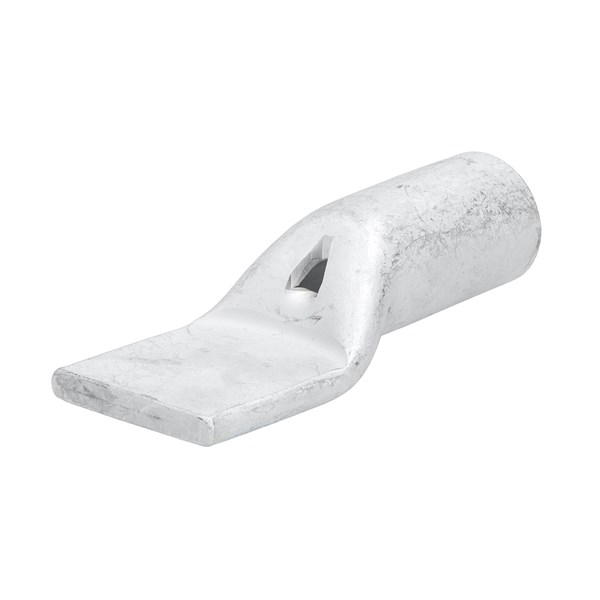

CABLE LUG KRD 630mm2, NO HOLE
KRD 630-00
- Availability:
-
Yes
- Total: 1
Related items
KRD - 16-630mm²
Copper tube lugs for stranded cable. (Class 2)
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the lugs palm can for ie be: n35-12D
n = nemiq // 35 = 35 mm² wire // 12 = M12 stud size // D = KRD
Inscriptions on the lugs neck can for ie be: 11
11 = Outside diameter of the neck (OD).
When crimping with hexagon dies neck inscription and die markings must conform.
- Total: 1
Product Properties
| Suitable for Class 2 conductor | Yes |
|---|---|
| Insulated | No |
| Max. current (Imax) | 1027 A |
| Number of mounting holes | 1 . |
| Flange shape | Ring shape |
| Colour insulation | Other |
| Slender flange model | No |
| With sight-hole | Yes |
| Conductor category | Several |
| Max Temp | 150 °C |
| Surface protection | Tinned |
| Material | Copper |
| Connecting angle | 180° (horizontal) |
| Series | KRD/KSD(10-630mm2) |

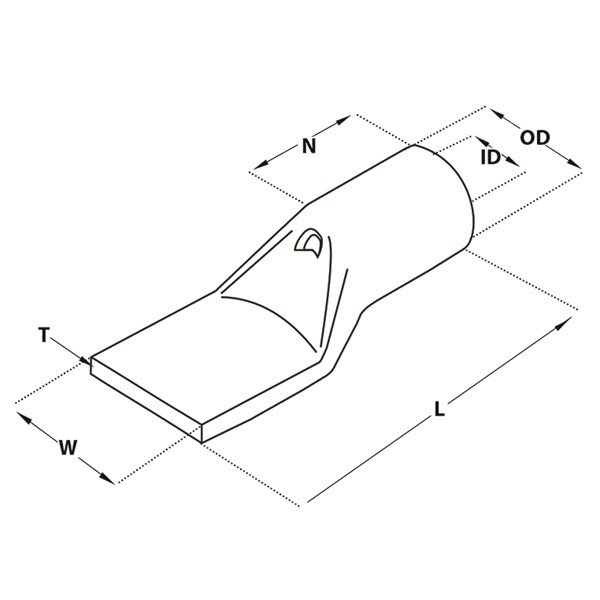

Dimensions
| ID | 34 mm |
|---|---|
| OD | 45 mm |
| T | 11 mm |
| L | 160 mm |
| N | 62 mm |
| W | 65 mm |
| MOQ | 2 . |
| Unit | pcs |
| Bolt dimension (metric) | 0 . |
| Nominal cross section | 630 mm² |
Logistics
| Barcode | 733117612327 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 2 . |
| Stock code | KRD 630-00 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001051 - Tube cable lug for copper conductors |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable lugs |
| Alternative SKU | KRD630-00 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
