050570-4

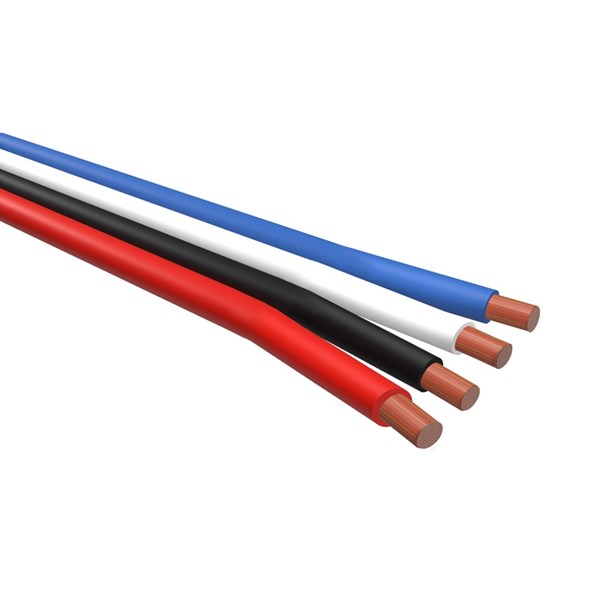

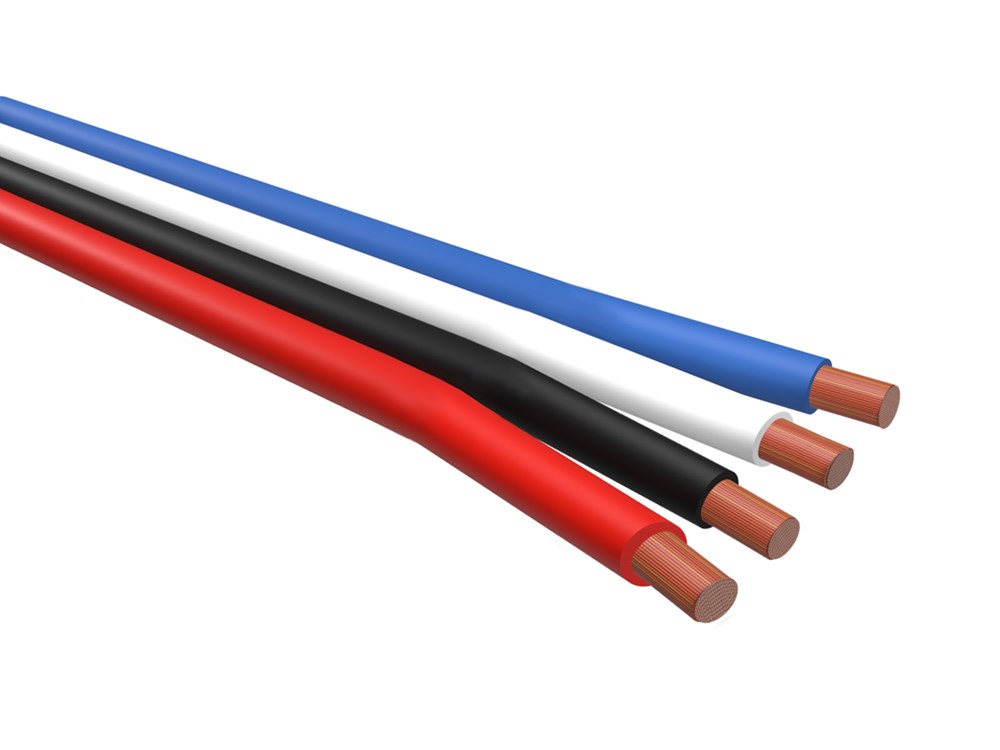

RKUB, 4x0.75mm2, RED/BLACK/WHITE/BLUE SPOOL B5, 60V, PVC, 70C
050570-4
- Availability:
-
Yes
- Total: 1
Related items
RKUB Multi conductor
Connection cable for car and boat applications. The cable comes on spool of 50 m or 100 m. See table below.
Packaging (OD x Hub x Width):
Spool B3: 160mm x 56mm x 50mm
Spool B4: 160mm x 56mm x 90mm

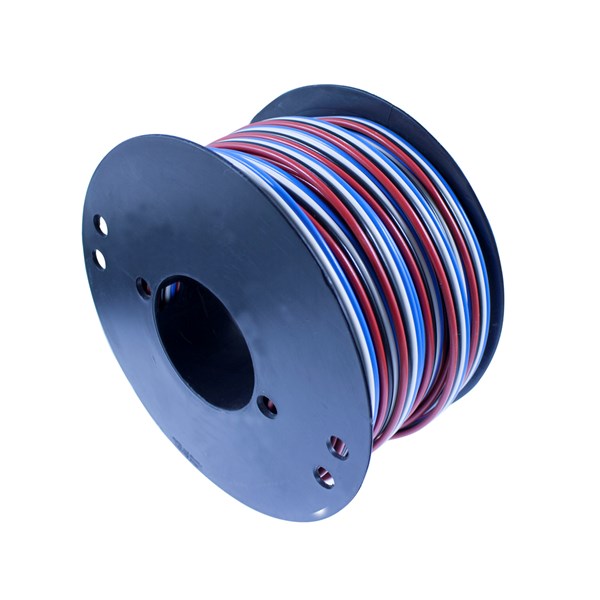

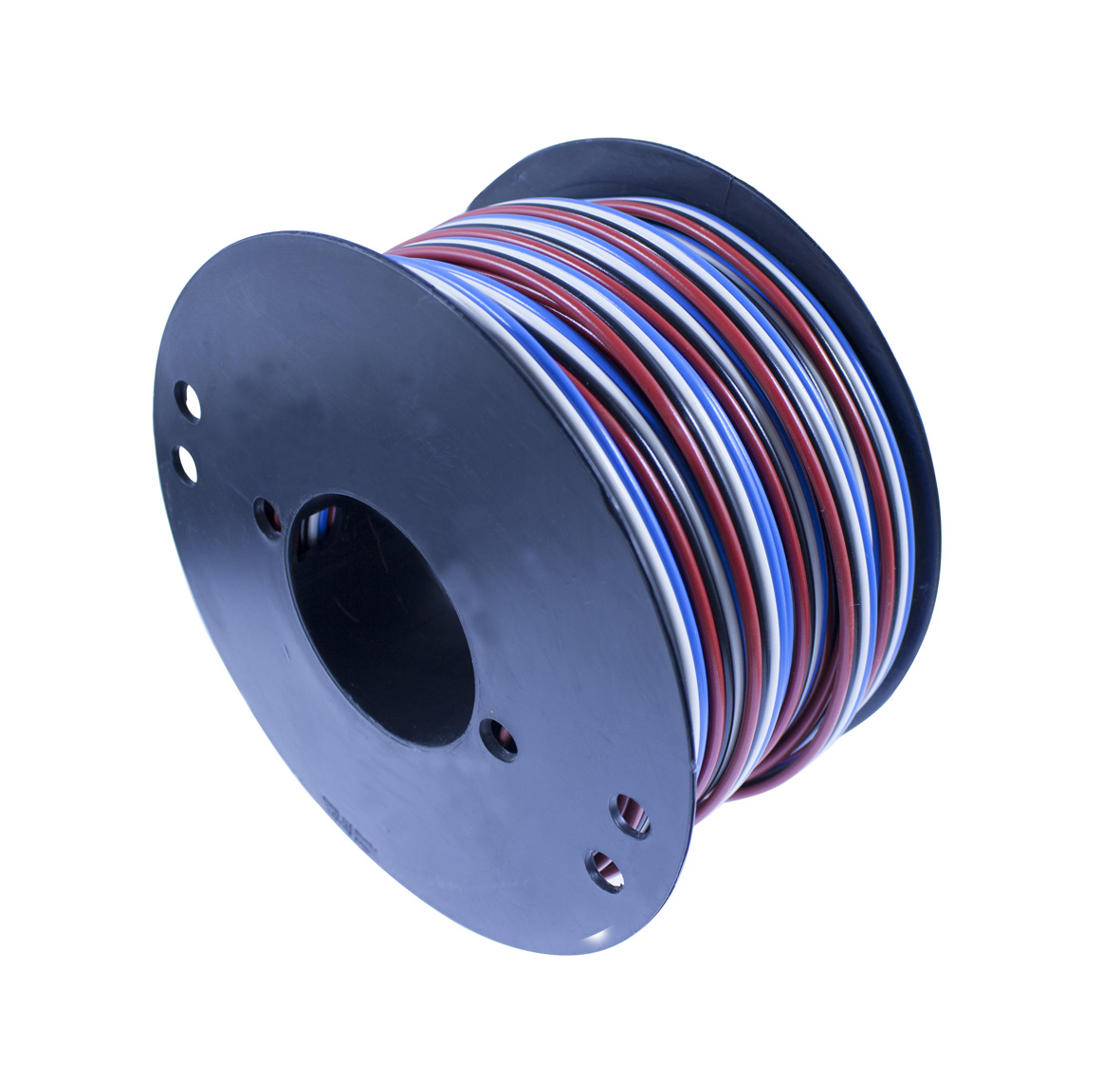

Spool B5: 200mm x 56mm x 88mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Core identification: According to table below
Technical data:
Rating voltage: 60V
Temperature range: -25ºC to +70ºC (-13ºF to +158ºF)
- Total: 1
Product Properties
| Number of cores | 4 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | Colour |
| Protective conductor | No |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Specification material outer sheath | Other |
| Colour outer sheath | Other |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -30-70 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 70 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Nominal voltage | 60 V |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Single insulated |
| Colour | Red/Black/White/Blue |
| Operating temperature | -25-70 °C |
| Core colour | Several |
| Conductor surface | Bare |
| Packaging | Reel B5 |
| Min. permitted bending radius, stationary application/permanent installation | 40 mm |
Dimensions
| Nominal cross section conductor | 0.75 mm² |
|---|---|
| MOQ | 100 . |
| Outer diameter approx. | 10 mm |
| Min. permitted bending radius, stationary application/permanent installation | 40 mm |
| Diameter conductor | 0.75 mm |
| Unit | m |
| Nominal voltage | 60 V |
Logistics
| Barcode | 733117636172 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Packaging | Reel B5 |
| Stock code | 050570-4 |
| Taric code | 85444995 |
| Unit | m |
Approvals
| Reaction-to-fire according to EN 13501-6: Class | N/A |
|---|---|
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | - |
| Product Group | Cable - RKUB, Multi-conductor, Red copper |
| Alternative SKU | 050570-4 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| POPs | Compliance |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | Compliance |
