0810015
R3IB, 2x1.5mm2, BLACK B6,TPU/XHFFR-40 +125 °C AUTO ISO6722 CL.C 100V
0810015
- Availability:
-
No
- Total: 1
Related items

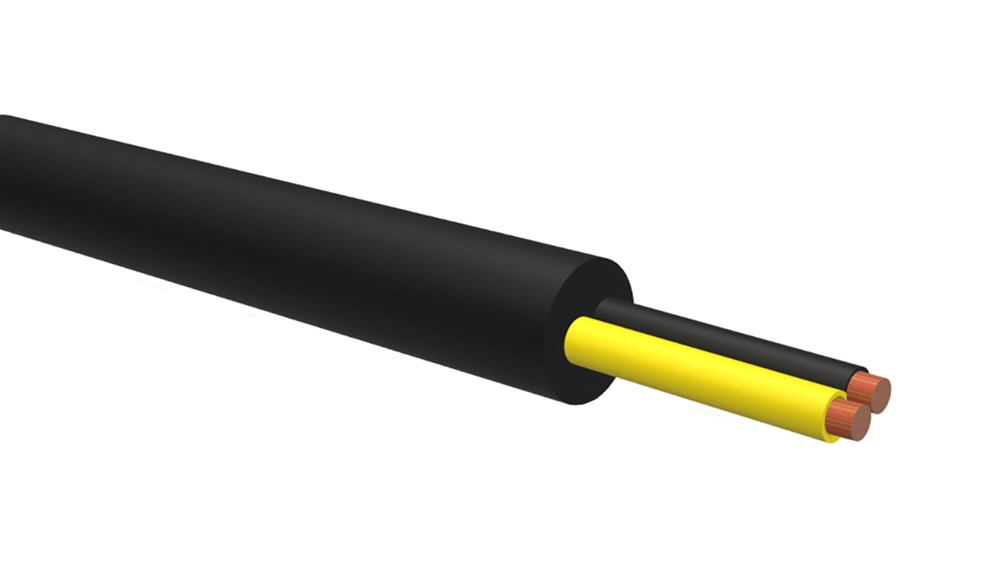

R3IB - Multi conductor
Flame retardant thermoplastic cable, suitable for vehicles
use on low voltage applications and systems, even in hot environments,
without direct contact of heat sources on the cable. Heat-resistant cable, suitable for applications inside the engine compartment.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Construction:
Conductor: Annealed multi-wire copper class 3
Leader insulation: XHFFR
Sheath color: Black
Conductor color: See product data
Technical data:
100V
Temp. range: -40ºC to + 125ºC
Approvals:
ISO 6722 class C
- Total: 1
Product Properties
| Single insulated/Double insulated | Single insulated |
|---|
Dimensions
| MOQ | 2000 . |
|---|---|
| Unit | m |
Logistics
| Barcode | 733117636593 |
|---|---|
| Country of origin | SE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 2000 . |
| Stock code | 0810015 |
| Taric code | 85444995 |
| Unit | m |
| Units per parcel | 801304 |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Cable - R3IB, Multi-conductor, Red copper |
| Search Description | R3IB, 2X1.5MM2,SVART LEDARFÄRG:GUL,SVART |
| Alternative SKU | 0810015 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
