050993-43

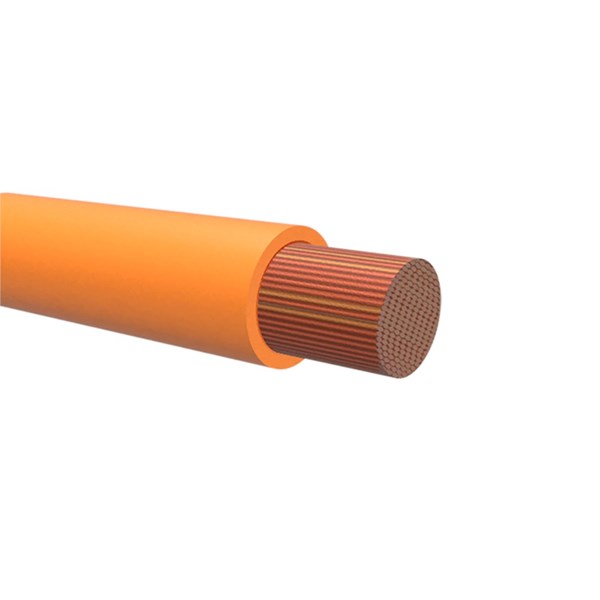

R2G4, 1.0mm2, ORANGE SPOOL B6, 100V, PVC, 100C
050993-43
- Availability:
-
Yes
- Total: 1
Related items
R2G4 - 400 m spool 1-color
Thin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
- Total: 1
Product Properties
| Number of cores | 1 . |
|---|---|
| Permitted cable outer temperature after assembling without vibration | -40-100 °C |
| Max. conductor temperature | 100 °C |
| Min. permitted bending radius, stationary application/permanent installation | 10.5 mm |
Dimensions
| Nominal cross section conductor | 1 mm² |
|---|---|
| MOQ | 400 . |
| Outer diameter approx. | 2.1 mm |
| Min. permitted bending radius, stationary application/permanent installation | 10.5 mm |
| Diameter conductor | 1 mm |
| Unit | m |
Logistics
| Barcode | 733117641656 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 400 . |
| Stock code | 050993-43 |
| Taric code | 85444995 |
| Unit | m |
Approvals
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Product Group | R2G4, Single Conductor, Red copper |
| Search Description | R2G4, 1.0MM2, ORANGE |
| Alternative SKU | 050993-43 |
Compliance
| POPs | No POPs |
|---|---|
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
