050035-2

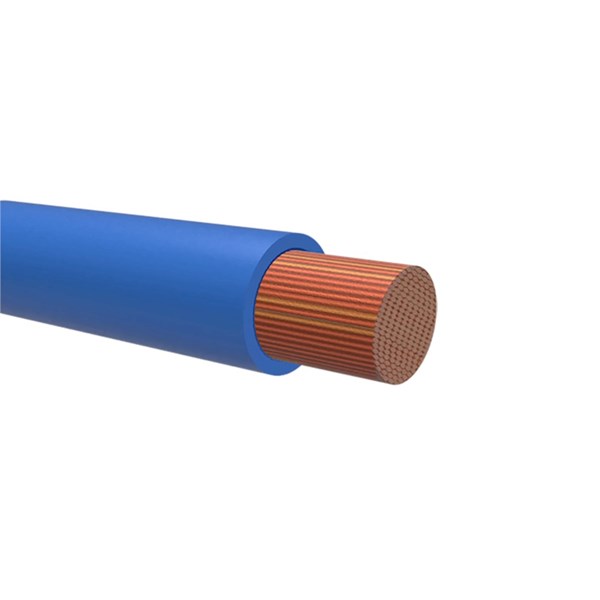

R2G4, 0.35mm2, BLUE SPOOL B6, 100V, PVC, 100C
050035-2
- Availability:
-
Yes
- Total: 1
Related items
R2G4 - 400 m spool 1-color
Thin-walled car cable with PVC insulation and fine wire copper conductors for maximum 100ºC conductor temperature.
Packaging (OD x Hub x Width):
Spool B6: 250mm x 56mm x 95mm
Structure
Conductor: Blank stranded copper
Conductor insulation: PVC
Conductor identification: Multiple color combinations
Technical data:
Rating voltage: 100V
Temperature range: -40ºC to +100ºC (-40ºF to +212ºF)
Approvals: According to Volvo 7613 R2, 111 / 3
- Total: 1
Product Properties
| Number of cores | 1 . |
|---|---|
| Material core insulation | Polyvinyl chloride (PVC) |
| Specification core insulation | Other |
| Core identification | None |
| Protective conductor | No |
| Material outer sheath | None |
| Specification material outer sheath | Other |
| Colour outer sheath | Blue |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -40-100 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 100 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Nominal voltage | 100 V |
| Halogen free | No |
| Conductor category | Class 5 = flexible |
| Single insulated/Double insulated | Single insulated |
| Colour | Blue |
| Operating temperature | -40-100 °C |
| Core colour | Blue |
| Conductor surface | Bare |
| Packaging | Reel B6 |
| Min. permitted bending radius, stationary application/permanent installation | 7 mm |
Dimensions
| Nominal cross section conductor | 0.35 mm² |
|---|---|
| MOQ | 400 . |
| Outer diameter approx. | 1.4 mm |
| Min. permitted bending radius, stationary application/permanent installation | 7 mm |
| Diameter conductor | 0.35 mm |
| Unit | m |
| Nominal voltage | 100 V |
Logistics
| Barcode | 733117640303 |
|---|---|
| Country of origin | SE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 400 . |
| Packaging | Reel B6 |
| Stock code | 050035-2 |
| Taric code | 85444995 |
| Unit | m |
Approvals
| Approved according to Volvo R2 7613, 111/3 | Yes |
|---|---|
| Reaction-to-fire according to EN 13501-6: Class | N/A |
| Reaction-to-fire according to EN 13501-6: Smoke production | N/A |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | N/A |
| Reaction-to-fire according to EN 13501-6: Acidity | N/A |
| Halogen free | No |
| Low smoke (according to EN 61034-2) | No |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant according to EN IEC 60811-404 | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CE | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | R2G4, Single Conductor, Red copper |
| Alternative SKU | 050035-2 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | N/A, Contains no conflict minerals |
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
