360 view
2671

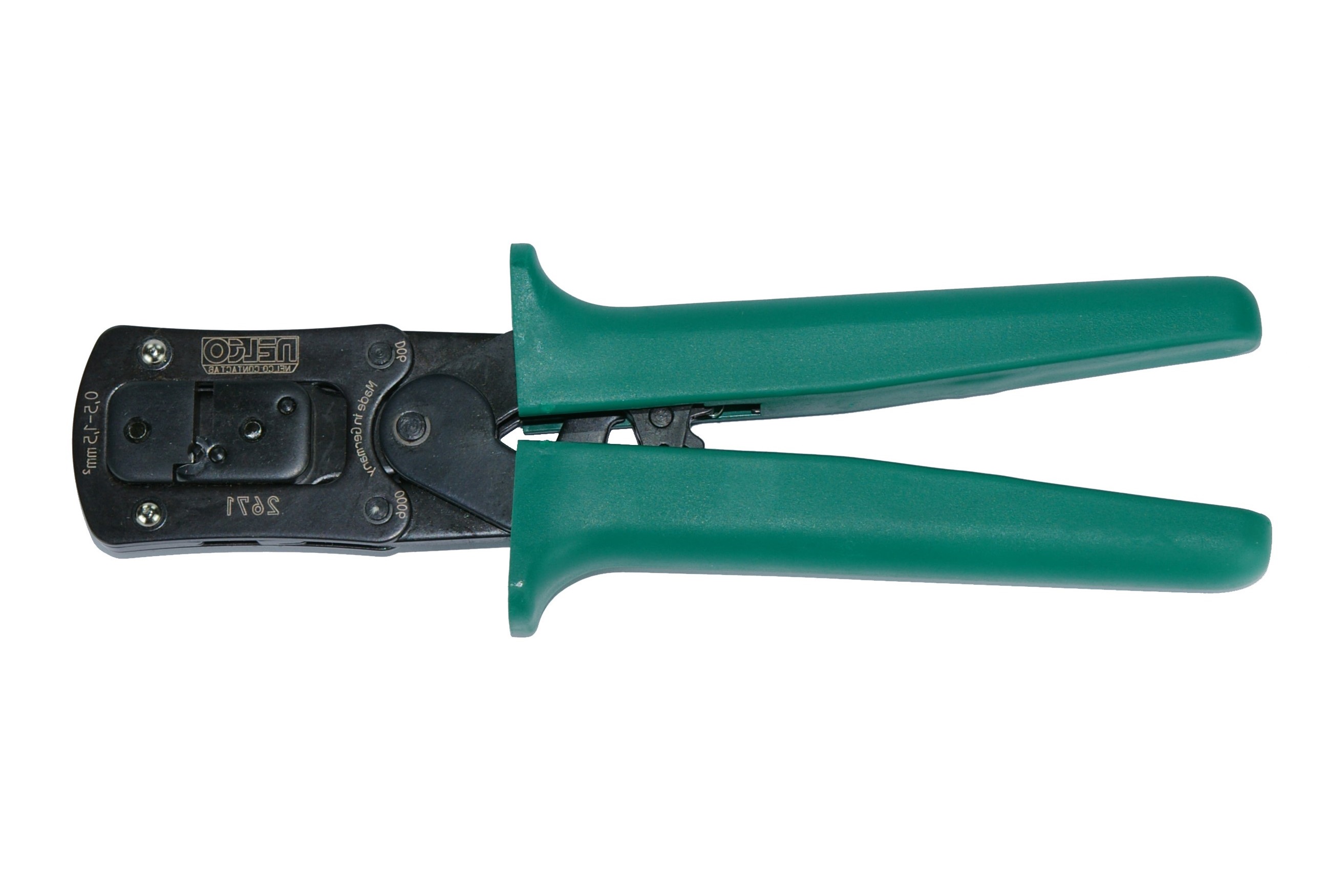

CRIMP TOOL UNINSULATED FLAG TERMINALS 0.5-1.5mm2, FLB, CSV10-HUVUD
2671
- Availability:
-
Yes
- Total: 1
Related items
Crimp tool – CSV10
Pressverktyg där CVS10-huvudet även kan användas i WDT UP35 och UP60.
En ratchetttång som säkerställer att pressningen fullföljs.
- Total: 1
2671 är ett pressverktyg för oisolerade flaggkabelskor (FLB) från 0.5-1.5 mm². Passar för hylsor med både 4.8 och 6.3 mm bredd.
Längd: 200 mm.
Product Properties
| Number of crimps | 1 |
|---|---|
| With locking device (for mechanical tools) | Yes |
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable lugs and connectors |
| Construction/operation | Mechanical |
| For component | Un-insulated flag terminal |
| Compression shape | Roll compression (shrinking) |
Product video
Dimensions
| Cross section | 0.5-1.5 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 200 mm |
Suitable Tools
Accessories
Product family
Spare Parts
Other Packaging Options
Possible replacement products
Logistics
| Barcode | 733117631581 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | 2671 |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Compliance
| Iron and Steel Sanction | Compliance |
|---|---|
| PFAS | No PFAS |
| PFOA | No PFOA |
| PFOS | No PFOS |
| POPs | Compliance |
| REACH | No SVHC (247 Subs. 21 Jan 2025) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Documents
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | One Hand (ratchet) |
| Search Description | PRESSVERKTYG OISOLERADE FLAGGKABELSKOR |
| Alternative SKU | 2671 |
Generate Datasheet:
