360 view

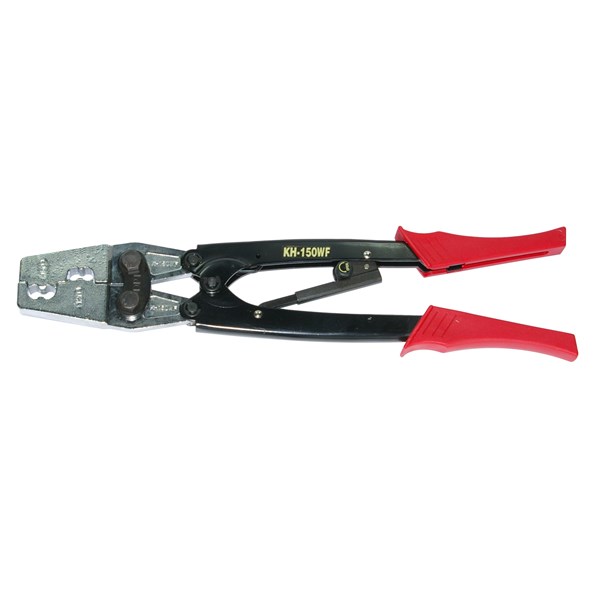

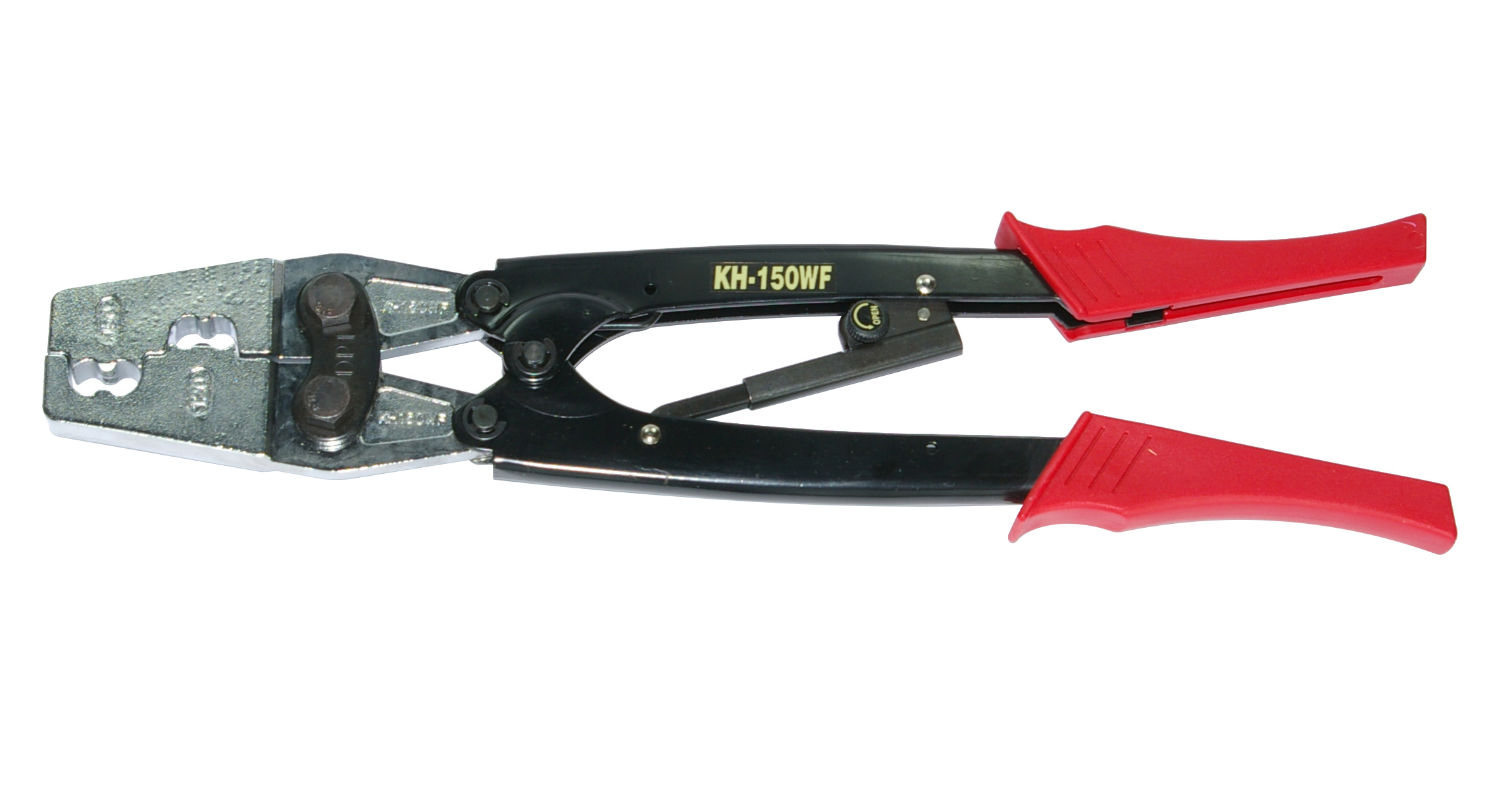

KH 150WF
CRIMP TOOL END-SLEEVES, TRAPEZOID COMPRESSION 120mm2-150mm2
KH 150WF
- Availability:
-
Yes
- Total: 1
Related items

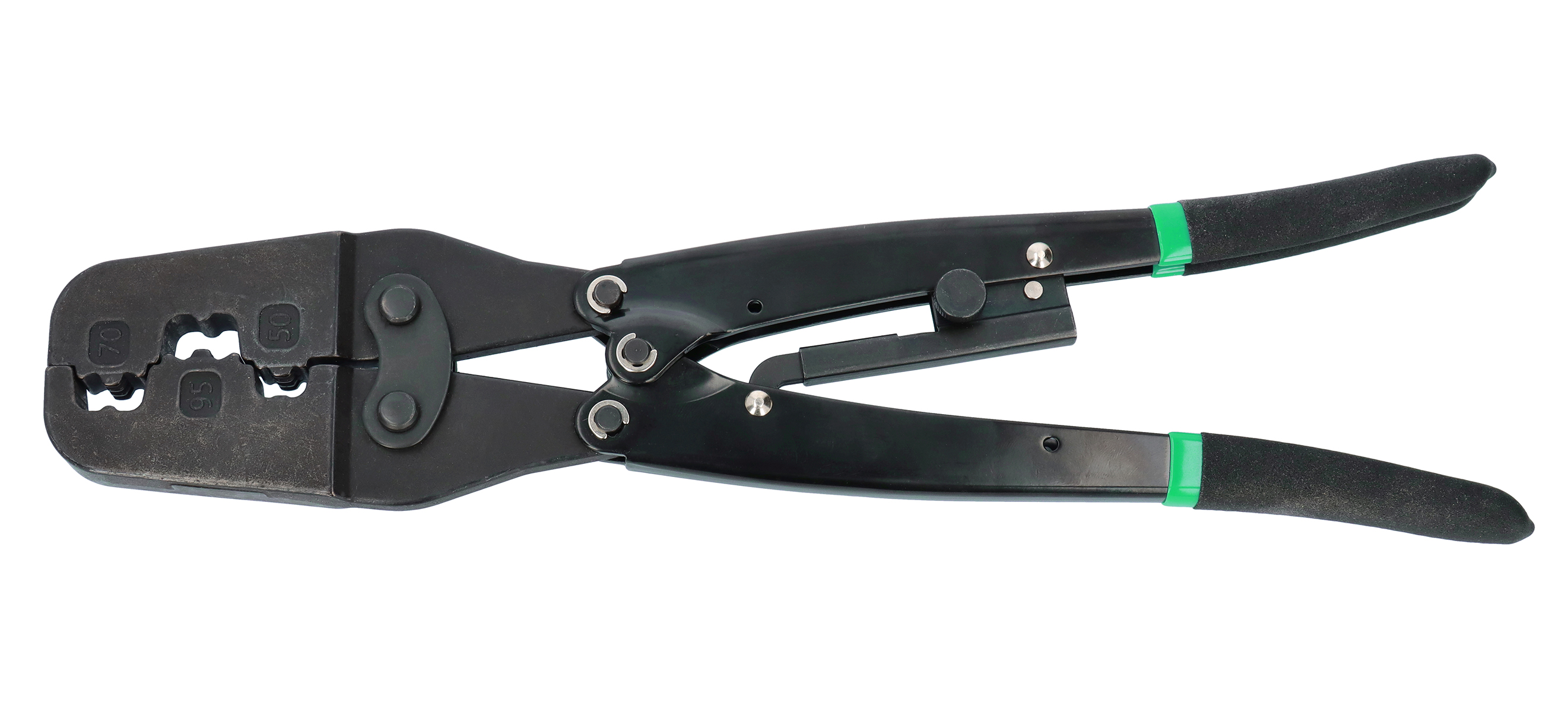

Crimp tools for End-sleeves
KH 55WF / KH 95WF / KH 150WF
3 different crimping tools for end-sleeves.
Type of crimping: Trapezoid crimp
Capacity:
KH 55WF: 10-50 mm²
KH 95WF: 50-95 mm²
KH 150WF: 120-150 mm²
Length: 330 mm / 330 mm / 385 mm
- Total: 1
E1665406
Product Properties
| With locking device (for mechanical tools) | Yes |
|---|---|
| Inserts exchangeable | No |
| Number of included inserts | 1 . |
| With automatic return | Yes |
| Cycle time | 2 s |
| Suitable for | Cable end sleeves |
| Construction/operation | Mechanical |
| For component | End sleeves |
| Compression shape | Trapezoid compression |
Dimensions
| Cross section | 120-150 mm² |
|---|---|
| MOQ | 1 . |
| Unit | pcs |
| Length | 385 mm |
Logistics
| Barcode | 733117636441 |
|---|---|
| Country of origin | TW |
| E-no | E1665406 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | KH 150WF |
| Taric code | 82032000 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Two Hand (mechanical) |
| Search Description | ENR2023V |
| Alternative SKU | KH150WF |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| REACH | No SVHC (Latest. 27 June 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
