NPHT CC85

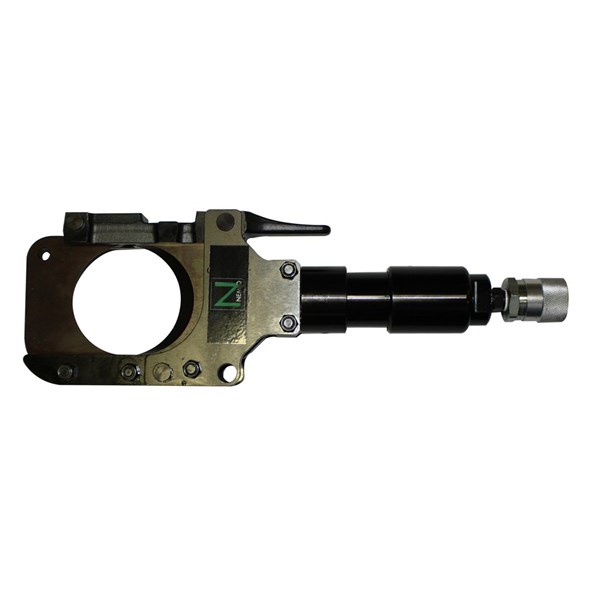

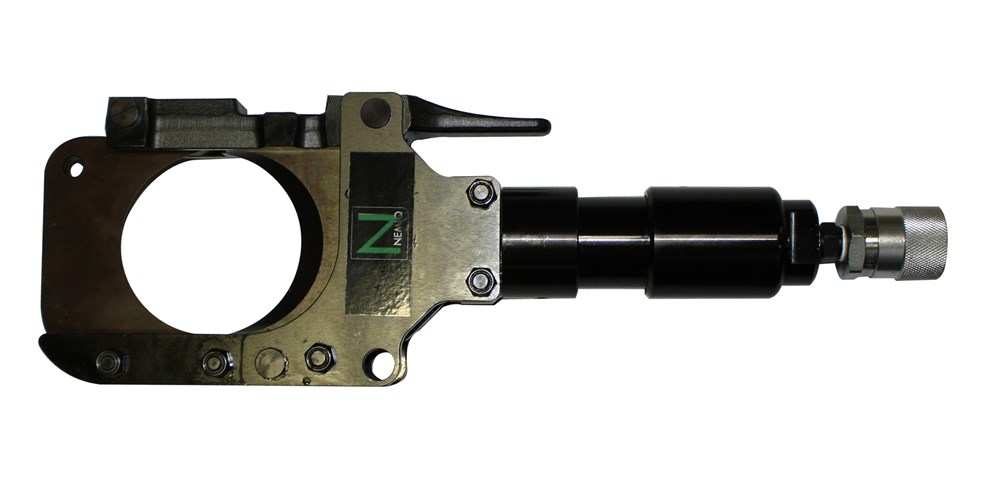

The NPHT CC85 is a hydraulic Cable cutter head equipped with a 3/8 nipple for connection to a foot or hand operated 700 bar hydraulic pump.Copper and aluminum cable.The tool is fitted with a spring-loaded finger cover and comes in a handbag.
Cutting capacity (diameter): 85 mm
Length: 405 mm incl. nipple
Technical properties
- Grip design:
- Other
- With impact protection:
- No
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Hydraulic cutter head
- Isolation protection 1000 V:
- No
- With spring:
- N/A
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
| Product Description | Max. cable cross section | MOQ | Unit | Suitable for max. cable diameter | Total length | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=85mm | 25-700 mm² | 1 . | pcs | 85 mm | 405 mm |
No
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | VDE tested | Isolation protection 1000 V | Availability | ||
|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=85mm | No | No |
No
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Grip design | With impact protection | Suitable for steel wire braiding | Replaceable cutting head | Cutting jaws exchangeable | With strip function | Insulated | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Construction/operation | Isolation protection 1000 V | With spring | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=85mm | Other | No | No | Yes | Yes | No | No | Yes | Yes | Yes | Hydraulic cutter head | No | N/A |
No
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Warranty | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| CABLE CUTTER, PUMP 700 bar MAX D=85mm | EC000142 - Cable shears | 7.0 |
|
1 years | Pump hydraulic | NPHTCC85 |
No
|
|
|
