360 view
ST 23 BS
END-SLEEVE ASSORTMENT, 0.25-1.0mm2 SILVER PLATED
ST 23 BS
- Availability:
-
Yes
- Total: 1
| Product Description | ||||
|---|---|---|---|---|

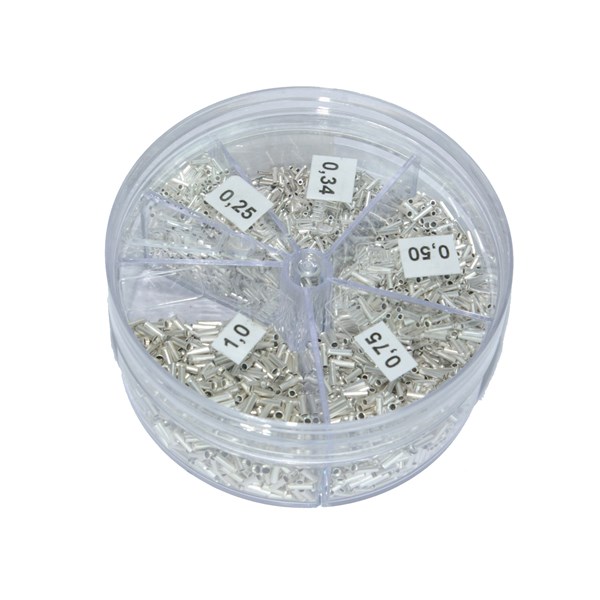

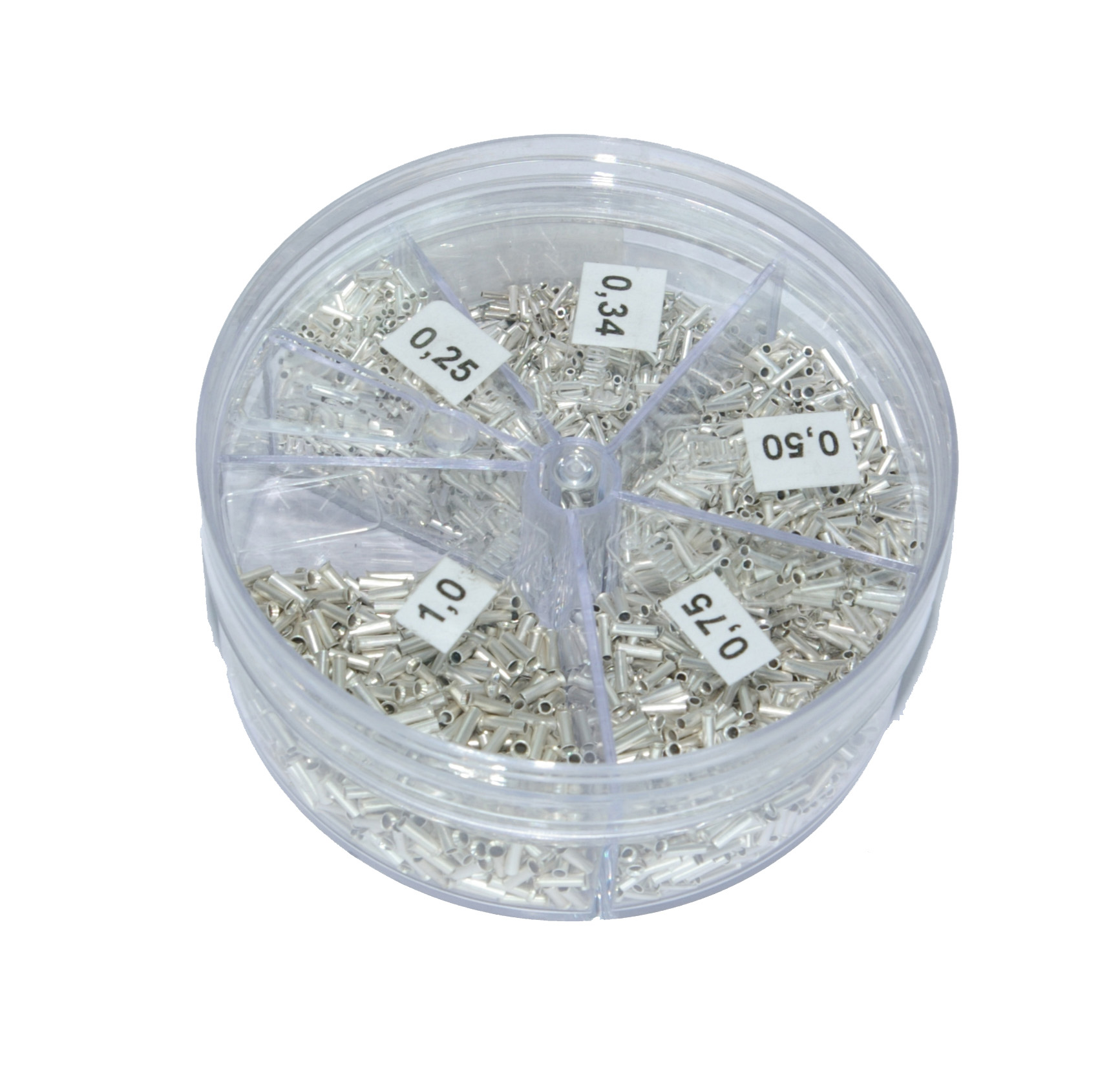

| Assortment box with 5 bins for uninsu lated cord end-sleeves 0.25-1.0 mm² |
|
- Total: 1
- Total: 1
Related items
Assortment box with 5 bins for uninsu lated cord end-sleeves 0.25-1.0 mm²
Content:
1000 pcs 0.25 mm²
1000 pcs 0.34 mm²
1000 pcs 0.5 mm²
500 pcs 0.75 mm²
500 pcs 1.0 mm²
ST 23 B has tin plating and ST 23 BS has
silver plating.
- Total: 1
Product Properties
| Insulated | No |
|---|---|
| Reel/roll packaging | No |
| Construction type | Single-sleeves |
| Colour | Silver, N/A |
| Surface protection | Silver-plated |
| Material | Copper |
| Colour code | CN (N/A) |
| Halogen free | Yes |
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
| Sleeve Length | 5-6 mm |
| AWG size | Other |
| Total length | 5-6 mm |
| Nominal cross section | 0.25-1 mm² |
Logistics
| Barcode | 733117614087 |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | ST 23 BS |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| With approval according to UL | Yes |
|---|
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Assortment, end-sleeves |
| Alternative SKU | ST23BS |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| RoHS | RoHS 3 (2015/863) |
