ST 3 B DIN
END-SLEEVE ASSORTMENT, 0.25-1.0mm2 DIN
ST 3 B DIN
- Availability:
-
Yes
- Total: 1
Related items

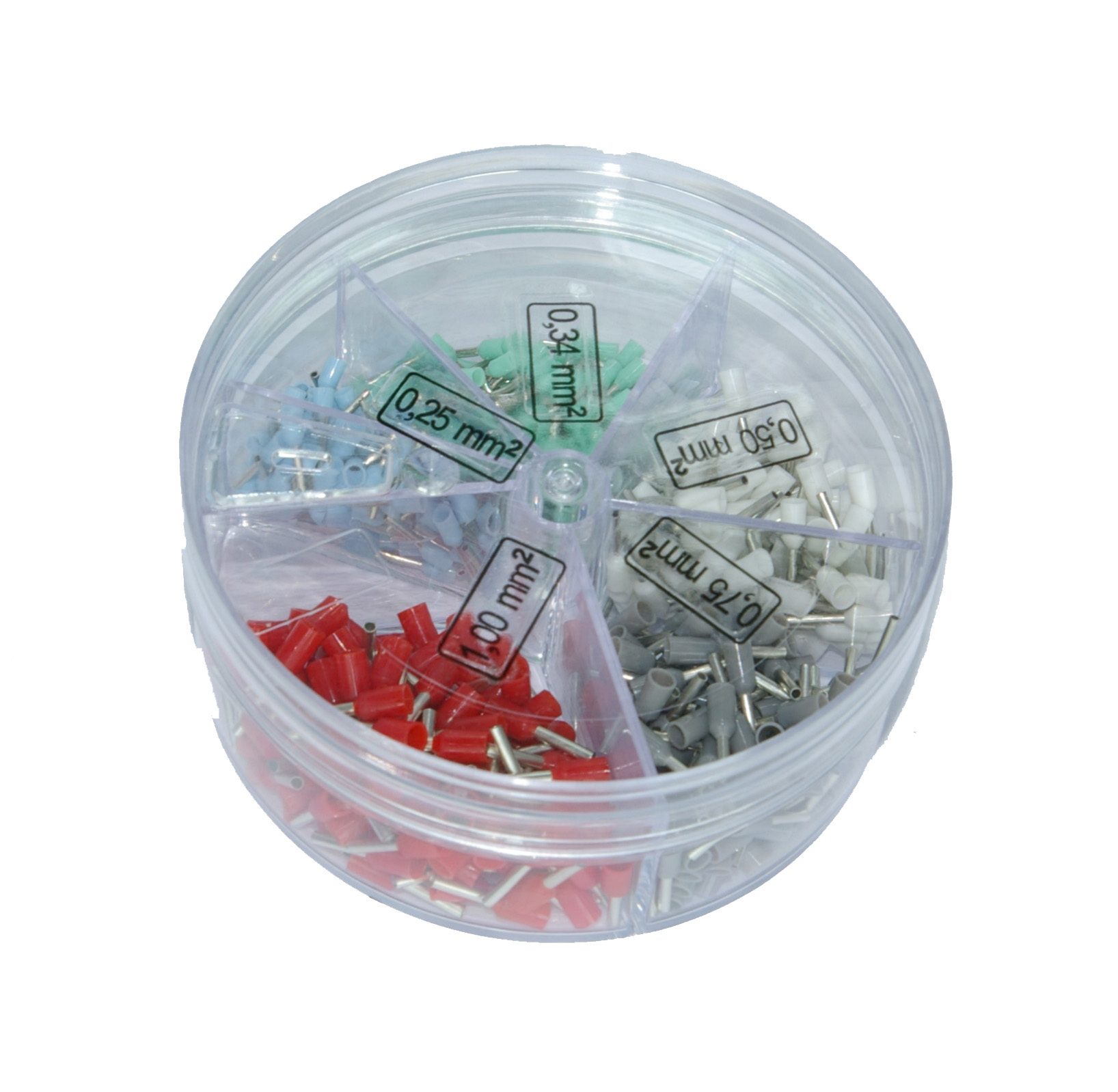

Assortment box with 5 bins for cord endsleeves 0.25-1.0 mm²
Content in ST 3 B (Old german colour line):
30 pcs 0.25 mm² light blue
30 pcs 0.34 mm² turquoise
30 pcs 0.5 mm² orange
30 pcs 0.75 mm² white
30 pcs 1.0 mm² yellow
Content in ST 3 B DIN:
30 pcs 0.25 mm² light blue
30 pcs 0.34 mm² turquoise
30 pcs 0.50 mm² white
30 pcs 0.75 mm² gray
30 pcs 1.00 mm² red
- Total: 1
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | No |
| Construction type | Single-sleeves |
| Colour | Other, N/A |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CED/CTD (DIN) |
| Halogen free | Yes |
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
| Sleeve Length | 6-8 mm |
| AWG size | Other |
| Nominal cross section | 0.25-1 mm² |
Logistics
| Barcode | 733117614094 |
|---|---|
| Country of origin | DE |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 1 . |
| Stock code | ST 3 B DIN |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Assortment, end-sleeves |
| Alternative SKU | ST3BDIN |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
