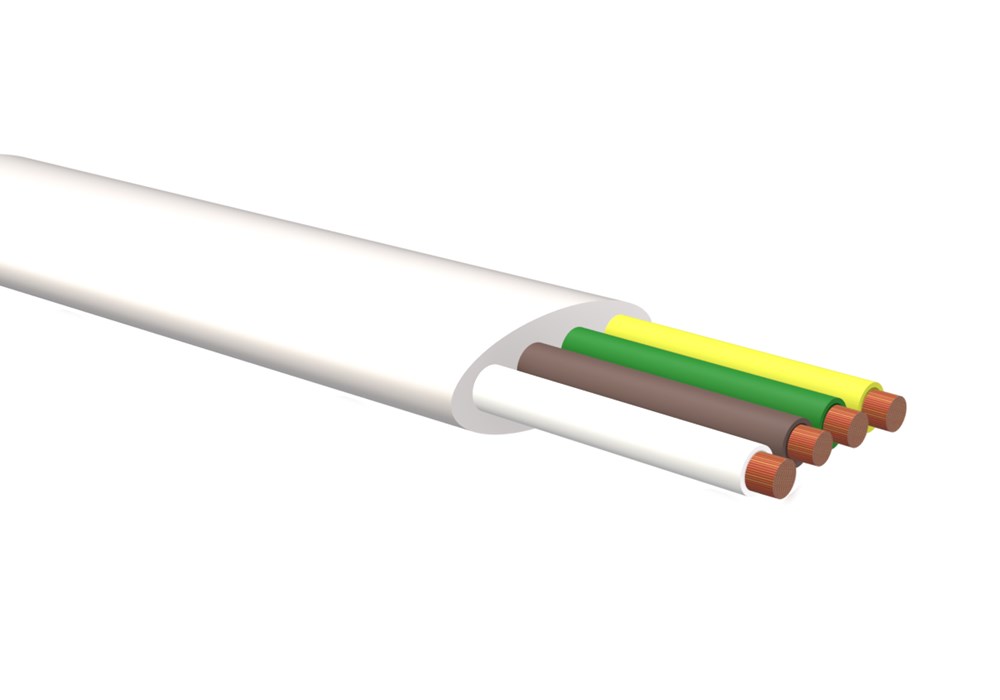

Modularkabel
Technical properties
- Number of cores:
- 4 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyvinyl chloride (PVC)
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Core colour:
- Several
- Conductor surface:
- Bare
- Min. permitted bending radius, stationary application/permanent installation:
- 13.8 mm
Show more
Item List
- Total: 2
- Total: 2
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| MODULAR, 4x0.14mm2, GUL, TRUMMA, | 0.14 mm² | 10000 . | 4.6 mm | 13.8 mm | 0.14 mm | m |
No
|
|
|
| MODULAR, 4x0.14mm2, VIT, TRUMMA, | 0.14 mm² | 10000 . | 4.6 mm | 13.8 mm | 0.14 mm | m |
No
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODULAR, 4x0.14mm2, GUL, TRUMMA, | N/A | N/A | N/A | N/A | No | No | No | No |
No
|
|
|
| MODULAR, 4x0.14mm2, VIT, TRUMMA, | N/A | N/A | N/A | N/A | No | No | No | No |
No
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Halogen free | Conductor category | Core colour | Conductor surface | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODULAR, 4x0.14mm2, GUL, TRUMMA, | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 13.8 mm |
No
|
|
|
| MODULAR, 4x0.14mm2, VIT, TRUMMA, | 4 . | Polyvinyl chloride (PVC) | Other | Colour | No | Polyvinyl chloride (PVC) | Other | Other | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | No | Class 5 = flexible | Several | Bare | 13.8 mm |
No
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| MODULAR, 4x0.14mm2, GUL, TRUMMA, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Modular Cable | 05028694GUL |
No
|
|
|
| MODULAR, 4x0.14mm2, VIT, TRUMMA, | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - Modular Cable | 05028694VIT |
No
|
|
|
- Total: 2
