MKKB
Cable used mainly in motor vehicles as ignition cable. It is built of a multi-wire standard copper conductor and insulation and sheath of standard PVC that can withstand temperature range -25 -C to + 70ºC.
Packaging (YD x Hub x Width)
Bobin B3: 160mm x 56mm x 50mm
Max voltage: 15kV
Outer diameter: 5.2mm

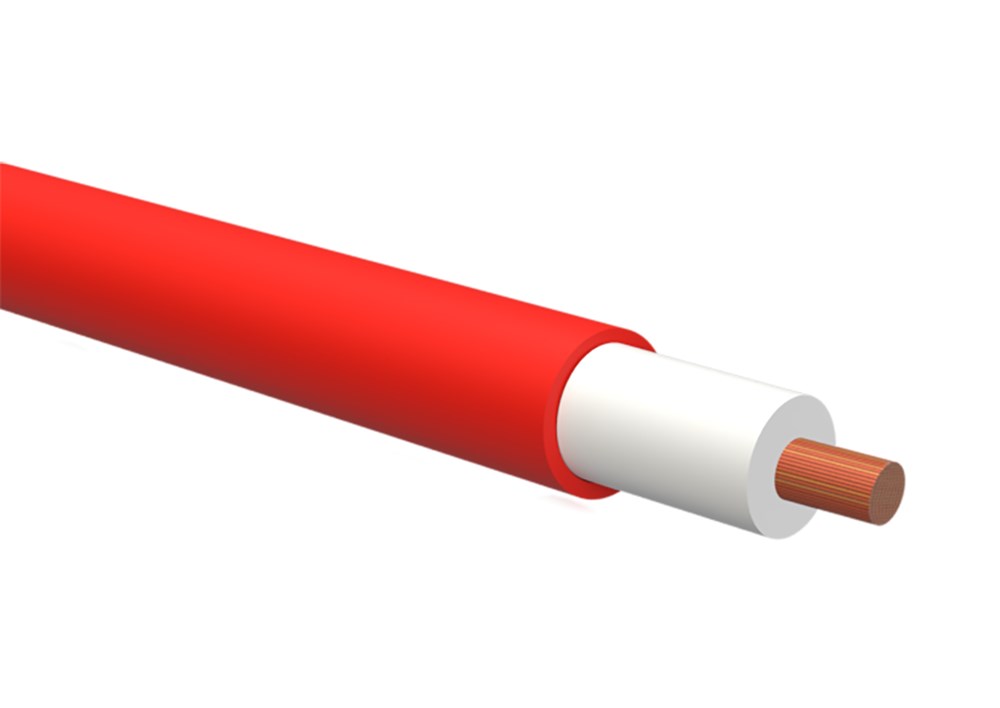

Structure
Conductor: Stranded copper
Outer sheath: PVC, double insulated

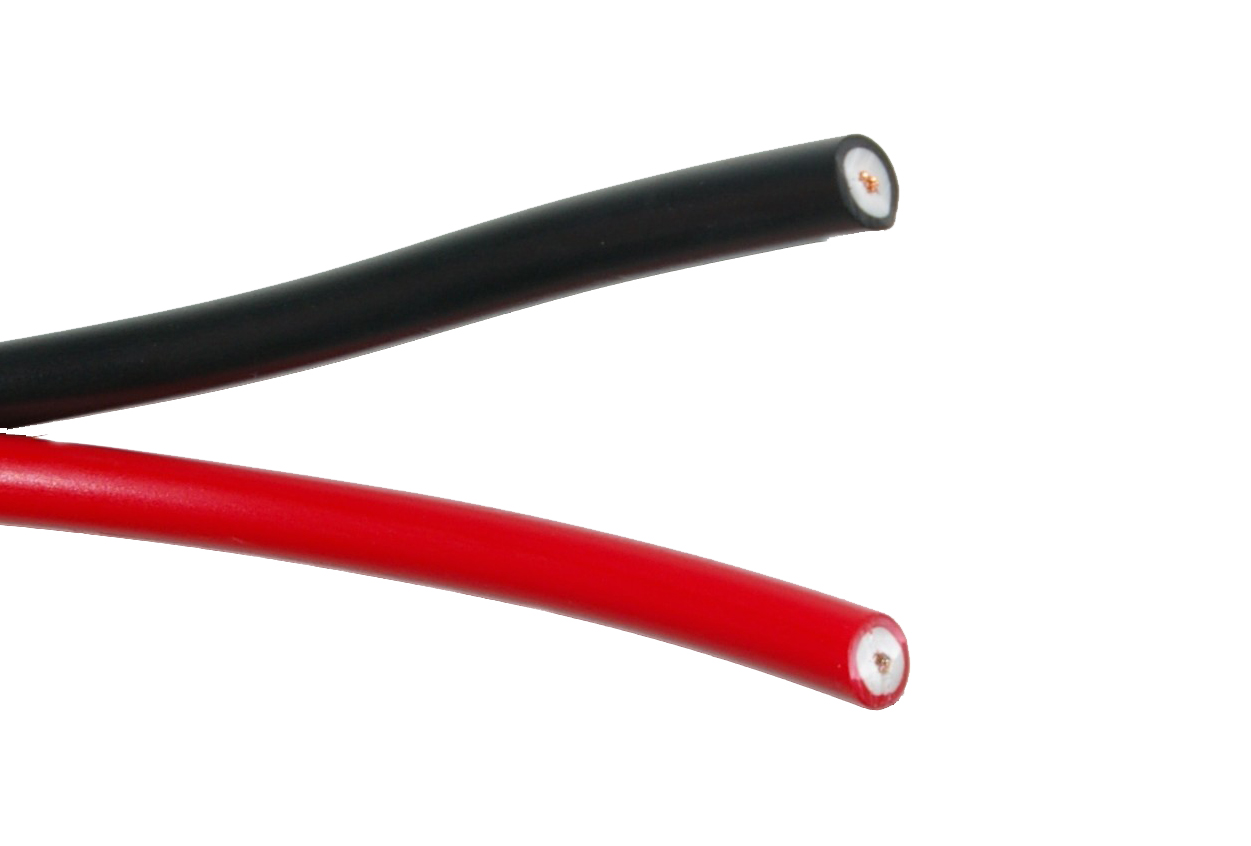

Coat color: Black or Red
Technical properties
- Number of cores:
- 1 .
- Material core insulation:
- Polyvinyl chloride (PVC)
- Specification core insulation:
- Other
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- None
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red, Black
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 70 °C
- Screen:
- No
- Protective barrier:
- N/A
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 60 V
- Halogen free:
- No
- Conductor category:
- Class 5 = flexible
- Single insulated/Double insulated:
- Double insulated
- Colour:
- Red, Black
- Operating temperature:
- -25-70 °C
- Core colour:
- Red, Black
- Conductor surface:
- Bare
- Packaging:
- Reel B3
- Min. permitted bending radius, stationary application/permanent installation:
- 21 mm
Show more
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 2
| Product Description | Nominal cross section conductor | MOQ | Outer diameter approx. | Min. permitted bending radius, stationary application/permanent installation | Diameter conductor | Unit | Nominal voltage | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|
| MKKB, 1.5mm2, RED SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 25 . | 7 mm | 21 mm | 5.2 mm | m | 60 V |
Yes
|
|
|
| MKKB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1.5 mm² | 25 . | 7 mm | 21 mm | 5.2 mm | m | 60 V |
Yes
|
|
|
- Total: 2
Similar Options
Approvals
- Total: 2
| Product Description | Reaction-to-fire according to EN 13501-6: Class | Reaction-to-fire according to EN 13501-6: Smoke production | Reaction-to-fire according to EN 13501-6: Flaming droplets/particles | Reaction-to-fire according to EN 13501-6: Acidity | Halogen free | Low smoke (according to EN 61034-2) | Low temperature resistant (according to EN 60811-504+505+506) | Oil resistant according to EN IEC 60811-404 | Approved according to CE | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MKKB, 1.5mm2, RED SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No |
|
Yes
|
|
|
| MKKB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | N/A | N/A | N/A | N/A | No | No | No | No |
|
Yes
|
|
|
- Total: 2
Technical Properties
- Total: 2
| Product Description | Number of cores | Material core insulation | Specification core insulation | Core identification | Protective conductor | Material outer sheath | Specification material outer sheath | Colour outer sheath | Permitted cable outer temperature after assembling without vibration | Conductor material | Twisted cores | Max. conductor temperature | Screen | Protective barrier | Armouring/reinforcement | Insulation integrity | Drain wire | Nominal voltage | Halogen free | Conductor category | Single insulated/Double insulated | Colour | Operating temperature | Core colour | Conductor surface | Packaging | Min. permitted bending radius, stationary application/permanent installation | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MKKB, 1.5mm2, RED SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Red | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Red | -25-70 °C | Red | Bare | Reel B3 | 21 mm |
Yes
|
|
|
| MKKB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | 1 . | Polyvinyl chloride (PVC) | Other | None | No | None | Other | Black | -30-70 °C | Copper | No | 70 °C | No | N/A | None | N/A | No | 60 V | No | Class 5 = flexible | Double insulated | Black | -25-70 °C | Black | Bare | Reel B3 | 21 mm |
Yes
|
|
|
- Total: 2
Other information
- Total: 2
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| MKKB, 1.5mm2, RED SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - MKKB | 050867 |
Yes
|
|
|
| MKKB, 1.5mm2, BLACK SPOOL B3, 60V, PVC, 70C | EC003248 - Power cable < 1 kV, for permanent installation | 9.0 |
|
Cable - MKKB | 050868 |
Yes
|
|
|
- Total: 2
