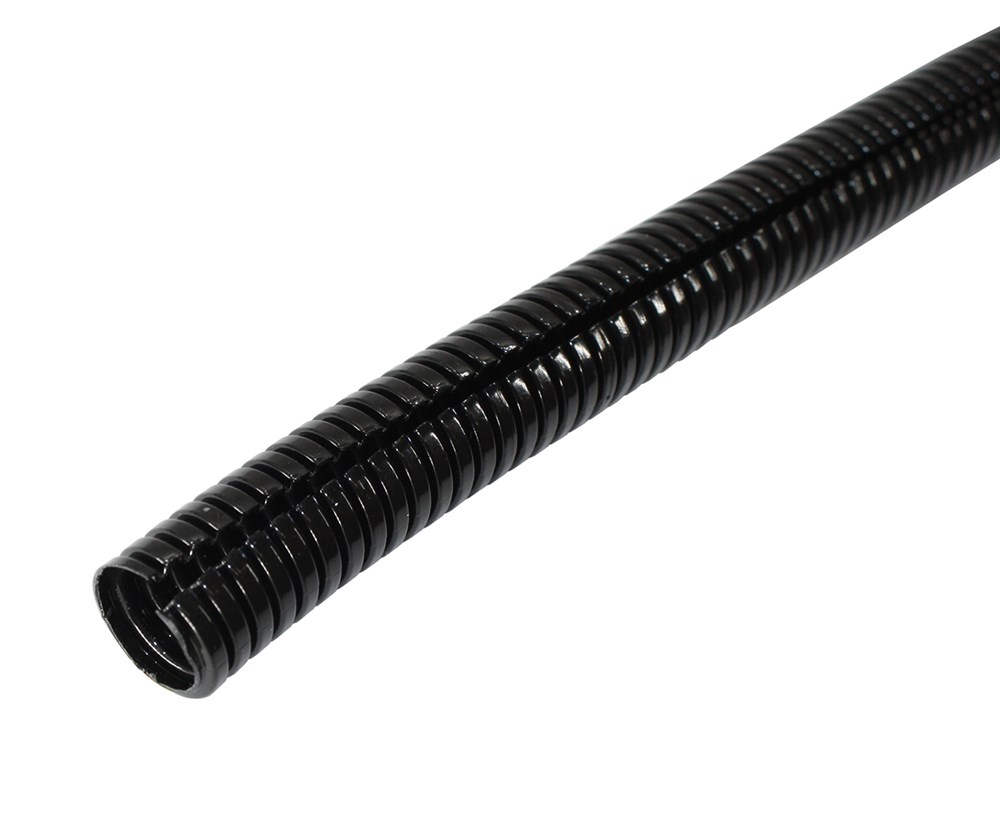

Lightflex slotted, PA6, Automotive Light
Slotted, halogen free, non-flammable, heat-stable and UV resistant. A standard conduit with good flexibility that gives a very good protection for electrical wiring against moisture, dirt and mechanical damage. The material is also resistant to oils, grease, solvents and fuels of various kinds. For the automotive industry, machine and apparatus construction as well as workshops.
Technical properties
- Compressive strength:
- 300 N
- Fire resistance according to UL94:
- HB, V2
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- UV resistant:
- Yes
- Halogen free:
- Yes
Show more
Item List
- Total: 14
- Total: 14
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 14
- Total: 14
Similar Options
Approvals
- Total: 14
- Total: 14
Technical Properties
- Total: 14
| Product Description | Compressive strength | Fire resistance according to UL94 | Oil resistant | Lengthwise slotted | Closable (two-part) | With draw wire | High conducting inner coating | Degree of protection (IP) | Colour | Operating temperature | Material | UV resistant | Halogen free | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW4.5, ID=4.5mm, OD=7.5mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW7.5, ID=6.7mm, OD=10.2mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW8.5, ID=8.4mm, OD=11.7mm | 300 N | HB, V2 | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW10, ID=9.9mm, OD=13.0mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW12, ID=12.2mm, OD=15.7mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW13, ID=12.7mm, OD=15.8mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW16, ID=16.4mm, OD=21.0mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW17, ID=16.6mm, OD=21.2mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW19, ID=19.2mm, OD=23.9mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW22, ID=21.3mm, OD=25.4mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW23, ID=23.2mm, OD=28.3mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW29, ID=29.0mm, OD=34.5mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW36, ID=36.0mm, OD=42.4mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW48, ID=47.7mm, YD=54.5mm | 300 N | HB | Yes | Yes | No | No | No | IP66 | Black | -40-120 °C | Polyamide 6 | Yes | Yes |
Yes
|
|
|
- Total: 14
Other information
- Total: 14
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW4.5, ID=4.5mm, OD=7.5mm | EC001175 - Corrugated plastic hose |
|
Corrugated plastic hose, slotted | LIGHTFLEX4.5S |
Yes
|
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW7.5, ID=6.7mm, OD=10.2mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX7.5S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW8.5, ID=8.4mm, OD=11.7mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX8.5S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW10, ID=9.9mm, OD=13.0mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX10S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW12, ID=12.2mm, OD=15.7mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX12S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW13, ID=12.7mm, OD=15.8mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX13S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW16, ID=16.4mm, OD=21.0mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX16S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW17, ID=16.6mm, OD=21.2mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX17S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW19, ID=19.2mm, OD=23.9mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX19S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW22, ID=21.3mm, OD=25.4mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX22S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW23, ID=23.2mm, OD=28.3mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX23S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW29, ID=29.0mm, OD=34.5mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX29S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW36, ID=36.0mm, OD=42.4mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX36S |
Yes
|
|
|
| CORRUGATED CONDUIT, PA6, BLACK SLITTED NW48, ID=47.7mm, YD=54.5mm | EC001175 - Corrugated plastic hose | 7.0 |
|
Corrugated plastic hose, slotted | LIGHTFLEX48S |
Yes
|
|
|
- Total: 14
