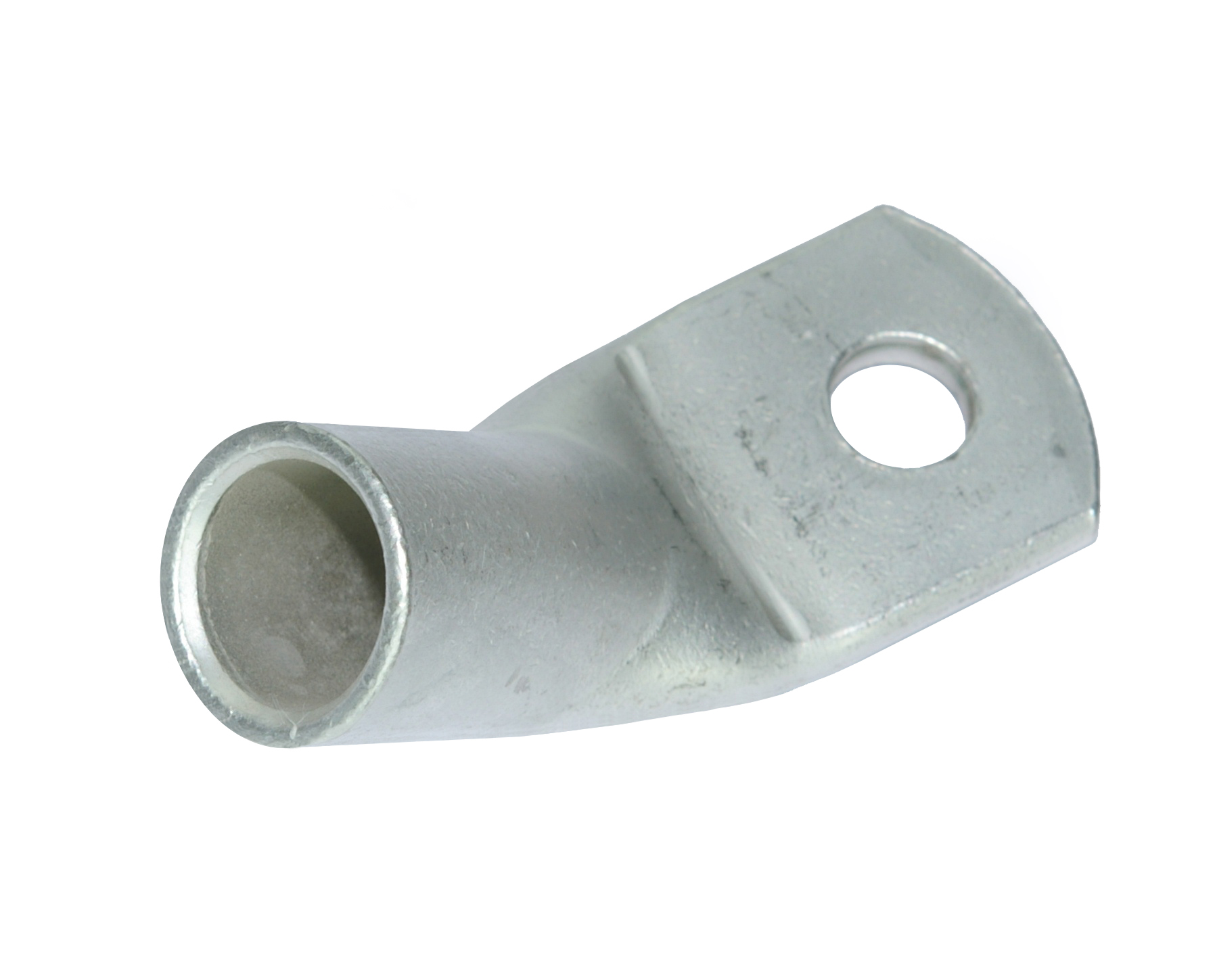

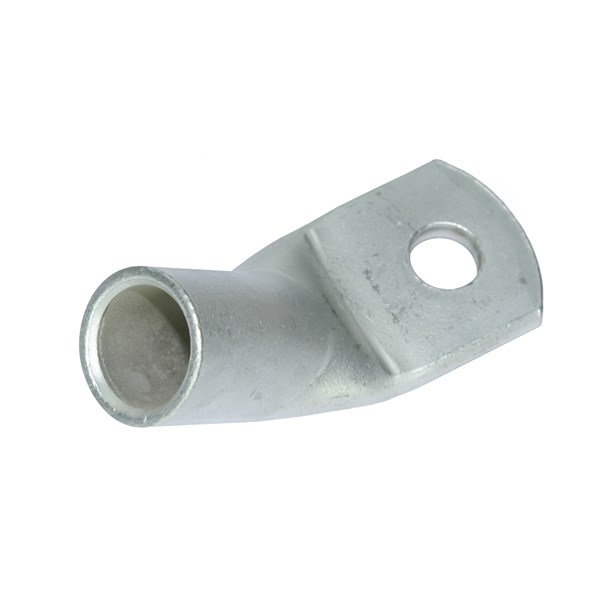

KRT - Cable lugs angled -45º

Copper tube lugs for stranded (class 5) and solid wires (class 2).

Material: 99.9% pure copper
Surface: > 4µ Sn

Inscriptions on the lugs palm can for ie be: n35-12T
n = nemiq // 35 = 35 wire // 12 = M12 stud size. // T = KRT, F = KRF, D = KRD

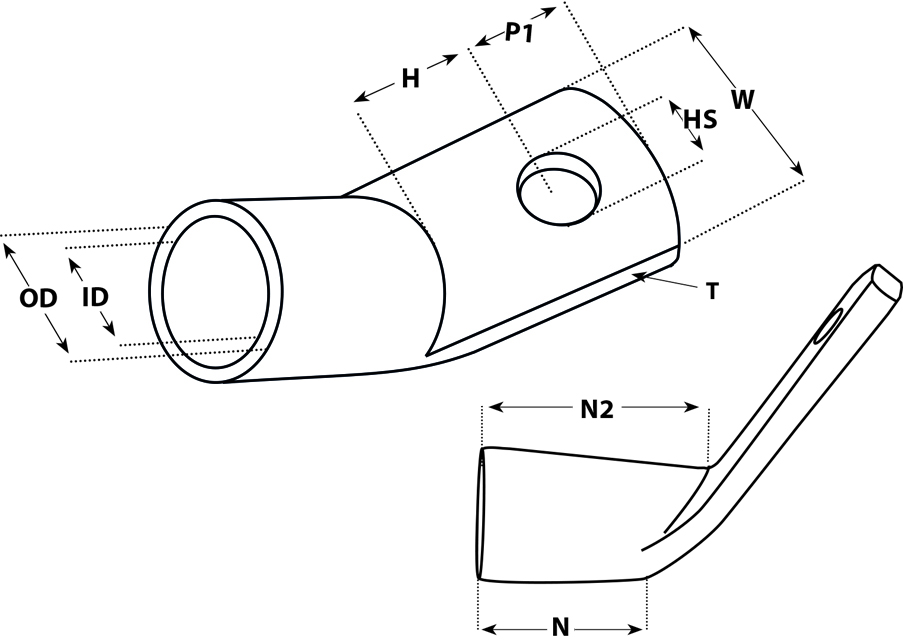

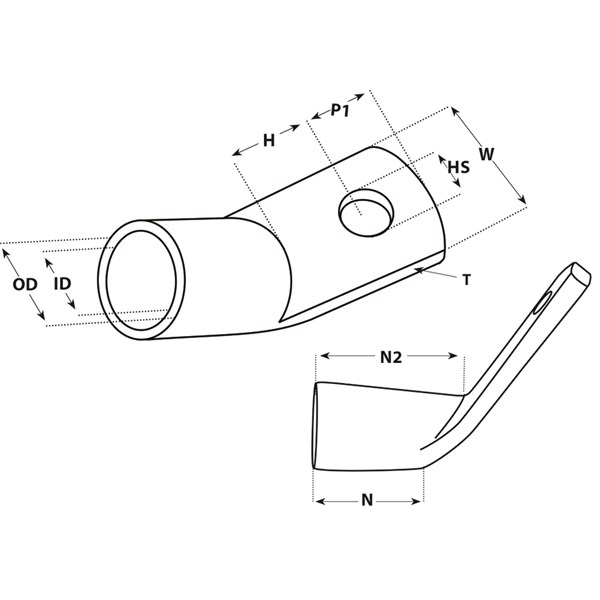

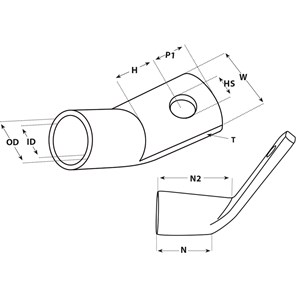

Inscriptions on the lugs neck can for ie be: 13
13 = Outside diameter of the neck (OD).

When crimping with hexagon dies neck inscription and die markings must conform.

Show item list

Technical properties

Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Insulated:
No
Max. current (Imax):
310 A, 395 A, 227 A
Number of mounting holes:
1 .
Flange shape:
Ring shape
Colour insulation:
Other
Slender flange model:
No
With sight-hole:
Yes
Conductor category:
Several
Max Temp:
150 °C
Surface protection:
Tinned
Material:
Copper
Connecting angle:
45°
Series:
KRT/KST(10-500mm2)

Show more

  • Total: 8

KRT 16-8 -45GR

Availability:
No

KRT 70-8 -45GR

Availability:
No

KRT 70-10 -45GR

Availability:
No

KRT 70-12 -45GR

Availability:
Yes

KRT 120-10 -45GR

Availability:
Yes

KRT 120-12 -45GR

Availability:
Yes

KRT 150-10 -45GR

Availability:
Yes

KRT 150-12 -45GR

Availability:
Yes
  • Total: 8
  • Total: 8
Product Description Availability
CABLE LUG KRT, -45GR 16mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M10
No
CABLE LUG KRT, -45GR 70mm2, M12
Yes
CABLE LUG KRT, -45GR 120mm2, M10
Yes
CABLE LUG KRT, -45GR 120mm2, M12
Yes
CABLE LUG KRT, -45GR 150mm2, M10
Yes
CABLE LUG KRT, -45GR 150mm2, M12
Yes
  • Total: 8
  • Total: 8
Product Description Availability
CABLE LUG KRT, -45GR 16mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M10
No
CABLE LUG KRT, -45GR 70mm2, M12
Yes
CABLE LUG KRT, -45GR 120mm2, M10
Yes
CABLE LUG KRT, -45GR 120mm2, M12
Yes
CABLE LUG KRT, -45GR 150mm2, M10
Yes
CABLE LUG KRT, -45GR 150mm2, M12
Yes
  • Total: 8
  • Total: 8
Product Description Availability
CABLE LUG KRT, -45GR 16mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M10
No
CABLE LUG KRT, -45GR 70mm2, M12
Yes
CABLE LUG KRT, -45GR 120mm2, M10
Yes
CABLE LUG KRT, -45GR 120mm2, M12
Yes
CABLE LUG KRT, -45GR 150mm2, M10
Yes
CABLE LUG KRT, -45GR 150mm2, M12
Yes
  • Total: 8
  • Total: 8
Product Description Availability
CABLE LUG KRT, -45GR 16mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M8
No
CABLE LUG KRT, -45GR 70mm2, M10
No
CABLE LUG KRT, -45GR 70mm2, M12
Yes
CABLE LUG KRT, -45GR 120mm2, M10
Yes
CABLE LUG KRT, -45GR 120mm2, M12
Yes
CABLE LUG KRT, -45GR 150mm2, M10
Yes
CABLE LUG KRT, -45GR 150mm2, M12
Yes
  • Total: 8
