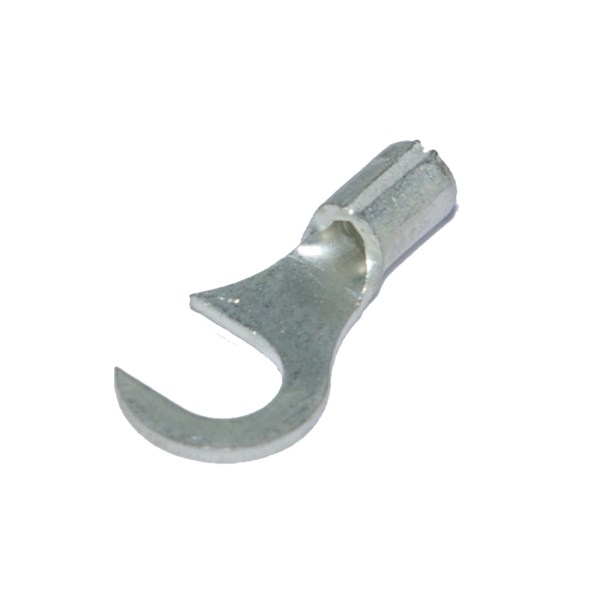

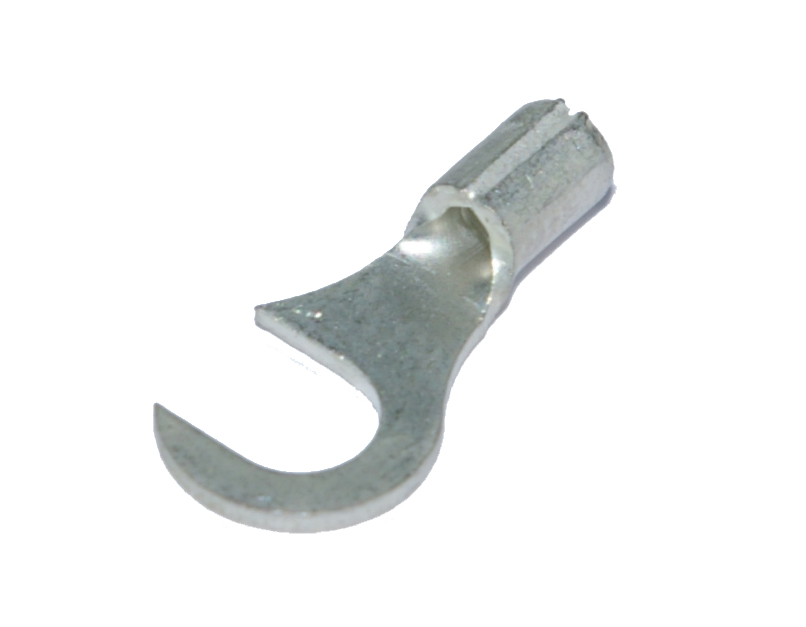

Krokkabelskor (svetsad)
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
Technical properties
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A
- Flange shape:
- Hook shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper
- Neck type:
- Welded
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
Dimensions
- Total: 1
| Product Description | MOQ | Unit | Bolt dimension (metric) | Nominal cross section | Availability | ||
|---|---|---|---|---|---|---|---|
| UNINSULATED HOOK TERMINAL 0.25-1.65mm2, M4 | 100 . | pcs | 4 . | 0.25-1.65 mm² |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
| Product Description | UL-File No. | Approved according to CE | With approval according to UL | Availability | ||
|---|---|---|---|---|---|---|
| UNINSULATED HOOK TERMINAL 0.25-1.65mm2, M4 | E42024 |
|
|
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
| Product Description | Reel/roll packaging | Max. current (Imax) | Flange shape | According to DIN | Insulation | Colour insulation | Sleeve form | Suitable for solid cores | Suitable for stranded conductors | Suitable for fine strand conductors | Suitable for high temperatures (to 650 °C) | Suitable for insulated varnish | Suitable for round conductors | Suitable for flat conductors | Surface protection | Operating temperature | Material | Neck type | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED HOOK TERMINAL 0.25-1.65mm2, M4 | No | 19 A | Hook shape | No | None | Other | Short | Yes | Yes | Yes | No | No | Yes | No | Tinned | -55-110 °C | Copper | Welded |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| UNINSULATED HOOK TERMINAL 0.25-1.65mm2, M4 | EC001052 - Solderless copper terminals for copper conductors | 9.0 |
|
Uninsulated Hook Terminals | JST, | B1543K |
Yes
|
|
|
- Total: 1
