KR - 0.75-6mm²

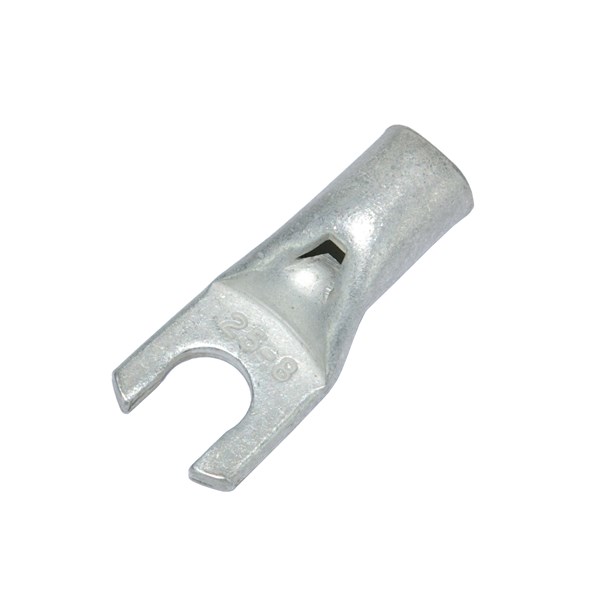

Fork terminals

Material: 99.9% pure copper
Surface: > 4µ Sn

Inscriptions on the lugs palm can for ie be: 4-6
4 = 4 wire // 6 = M6 stud size

Show item list

Technical properties

Suitable for Class 2 conductor:
Yes
Suitable for Class 5 conductor:
Yes
Suitable for Class 6 conductor:
Yes
Insulated:
No
Max. current (Imax):
22 A, 30 A, 40 A, 51 A
Number of mounting holes:
1 .
Flange shape:
Fork shape, Ring shape
Colour insulation:
Other
Slender flange model:
No
With sight-hole:
Yes
Conductor category:
Several
Max Temp:
150 °C
Surface protection:
Tinned
Material:
Copper
Connecting angle:
180° (horizontal)
Series:
KR/KS (0.75-6mm2)

Show more

  • Total: 6

1.5-4 G

Availability:
Yes

1.5-5 G

Availability:
Yes

1.5-6 G

Availability:
Yes

2.5-6 G

Availability:
Yes

4-4 G

Availability:
Yes

6-4 G

Availability:
Yes
  • Total: 6
  • Total: 6
Product Description Availability
CABLE LUG KR, SPADE 1.5mm2, M4
Yes
CABLE LUG KR, SPADE 1.5mm2, M5
Yes
CABLE LUG KR, SPADE 1.5mm2, M6
Yes
CABLE LUG KR, SPADE 2.5mm2, M6
Yes
CABLE LUG KR, SPADE 4.0mm2, M4
Yes
CABLE LUG KR, SPADE 6.0mm2, M4
Yes
  • Total: 6
  • Total: 6
Product Description Availability
CABLE LUG KR, SPADE 1.5mm2, M4
Yes
CABLE LUG KR, SPADE 1.5mm2, M5
Yes
CABLE LUG KR, SPADE 1.5mm2, M6
Yes
CABLE LUG KR, SPADE 2.5mm2, M6
Yes
CABLE LUG KR, SPADE 4.0mm2, M4
Yes
CABLE LUG KR, SPADE 6.0mm2, M4
Yes
  • Total: 6
  • Total: 6
Product Description Availability
CABLE LUG KR, SPADE 1.5mm2, M4
Yes
CABLE LUG KR, SPADE 1.5mm2, M5
Yes
CABLE LUG KR, SPADE 1.5mm2, M6
Yes
CABLE LUG KR, SPADE 2.5mm2, M6
Yes
CABLE LUG KR, SPADE 4.0mm2, M4
Yes
CABLE LUG KR, SPADE 6.0mm2, M4
Yes
  • Total: 6
  • Total: 6
Product Description Availability
CABLE LUG KR, SPADE 1.5mm2, M4
Yes
CABLE LUG KR, SPADE 1.5mm2, M5
Yes
CABLE LUG KR, SPADE 1.5mm2, M6
Yes
CABLE LUG KR, SPADE 2.5mm2, M6
Yes
CABLE LUG KR, SPADE 4.0mm2, M4
Yes
CABLE LUG KR, SPADE 6.0mm2, M4
Yes
  • Total: 6
