360 view
Product Properties
| Model | Plug |
|---|---|
| Max. current (Imax) | 24 A |
| Insulation | Not isolated |
| Colour insulation | Other |
| With cam clamp | No |
| With tap spreader | Yes |
| Surface protection | Galvanised |
| Operating temperature | -40-110 °C |
| Material | Steel |
| Packaging | Loose piece |

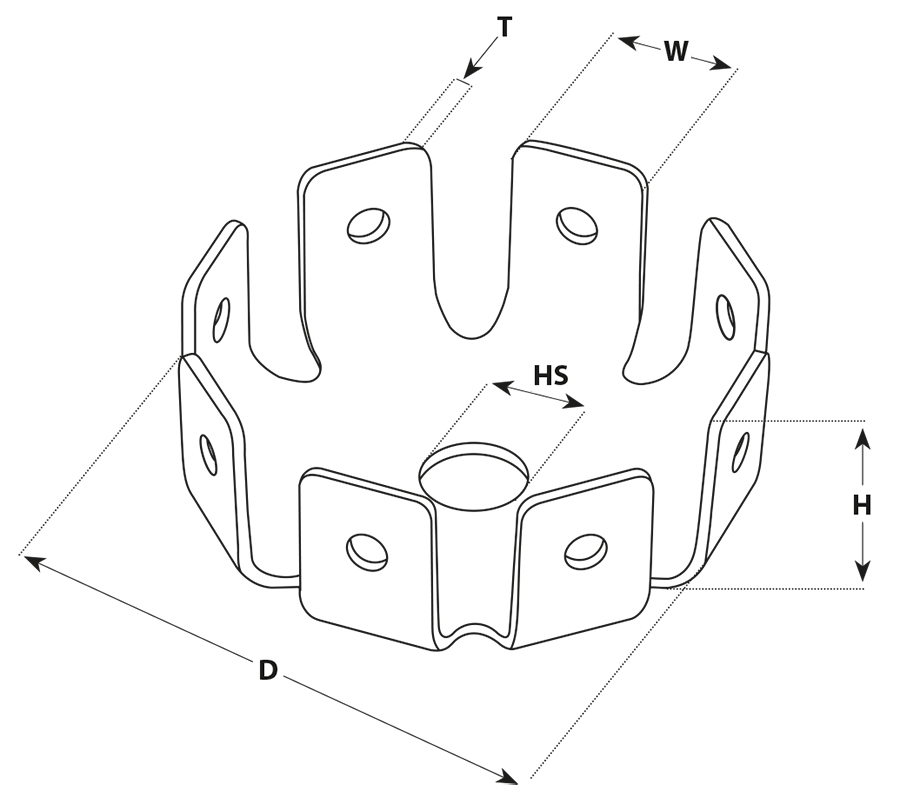

Dimensions
| D | 27 mm |
|---|---|
| H | 10.3 mm |
| HS | 5 mm |
| T | 0.8 mm |
| W | 6.6 mm |
| MOQ | 10 . |
| Unit | pcs |
| Nominal cross section | 0.14-6.64 mm² |
| Plug dimensions | Flat 6.3x0.8 mm |
Logistics
| Barcode | 733117616219 |
|---|---|
| Country of origin | CN |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | JP8-5 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Uninsulated Tab - Branches |
| Alternative SKU | JP8-5 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Iron and Steel Sanction | Compliance |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (Latest. 07 Nov 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN Export Control Code Number | EAR99 |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity GROUND TERMINAL JP8 - Series
Generate Datasheet:
