360 view
K 115

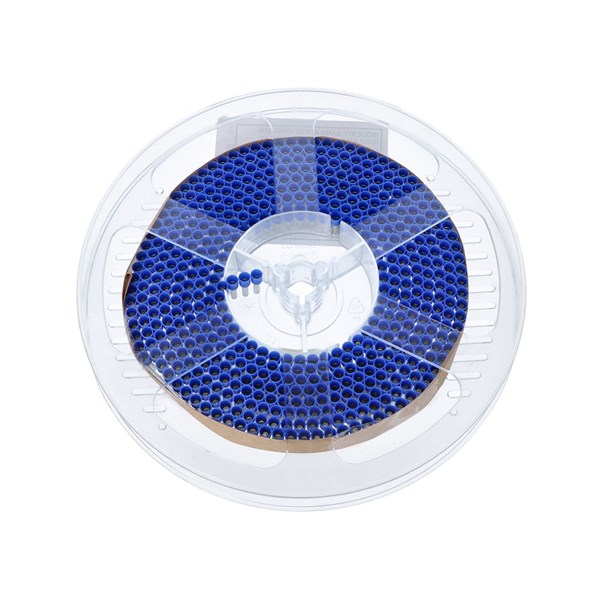

INSULATED END-SLEEVE, REEL, 0.75mm2-8 BLUE
K 115
- Availability:
-
No
- Total: 1
Related items
Cord end-sleeves on reel, K-serien
Roll diameter: 180 mm
Material: Tinned copper
Temperature range: <110º C (230º F)
Easy entry
DIN 46228-4:2020-03
- Total: 1
E0812760
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | Yes |
| Construction type | Single-sleeves |
| Colour | Blue |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CET/CTT (Telemeqanique) |
| Halogen free | Yes |
Dimensions
| ID | 1.2 mm |
|---|---|
| T | 0.15 mm |
| L | 14 mm |
| N | 8 mm |
| W | 2.8 mm |
| MOQ | 1100 . |
| Unit | pcs |
| Sleeve Length | 8 mm |
| AWG size | 20 |
| Total length | 14 mm |
| Nominal cross section | 0.75 mm² |
Logistics
| Barcode | 733117615784 |
|---|---|
| Country of origin | DE |
| E-no | E0812760 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1100 . |
| Stock code | K 115 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Insulated end-sleeves on tape/reel |
| Search Description | ENR2023V |
| Alternative SKU | K115 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
