S 230
INSULATED END-SLEEVE, TAPE, 1.5mm2-8 RED, 50st/TAPE, 10stTAPE/PAC
S 230
- Availability:
-
Yes
- Total: 1
Related items

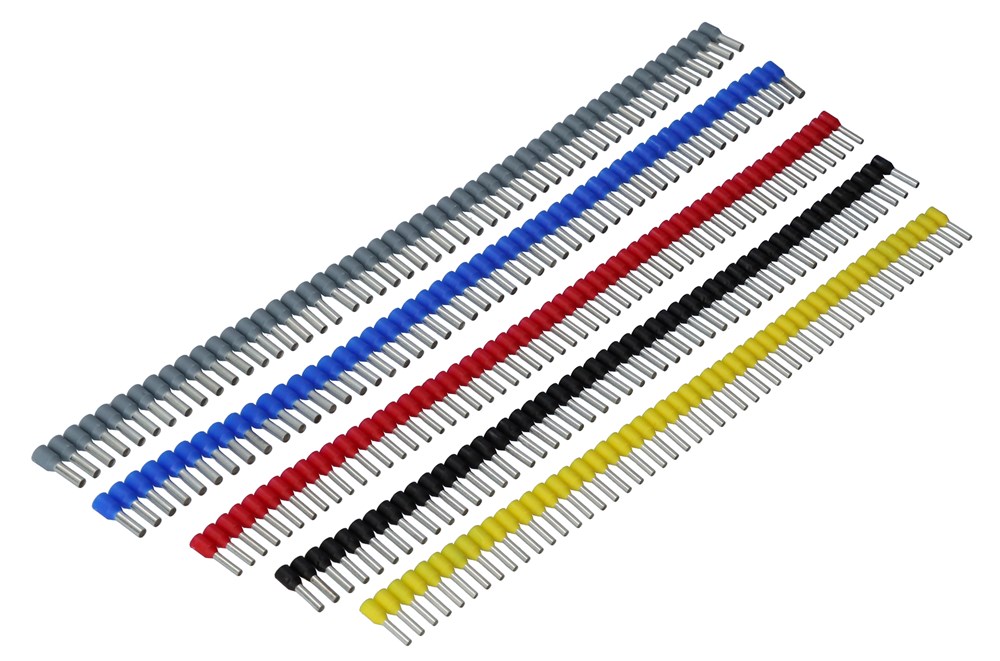

Cord end-sleeves on tape, S-serien
Material: Tinned copper
Temperature range: <110º C (230º F)
Easy entry
DIN 46228-4:2020-03
- Total: 1
E0870866
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | Yes |
| Construction type | Single-sleeves |
| Colour | Red |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CEW/CTW (Old German colorline) |
| Halogen free | Yes |
Dimensions
| ID | 1.7 mm |
|---|---|
| T | 0.15 mm |
| L | 14 mm |
| N | 8 mm |
| W | 3.5 mm |
| MOQ | 500 . |
| Unit | pcs |
| Sleeve Length | 8 mm |
| AWG size | 16 |
| Total length | 14 mm |
| Nominal cross section | 1.5 mm² |
Logistics
| Barcode | 733117615687 |
|---|---|
| Country of origin | DE |
| E-no | E0870866 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 500 . |
| Stock code | S 230 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Insulated end-sleeves on tape/reel |
| Alternative SKU | S230 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
Conflict Minerals Reporting Template Version 6.31_Approved
End sleeve Pull of requirements
Generate Datasheet:
