CED 007510-100

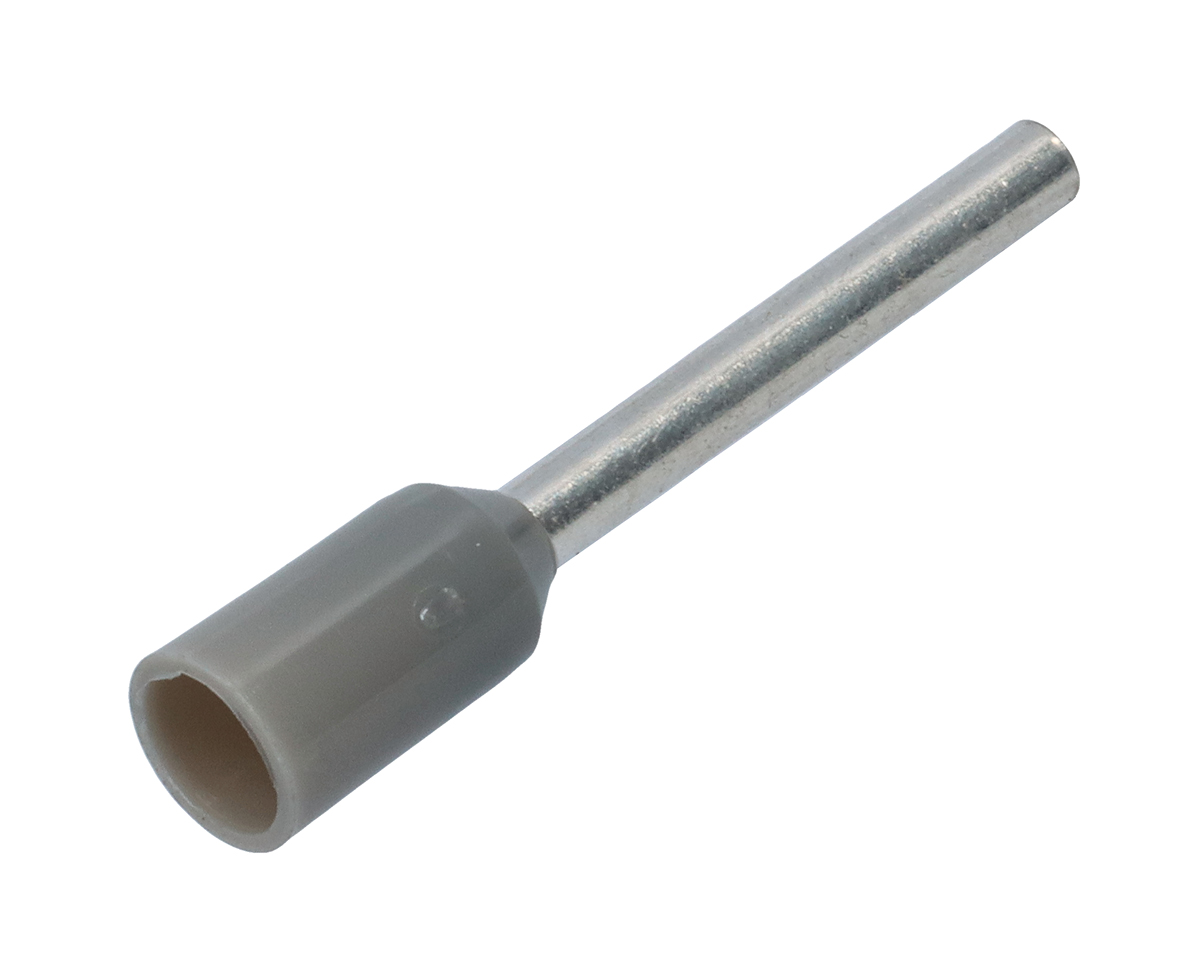

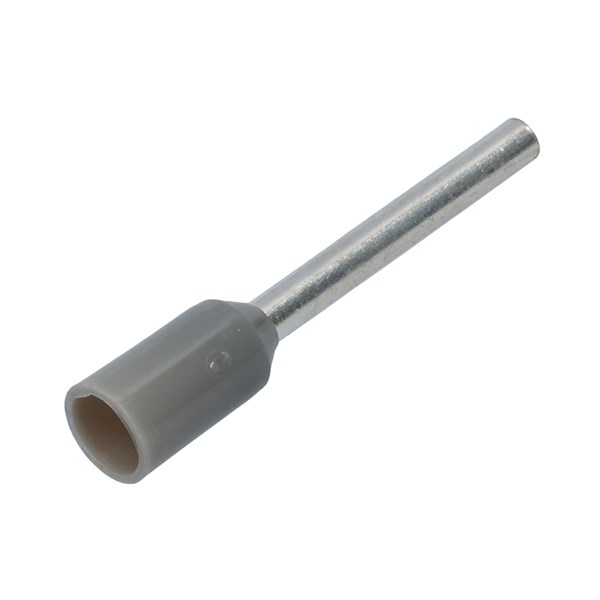

INSULATED END-SLEEVE, 0.75mm2-10 GREY
CED 007510-100
- Availability:
-
Yes
- Total: 1
Related items
Cord end-sleeves, CED-serien
Material: Tinned copper
Temperature range: Up to 110º C (230º F)
Easy entry
DIN 46228-4:2020-03
Colour code: DIN
- Total: 1
Product Properties
| Insulated | Yes |
|---|---|
| Reel/roll packaging | No |
| Construction type | Single-sleeves |
| Colour | Grey |
| Surface protection | Tinned |
| Material insulation | Polypropylene (PP) |
| Material | Copper |
| Colour code | CED/CTD (DIN) |
| Halogen free | Yes |
Dimensions
| ID | 1.2 mm |
|---|---|
| T | 0.15 mm |
| L | 16 mm |
| N | 10 mm |
| W | 2.8 mm |
| MOQ | 100 . |
| Unit | pcs |
| Sleeve Length | 10 mm |
| AWG size | 20 |
| Total length | 16 mm |
| Nominal cross section | 0.75 mm² |
Logistics
| Barcode | 733117615415 |
|---|---|
| Country of origin | DE |
| Gross weight (kg per unit) | 0.0001 kg |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Net weight (kg per unit) | 0.0001 kg |
| Stock code | CED 007510-100 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC000005 - Cable end sleeve |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Insulated single end-sleeves |
| Alternative SKU | CED007510-100 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| POPs | No POPs |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
